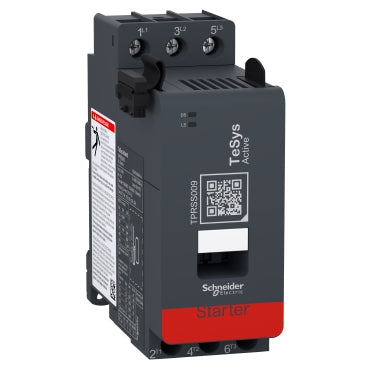

The Schneider Electric TPRSS009 is a TeSys island SIL direct-on-line motor starter (device short name TPRSS) rated 9 A (AC-3) at up to 440 V, for motors up to 4 kW at 380-415 V. Connected to a TPRBC bus coupler, it protects and monitors the load and, with a TPRSM module, provides a SIL 2 / PL d safe-stop function.
The 9 A AC-3 rating covers direct-on-line starting of motors up to 4 kW at 380-415 V, with the thermal overload adjustable from 0.18 to 9 A across trip classes 5 to 30 for motors with different starting profiles. Operation always requires connection to a TPRBC bus coupler, which supplies the 24 V DC control power and the fieldbus link back to the controller - this starter has no standalone control circuit of its own. Adding a TPRSM interface module and an external safety device unlocks IEC 61508 SIL 2 / ISO 13849-1 PL d category 2 safe-stop functions (category 0 or category 1 per IEC 60204-1). Pick a higher-current variant of this island starter for motors above 4 kW at 400 V.
| Range | TeSys |
|---|---|
| Product name | TeSys island |
| Device short name | TPRSS |
| Product or Component Type | SIL motor starter |
| Motor starter type | Direct on line |
| Device presentation | Direct starter connected to an automation controller through a bus coupler, Operational only when connected to a bus coupler |
| Function Available | Upstream voltage presence detection, Electrical line and load protection, Power and energy monitoring when connected with TPRVM voltage module, Safe stop function available when connected with a TPRSM module |
| Product compatibility | TPRBC bus coupler, TPRVM voltage interface module, TPRSM SIL interface module |
| Poles description | 3P 3 NO |
| Utilisation category | AC-1, AC-2, AC-3, AC-4, AC-3e |
| Motor power kW | 2.2 kW at 230 V 50 Hz (AC-3), 4 kW at 380...415 V 50 Hz (AC-3), 4 kW at 440 V 50 Hz (AC-3), 5.5 kW at 500 V 50 Hz (AC-3), 5.5 kW at 690 V 50 Hz (AC-3) |
| motor power HP (UL / CSA) | 0.33 hp at 120 V AC 60 Hz for 1 phase motors, 1 hp at 240 V AC 60 Hz for 1 phase motors, 2 hp at 208 V AC 60 Hz for 3 phase motors, 2 hp at 240 V AC 60 Hz for 3 phase motors, 5 hp at 480 V AC 60 Hz for 3 phase motors, 7.5 hp at 600 V AC 60 Hz for 3 phase motors |
| [Ue] rated operational voltage | <= 690 V AC 47...63 Hz |
| [Ie] rated operational current | 9 A (at <122 °F (50 °C)) at <= 440 V AC-3, 15 A (at <122 °F (50 °C)) at <= 440 V AC-1 |
| [Ith] conventional free air thermal current | 15 A (at 122 °F (50 °C)) |
| [Ui] rated insulation voltage | 690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Overvoltage category | III |
| Thermal protection adjustment range | 0.18…9 A |
| Thermal overload class | Class 5…30 |
| Reset | Remotely or automatically |
| Irms rated making capacity | 250 A at 440 V conforming to IEC 60947 |
| Rated breaking capacity | 250 A at 440 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 210 A 104 °F (40 °C) - 1 s, 105 A 104 °F (40 °C) - 10 s, 61 A 104 °F (40 °C) - 1 min, 30 A 104 °F (40 °C) - 10 min |
| Average impedance | 2.5 mOhm - Ith 15 A 50 Hz |
| Power dissipation per pole | 0.2 W AC-3 - Ith 9 A, 0.56 W AC-1 - Ith 15 A |
| [Uc] control circuit voltage | 24 V DC supplied by the bus coupler |
| Current consumption | 160 mA contactor sealed, 160 mA contactor closing |
| Power dissipation in W | 3.5 W at Ie AC-3 |
| Mechanical durability | 30 Mcycles |
|---|---|
| Electrical durability | 2 Mcycles 9 A AC-3 440 V, 1.2 Mcycles 15 A AC-1 440 V |
| Maximum operating rate | 3600 cyc/mn AC-3 |
| Operating time | < 100 ms closing, < 30 ms opening |
| Safety function | Safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module, Safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module |
| Safety integrity level | SIL 2 conforming to IEC 61508 in single channel system architecture, SILCL 2 conforming to IEC 62061 in single channel system architecture, PL = d category 2 conforming to ISO 13849-1 in single channel system architecture |
| Safety performance level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Protection type | Thermal overload protection, Motor overheat, Overcurrent, Undercurrent, Jam, Long start, Stall, Rapid cycle lockout, Rapid restart lockout, Phase sequence, Phase loss, Phase reversal, Phase unbalance, Ground current |
| Monitoring type | Time device ON, Time device switch ON, Number of faults, Number of switching cycles, Number of device power cycles, Average current Iavg, Average voltage Vavg, Max current Imax, Max voltage Vmax, Active and reactive power with voltage module, Active and reactive energy with voltage module, True power factor with voltage module |
| Local signalling | 1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status) |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1 |
| Product certifications | EAC, UL, CSA, CCC |
| Mounting mode | Horizontal and vertical 35 mm symmetrical DIN rail) |
| Connections - terminals | screw-clamp terminals 1 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)rigid, screw-clamp terminals 2 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)rigid, screw-clamp terminals 1 0.002…0.006 in² (1.5…4 mm²) 16 AWG...12 AWG)flexible without cable end, screw-clamp terminals 2 0.002…0.006 in² (1.5…4 mm²) 16 AWG...12 AWG)flexible without cable end, screw-clamp terminals 1 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)flexible with cable end, screw-clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) 16 AWG...14 AWG)flexible with cable end |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2 |
| Width | 1.8 in (45 mm) |
| Height | 4.6 in (116 mm) |
| Depth | 4.5 in (115 mm) |
| Net Weight | 1.446 lb(US) (0.656 kg) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with current derating |
| Relative Humidity | 5…95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Protective treatment | TC |
| Fire resistance | 1760 °F (960 °C) UL 94, 1562 °F (850 °C) IEC 60695-2-1, 1202 °F (650 °C) IEC 60695-2-12 |
| Shock resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Vibration resistance | 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6 |
| Part number | TPRSS009 |
|---|---|
| Type designation | TPRSS |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489832797 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.656 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated current of TPRSS is 9 A.
The rated operational voltage of TPRSS is 440 V AC.
The rated motor power of TPRSS is 4 kW.
The tariff (HS) code on file for TPRSS is 853650.
The EAN (GTIN) of TPRSS is 3606489832797.
TPRSS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
