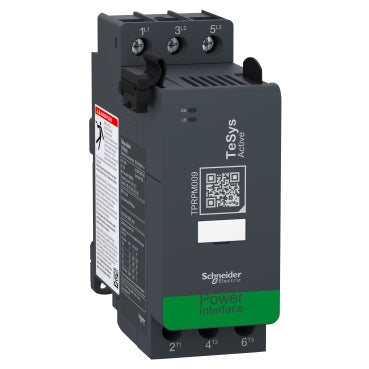

The Schneider Electric TPRPM009 is a TeSys island power module (device short name TPRPM) rated 9 A (AC-3) at up to 440 V, sized for motors up to 4 kW at 380-415 V. Connected to a TPRBC bus coupler, it delivers electronic thermal overload protection and current/voltage monitoring, and controls third-party power switching devices when paired with a TPRDG digital IO module.
The 9 A AC-3 rating covers monitoring and protection of motors up to 4 kW at 380-415 V, with the thermal overload adjustable from 0.18 to 9 A across trip classes 5 to 30. Unlike the island's motor starters, the TPRPM009 carries no rated making or breaking capacity of its own - it is a protection and monitoring interface, and switching the load itself requires an external power device controlled through a paired TPRDG digital IO module. Current consumption of only 60 mA and 0.6 W dissipation at Ie keep its share of the island's 24 V DC bus coupler power budget small. Choose a higher-current variant of this power module when monitoring and protecting a motor above 4 kW at 400 V.
| Range of Product | TeSys |
|---|---|
| Product name | TeSys island |
| Device short name | TPRPM |
| Product or Component Type | Power module |
| Device presentation | Power module connected to an automation controller through a bus coupler, Operational only when connected to a bus coupler |
| Function Available | Upstream voltage presence detection, Electronic thermal overload protection, Monitoring of currents, Control of third party power devices when associated to TPRDG IO module |
| Product compatibility | TPRBC bus coupler, TPRDG digital IO module, TPRAN analog IO module |
| Poles description | 3P |
| Motor power kW | 2.2 kW at 230 V AC 50 Hz, 4 kW at 380...415 V AC 50 Hz, 4 kW at 440 V AC 50 Hz, 5.5 kW at 500 V AC 50 Hz, 5.5 kW at 690 V AC 50 Hz |
| motor power HP (UL / CSA) | 0.33 hp at 120 V AC 60 Hz for 1 phase motors, 1 hp at 240 V AC 60 Hz for 1 phase motors, 2 hp at 208 V AC 60 Hz for 3 phase motors, 2 hp at 240 V AC 60 Hz for 3 phase motors, 5 hp at 480 V AC 60 Hz for 3 phase motors, 7.5 hp at 600 V AC 60 Hz for 3 phase motors |
| [Ue] rated operational voltage | <= 690 V AC 47...63 Hz |
| [Ie] rated operational current | 9 A (at <122 °F (50 °C)) at <= 440 V AC-3, 15 A (at <122 °F (50 °C)) at <= 440 V AC-1, 15 A (at <122 °F (50 °C)) AC-3e |
| [Ith] conventional free air thermal current | 15 A (at 122 °F (50 °C)) |
| [Ui] rated insulation voltage | 690 V IEC 60947-4-1, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Overvoltage category | III |
| Thermal protection adjustment range | 0.18…9 A |
| Thermal overload class | Class 5…30 |
| Reset | Remotely or automatically |
| [Uc] control circuit voltage | 24 V DC supplied by the bus coupler |
| Current consumption | 60 mA |
| Power dissipation in W | 0.6 W at Ie AC-3 |
| Protection type | Thermal overload protection, Motor overheat, Overcurrent, Undercurrent, Jam, Long start, Stall, Rapid cycle lockout, Phase loss, Rapid restart lockout, Phase reversal, Phase unbalance, Phase sequence, Ground current |
|---|---|
| Monitoring type | Time device ON, Number of faults, Number of device power cycles, Average current Iavg, Average voltage Vavg, Max current Imax, Max voltage Vmax |
| Local signalling | 1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status) |
| Standards | EN/IEC 60947-1, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1 |
| Product certifications | CCC, CSA, EAC, UL |
| Mounting mode | Horizontal and vertical 35 mm symmetrical DIN rail) |
| Connections - terminals | screw-clamp terminals 1 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)rigid, screw-clamp terminals 2 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)rigid, screw-clamp terminals 1 0.002…0.006 in² (1.5…4 mm²) 16 AWG...12 AWG)flexible without cable end, screw-clamp terminals 2 0.002…0.006 in² (1.5…4 mm²) 16 AWG...12 AWG)flexible without cable end, screw-clamp terminals 1 0.002…0.006 in² (1…4 mm²) 16 AWG...12 AWG)flexible with cable end, screw-clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) 16 AWG...14 AWG)flexible with cable end |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm, 15.05 lbf.in (1.7 N.m) Philips No 2 |
| Width | 1.8 in (45 mm) |
| Height | 4.8 in (121 mm) |
| Depth | 4.5 in (115 mm) |
| Net Weight | 0.562 lb(US) (0.255 kg) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) |
|---|---|
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating, 122…140 °F (50…60 °C) with current derating |
| Relative Humidity | 5…95 % |
| Operating altitude | 0...6561.68 ft (0...2000 m) without derating |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Protective treatment | TC |
| Fire resistance | 1760 °F (960 °C) UL 94, 1562 °F (850 °C) IEC 60695-2-1, 1202 °F (650 °C) IEC 60695-2-12 |
| Shock resistance | 15 gn 11 ms) IEC 60068-2-27 |
| Vibration resistance | 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4, Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6 |
| Part number | TPRPM009 |
|---|---|
| Type designation | TPRPM |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606489832841 |
| Warranty (in months) | 18 |
|---|
| Country of origin | FR |
|---|---|
| Shipping weight | 0.255 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
