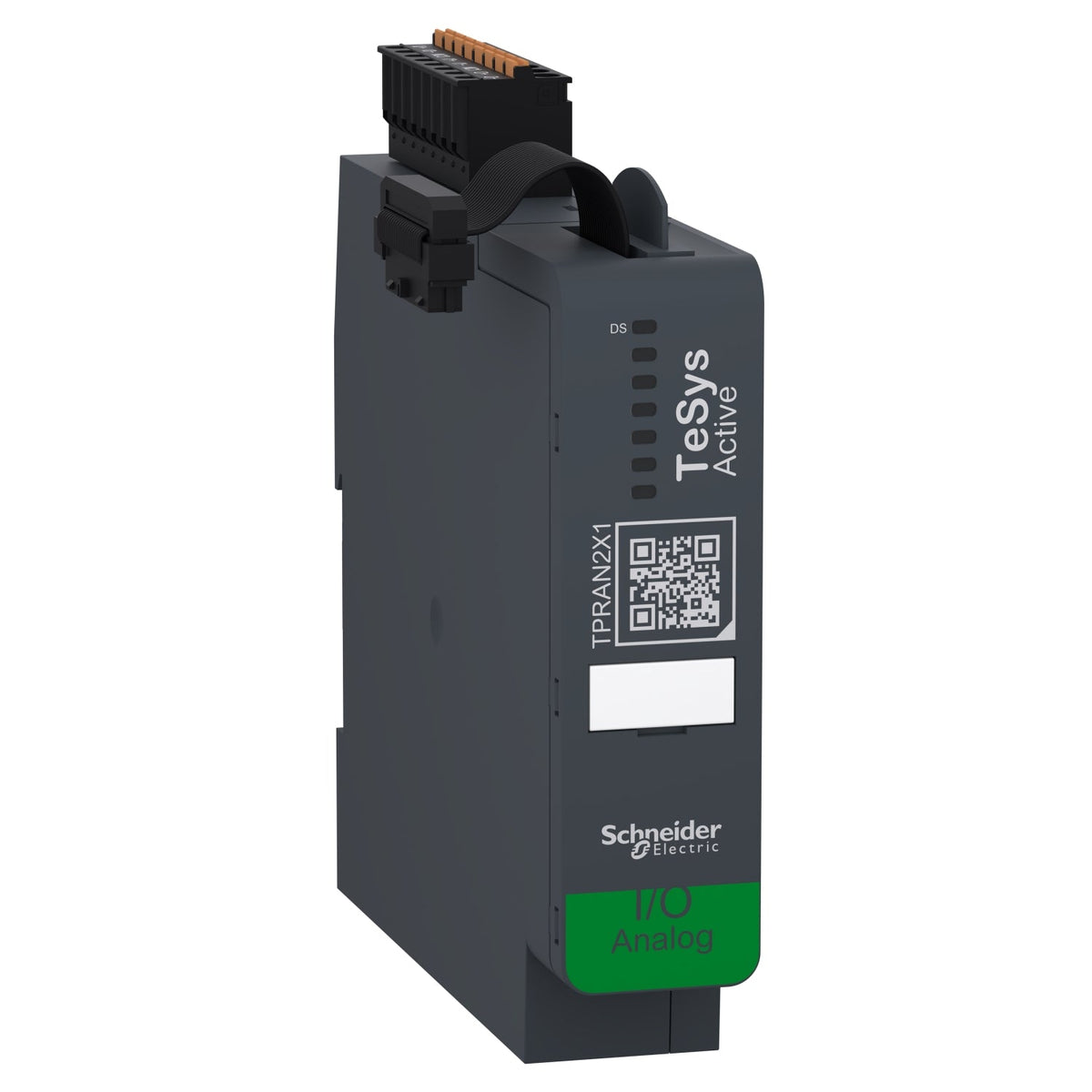

Schneider Electric TPRAN2X1 TeSys Island Analog IO Module 2 Inputs 1 Output Motor Starter Module

The Schneider Electric TPRAN2X1 is a TeSys Island analog IO module with 2 configurable analog inputs and 1 configurable analog output, supplied with 2

Range
TeSys
Product name
TeSys island
Device short name
TPRAN
Product or Component Type
Analog IO module
Device presentation
IO module providing 2 analog inputs and 1 analog output, Enabling advanced control functions in a TeSys island system, Operational only when connected to a bus coupler TPRBC
Function of module
Measurement of voltage, current or temperature on 2 configurable analog inputs, Driving voltage or current source on 1 configurable analog output
EAN
3606489832902
Description

About the TPRAN

The Schneider Electric TPRAN2X1 is a TeSys Island analog IO module with 2 configurable analog inputs and 1 configurable analog output, supplied with 24 V DC from the bus coupler. It connects to a TPRBC bus coupler to enable advanced control functions (TeSys avatars) within a TeSys island configuration.

Certifications & Standards

  • CSA
  • UL
  • IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201

Selection Notes

Add the TPRAN2X1 to a TeSys island configuration when the application needs analog measurement or control beyond the motor-starter modules themselves, such as process temperature or 4-20 mA sensor inputs; it is only operational when connected to a TPRBC bus coupler.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Main 17

Range TeSys
Product name TeSys island
Device short name TPRAN
Product or Component Type Analog IO module
Device presentation IO module providing 2 analog inputs and 1 analog output, Enabling advanced control functions in a TeSys island system, Operational only when connected to a bus coupler TPRBC
Function of module Measurement of voltage, current or temperature on 2 configurable analog inputs, Driving voltage or current source on 1 configurable analog output
Product compatibility TPRBC bus coupler
Analogue input number 2 isolated with common point
Analogue input type Current 4...20 mA, Current 0...20 mA, Voltage 0...10 V, Voltage - 10...10 V, Temperature probe - 60...180 °C Ni 100, Temperature probe - 60...180 °C Ni 1000, Temperature probe -200...+850 °C Pt 100, Temperature probe - 200...600 °C Pt 1000, Thermocouple - 200...1000 °C thermocouple J, Thermocouple - 200...1300 °C thermocouple K, Thermocouple 0...1760 °C thermocouple R, Thermocouple 0...1760 °C thermocouple S, Thermocouple 0...1820 °C thermocouple B, Thermocouple - 200...400 °C thermocouple T, Thermocouple - 200...1300 °C thermocouple N, Thermocouple - 200...800 °C thermocouple E, Thermocouple 0...2315 °C thermocouple C
Measurement accuracy +/- 0.1 % of full scale voltage 77 °F (25 °C), +/- 0.1 % of full scale current 77 °F (25 °C), +/- 0.1 % of full scale temperature probe 77 °F (25 °C), +/- 0.1 % of full scale in positive temperature range thermocouple 77 °F (25 °C), +/- 0.4 % of full scale in negative temperature range thermocouple 77 °F (25 °C)
Analogue input resolution 15 bits + sign full scale
Input impedance <= 50 Ohm current, >= 1 MOhm voltage, >= 1 MOhm thermocouple, >= 1 MOhm temperature probe
Analogue output number 1 isolated
Analogue output type Current 4...20 mA, Current 0...20 mA, Voltage 0...10 V, Voltage - 10...10 V
Analogue output resolution 12 bits, 4...20 mA full scale, 12 bits, 0...20 mA full scale, 12 bits, 0...10 V full scale, 11 bits + sign, - 10...10 V full scale
Type of cable Twisted shielded pairs cable <98.4 ft (30 m) input/output
Local signalling 1 LED (green/red) for DS (device status)

Complementary 12

[Us] rated supply voltage 24 V DC supplied by the bus coupler
Current consumption 160 mA
Power dissipation in W 0.5 W maximum
[Uimp] rated impulse withstand voltage 0.5 kV IEC 61010-1
Standards IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201
Product certifications CSA, UL, EAC (pending)
Mounting mode Horizontal and vertical 35 mm symmetrical rail)
Connections - terminals Input/output circuit removable spring terminal block 8 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)rigid, Input/output circuit removable spring terminal block 8 0.0003…0.004 in² (0.2…2.5 mm²) 24 AWG...14 AWG)flexible without cable end, Input/output circuit removable spring terminal block 8 0.0004…0.004 in² (0.25…2.5 mm²) 22 AWG...14 AWG)flexible with cable end
Width 1.0 in (25 mm)
Height 4.6 in (118 mm)
Depth 4.5 in (114 mm)
Net Weight 0.379 lb(US) (0.172 kg)

Environment 11

Ambient air temperature for storage -13…158 °F (-25…70 °C)
Ambient Air Temperature for Operation 14…140 °F (-10…60 °C)
Relative Humidity 5…95 %
Operating altitude 0...6561.68 ft (0...2000 m) without derating
IP degree of protection IP20
Pollution degree 2
Protective treatment TC
Fire resistance 1760 °F (960 °C) UL 94
Shock resistance 15 gn 11 ms) IEC 60068-2-27
Vibration resistance 1.5 mm peak to peak 3…13 Hz) IEC 60068-2-6, 1 gn 13…200 Hz) IEC 60068-2-6
Electromagnetic compatibility Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3, Fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4, Surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Show all 54 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number TPRAN2X1
Type designation TPRAN
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606489832902

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.172 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
