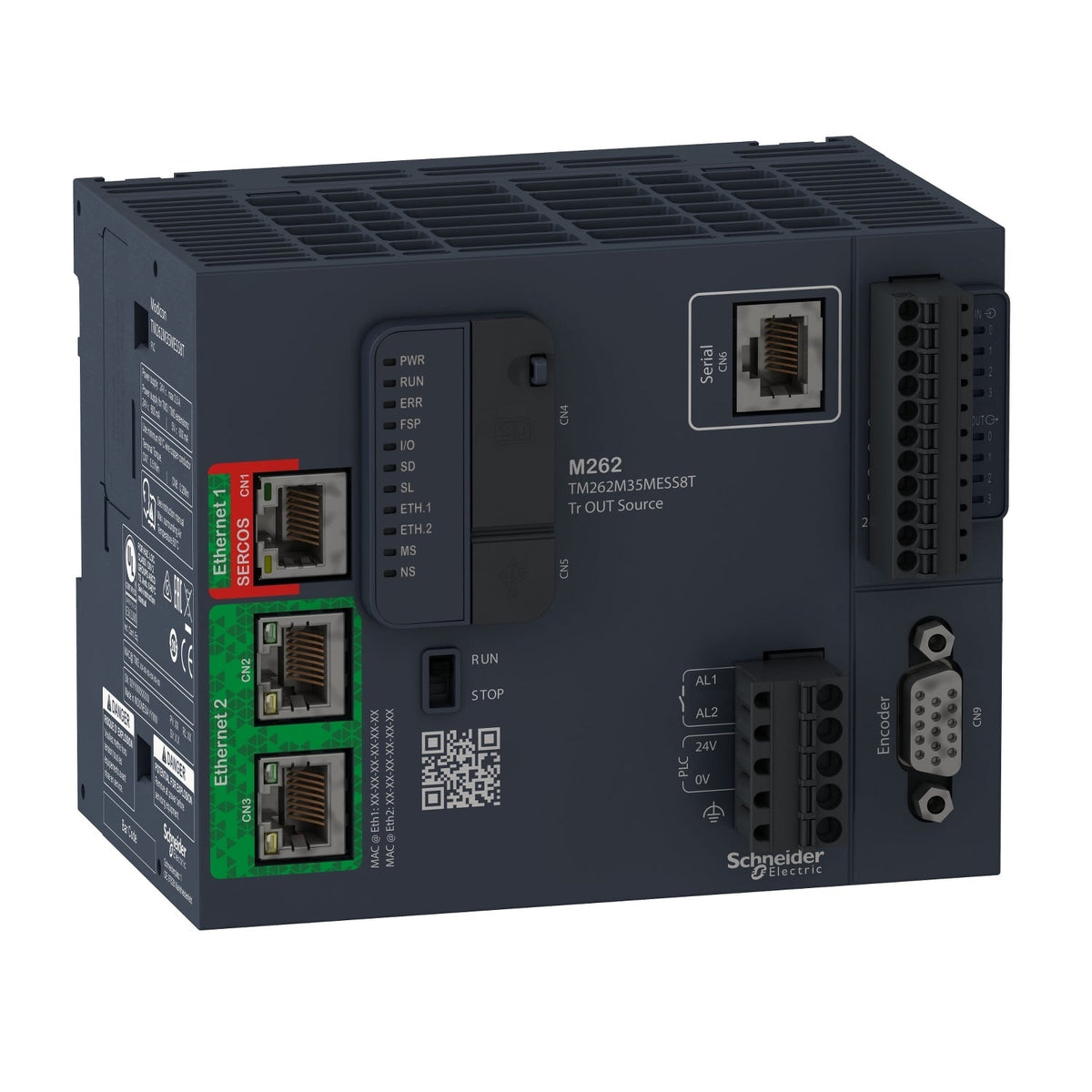

Schneider Electric TM262M35MESS8T Modicon M262 24-Axis Sercos Motion Controller

The Schneider Electric TM262M35MESS8T is a Modicon M262 motion controller reaching 3 ns per instruction, coordinating up to 24 synchronized axes over a Sercos III motion bus with an embedded SIL3 safety application. It adds 8 fast digital I/O, one incremental encoder input and dual Ethernet (EtherNet/IP, Modbus TCP) on a 24 V DC supply, targeting complex multi-axis machines needing integrated logic, extensive motion and safety in a single controller.

Technical Specifications

Certifications & Standards

• CE
• cULus
• cULus HazLoc Class I Division 2
• RCM
• EAC
• Achilles
• KC
• UL 61010-1
• UL 61010-2-201
• CSA C22.2 No 61010-1
• CSA C22.2 No 61010-2-201
• CSA C22.2 No 213
• ANSI/ISA 12-12-01
• IEC 61131-2

Selection Notes

Choose the TM262M35MESS8T over lower-axis-count motion variants when the machine coordinates up to 24 synchronized Sercos axes — the same 3 ns/instruction performance and SIL3 safety application as the mid-range motion controller, but sized for larger multi-axis architectures. A lower-axis variant in the same M262 range is sufficient, and more cost-effective, when the application needs only a handful of synchronized axes.
