Part number
RM35UA11MW
$146.74 On request Dispatch — · From TürkiyeGet a Quote
Harmony Control Relays

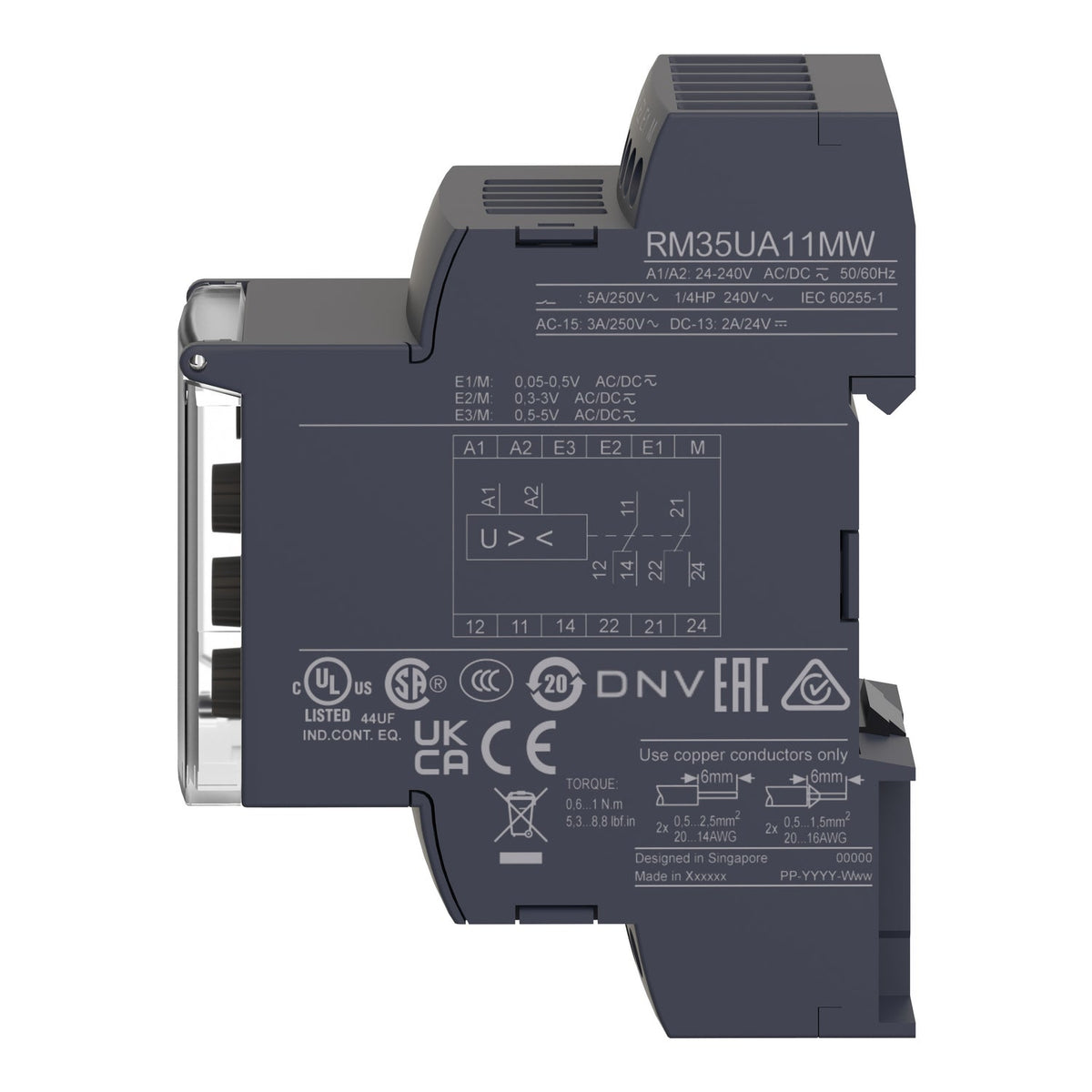

Schneider Electric RM35UA11MW Harmony Voltage Control Relay 5A 2CO 0.05-5V AC/DC 24-240V Control Relay

Harmony voltage control relay, 0.05-5V AC/DC measurement, 24-240V AC/DC supply, 2 CO 5A.

Rated current
5 A
Rated operational voltage
24–240–DC V DC
EAN
3389119405294
Description

About the RM35UA11MW

The Schneider Electric RM35UA11MW is a Harmony RM35-U multifunction voltage control relay, measuring a 0.05-5 V AC/DC signal for overvoltage or undervoltage conditions while powered from a 24-240 V AC/DC supply. It switches two 5 A changeover contacts with an adjustable 0.3-30 second fault delay, in a 35 mm wide DIN rail housing.

Certifications & Standards

  • GOST
  • CSA
  • GL
  • UL
  • C-tick
  • IEC 60255-6

Selection Notes

RM35UA11MW's 0.05-5 V measurement range is sized for low-level signals straight off a current-transformer burden resistor or a voltage-divider tap, well below mains level. Where the signal to monitor is a 1-100 V sensor or transformer secondary instead, the RM35UA12MW sibling covers that band on the same 24-240 V AC/DC supply and 2 C/O 5 A output, and the RM35UA13MW extends to 15-600 V for direct mains-level monitoring - all three share one housing so the choice is purely the input range needed. Reliability data rates the RM35UA family at B10d = 290,000 operations and an MTTFd of 308.2 years, the same figures across the 0.05-5 V, 1-100 V and 15-600 V variants since all three share the same output stage and mechanical contacts.

Specification

Full specification

72 values · Last verified 30 Oct 2026

Main 7

Range of Product Harmony Control Relays
Relay Type Multifunction voltage control relay
Product or Component Type Voltage control relay
Relay name RM35UA
Relay monitored parameters Overvoltage or undervoltage detection
Control Type Without test button
Contacts type and composition 2 C/O

Complementary 28

[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz, non self-powered
Supply voltage limits 20.4…264 V AC/DC
Power consumption in VA 0…3.5 VA AC
Measurement range 0.05...5 V AC/DC
Maximum measuring cycle 30 ms measurement cycle as true rms value
Hysteresis 5…50 % threshold setting
Repeat accuracy +/- 0.5 % input and measurement circuit, +/- 2 % time delay
Measurement error +/- 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Time delay type Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault
Setting accuracy of time delay 10 %
Reset time 1500 ms time delay
Power on delay 600 ms
Output contacts 2 C/O
nominal output current 5 A
Maximum switching voltage 250 V AC/DC
Switching capacity in VA 1250 VA
Minimum switching current 10 mA 5 V DC
Maximum switching current 5 A AC/DC
Electrical durability 100000 cycles
Mechanical durability 30000000 cycles
operating voltage tolerance - 15 % + 10 % Un
Maximum power consumption in W 0.6 W DC
Control circuit frequency 40...70 Hz +/- 10 %
Resistance across terminals 30 mOhm E2-M terminals, 5 mOhm E1-M terminals, 50 mOhm E3-M terminals
Measurement accuracy +/- 10 % of the full scale value
Polarity Non reversible polarity on DC supply
Quality labels CE
Threshold setting 10...100 %

Environment 24

Electromagnetic compatibility Emission standard for industrial environments conforming to IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Standards IEC 60255-6
Product Certifications GOST, CSA, GL, UL, C-tick
Directives 73/23/EEC - low voltage directive, 89/336/EEC - electromagnetic compatibility
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C), -40…158 °F (-40…70 °C)
Ambient air temperature for operation -4…122 °F (-20…50 °C)
Relative humidity 95 % 131 °F (55 °C) IEC 60068-2-30
IP degree of protection IP20 IEC 60529 terminals), IP30 IEC 60529 casing)
Pollution degree 3 IEC 60664-1
Overvoltage category III conforming to IEC 60664-1
Dielectric test voltage 2 kV AC 50 Hz, 1 min IEC 60255-5
Insulation resistance > 500 MOhm 500 V DC between supply and relay output IEC 60255-5
[Ui] rated insulation voltage 250 V IEC 60664-1
Operating position Any position without derating
Connections - terminals Screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable end, Screw terminals, 1 x 0.2...2 x 2.5 mm² 24 AWG...12 AWG) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end
Tightening torque 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material Polycarbonate
Local signalling LED (green) for power ON, LED (yellow) for relay ON
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Reliability data B10d = 290000, MTTFd = 308.2 years
Height 3.5 in (90 mm), 3.5 in (88.9 mm)
Width 1.4 in (35 mm), 1.4 in (35.6 mm)
Depth 2.8 in (72 mm), 2.8 in (71.1 mm)
Net Weight 0.29 lb(US) (0.13 kg), 0.29 lb(US) (0.13 kg)
Show all 72 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RM35UA11MW
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119405294

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.13 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RM35UA11MW

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60255-6
Quick answers

Questions about the RM35UA11MW

What is the rated current of RM35UA11MW?

The rated current of RM35UA11MW is 5 A.

Which supply voltage is RM35UA11MW rated for?

The rated operational voltage of RM35UA11MW is 24–240–DC V DC.

What is the HS code of RM35UA11MW for customs?

The tariff (HS) code on file for RM35UA11MW is 853649.

What is the EAN of RM35UA11MW?

The EAN (GTIN) of RM35UA11MW is 3389119405294.

Where does RM35UA11MW ship from, and how fast?

RM35UA11MW ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
