Part number
RM35LM33MW
$88.24 On request Dispatch — · From TürkiyeGet a Quote
Harmony Control Relays

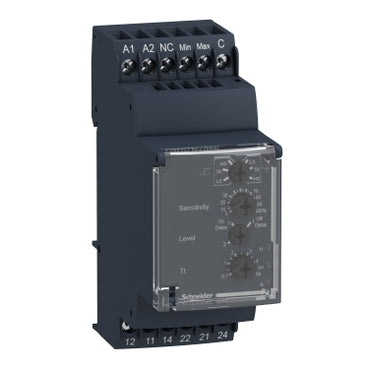

Schneider Electric RM35LM33MW Harmony RM35L 5A 2CO Level Control 24-240V AC/DC Control Relay

Harmony RM35L level control relay, resistive probe detection, 3-phase, 2 C/O 5A output, 24-240V AC/DC.

Rated current
5 A
Rated operational voltage
24–240–DC V DC
EAN
3389119405232
Description

About the RM35LM33MW

The Schneider Electric RM35LM33MW is a Harmony RM35L level control relay that detects liquid level via resistive probes in 3-phase-supplied installations and switches 2 C/O contacts rated 5 A. It runs from a universal 24-240 V AC/DC 50/60 Hz supply, offers an adjustable 0.1-5 second fault time delay, and mounts on 35 mm DIN rail.

Certifications & Standards

  • CE
  • CSA
  • GL
  • UL
  • C-tick
  • GOST
  • IEC 60255-6

Selection Notes

RM35LM33MW monitors liquid level via resistive probes on 3-phase-supplied installations, using the same LS/St/HS sensitivity scale (0.25 kOhm to 1000 kOhm) and 100 m probe cable limit as the other Harmony RM35 measurement relays, so probes sized for one RM35 part carry over to another. Its 0.1-5 s fault time delay is short enough for fast dry-run alarms, and the 2 C/O output at 5 A lets one contact drive an alarm circuit while the other trips the load.

Specification

Full specification

70 values · Last verified 30 Oct 2026

Main 13

Range of Product Harmony Control Relays
Relay Type Level control relay
Product or Component Type Level control relay
Relay name RM35L
Relay monitored parameters Detection by resistive probes
time delay Adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault
Switching capacity in VA 1250 VA
Minimum switching current 10 mA 5 V DC
Maximum switching current 5 A AC/DC
power consumption 5 VA AC
Measurement range 250 Ohm...1 MOhm
Utilisation category AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1
Contacts type and composition 2 C/O

Complementary 34

Reset time 1750 ms
Maximum switching voltage 250 V AC/DC
[Un] rated nominal voltage 24...240 V AC/DC 50/60 Hz, non self-powered
Supply voltage limits 20.4…264 V AC/DC
operating voltage tolerance - 15 % + 10 % Un
power consumption 1.5 W DC
Output contacts 2 C/O
nominal output current 5 A
delay at power up 0.6 s
Measurement accuracy +/- 10 % of the full scale value, +/- 20 % for the HS range
Repeat accuracy +/- 2 % time delay
Measurement error 0.5 %/°C with temperature variation
Maximum cable distance between devices 328.08 ft (100 m)
Sensitivity scale 0.25...5 kOhm LS (Low Sensitivity), 5...100 kOhm St (Standard Sensitivity), 50...1000 kOhm HS (High Sensitivity)
Sensitivity adjustment 5…100 %
Maximum supply current for sensors 1 mA
Cable capacitance 1 nF HS (High Sensitivity) probe cable, 2.2 nF St (Standard Sensitivity) probe cable, 4.7 nF LS (Low Sensitivity)
Marking CE : 73/23/EEC, CE : EMC 89/336/EEC
Overvoltage category III conforming to IEC 60664-1
Insulation resistance > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
[Ui] rated insulation voltage 250 V IEC 60664-1
Operating position Any position without derating
Connections - terminals Screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable end
Tightening torque 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material Polycarbonate
Local signalling LED (yellow) for relay ON, LED (green) for power ON, LED (yellow) for timer ON
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Electrical durability 100000 cycles
Mechanical durability 30000000 cycles
Operating rate <= 360 operations/hour full load
Measurement range 0.25...1000 kOhm
Safety reliability data B10d = 170000, MTTFd = 182.6 years
Width 1.4 in (35 mm)
Control Type Without test button

Environment 10

Immunity to microbreaks 100 ms DC, 90 ms AC
Electromagnetic compatibility Emission standard for industrial environments conforming to IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Standards IEC 60255-6
Product Certifications CSA, GL, UL, C-tick, GOST
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient air temperature for operation -4…122 °F (-20…50 °C)
Relative humidity 95 % 131 °F (55 °C) IEC 60068-2-30
IP degree of protection IP20 IEC 60529 terminals), IP30 IEC 60529 casing)
Pollution degree 3 IEC 60664-1
Dielectric test voltage 2 kV AC 50 Hz, 1 min IEC 60255-5, 2 kV AC 50 Hz, 1 min IEC 60664-1
Show all 70 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RM35LM33MW
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119405232

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.134 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RM35LM33MW

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60255-6
Quick answers

Questions about the RM35LM33MW

What is the rated current of RM35LM33MW?

The rated current of RM35LM33MW is 5 A.

Which supply voltage is RM35LM33MW rated for?

The rated operational voltage of RM35LM33MW is 24–240–DC V DC.

What is the HS code of RM35LM33MW for customs?

The tariff (HS) code on file for RM35LM33MW is 85364900.

What is the EAN of RM35LM33MW?

The EAN (GTIN) of RM35LM33MW is 3389119405232.

Where does RM35LM33MW ship from, and how fast?

RM35LM33MW ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
