Part number
RM35JA32MW
$161.29 On request Dispatch — · From TürkiyeGet a Quote
Harmony Control Relays

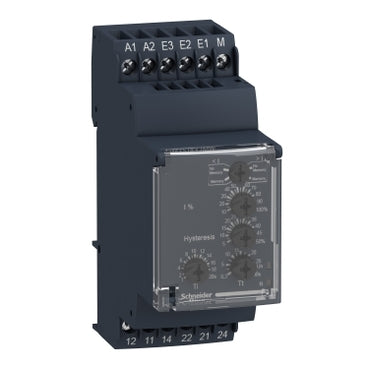

Schneider Electric RM35JA32MW Harmony RM35JA 5A 2CO 0.15-15A 24-240V AC/DC Control Relay

Harmony RM35JA current control relay, overcurrent/undercurrent 0.15-15A, 2 C/O 5A output, 24-240V AC/DC.

Rated current
5 A
Rated operational voltage
24–240–DC V DC
EAN
3389119405225
Description

About the RM35JA32MW

The Schneider Electric RM35JA32MW is a Harmony RM35JA current control relay that detects overcurrent or undercurrent on single-phase circuits from 150 mA to 15 A. It switches 2 C/O contacts rated 5 A from a universal 24-240 V AC/DC 50/60 Hz supply and mounts on 35 mm DIN rail. Threshold and hysteresis are field-adjustable.

Certifications & Standards

  • CE
  • GL
  • UL
  • GOST
  • C-tick
  • CSA
  • IEC 60255-6

Selection Notes

RM35JA32MW's 150 mA-15 A measurement window spans light-load to full-load single-phase currents, so the same part covers small fan motors and larger single-phase pumps by adjusting the threshold (10-100%) and hysteresis (5-50%) rather than swapping relays. Its 2 C/O output, versus RM35BA10's single contact, lets one contact drive an alarm circuit while the other trips the load contactor. The startup inhibition delay (1-20 s) rides through motor inrush before undercurrent tripping is armed.

Specification

Full specification

72 values · Last verified 30 Oct 2026

Main 7

Range of Product Harmony Control Relays
Relay Type Current control relay
Product or Component Type Current control relay
Relay name RM35JA
Relay monitored parameters Overcurrent or undercurrent detection
Control Type Without test button
Contacts type and composition 2 C/O

Complementary 28

[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz, non self-powered
Supply voltage limits 20.4…264 V AC/DC
Maximum power consumption in VA 3.5 VA AC
Maximum power consumption in W 0.6 W DC
Measurement range 150 mA...15 A current AC/DC
Maximum measuring cycle 30 ms measurement cycle as true rms value
Hysteresis 5…50 % threshold setting
Repeat accuracy +/- 0.5 % input and measurement circuit, +/- 2 % time delay
Measurement error 0.05 %/°C with temperature variation, 1 by volt over the whole range with voltage variation
Time delay type Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault, Adjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup
Setting accuracy of time delay 10 %
Reset time 1500 ms time delay
Power on Delay 300 ms
Output contacts 2 C/O
nominal output current 5 A
Maximum switching voltage 250 V AC/DC
Switching capacity in VA 1250 VA
Minimum switching current 10 mA 5 V DC
Maximum switching current 5 A AC/DC
Electrical durability 100000 cycles
Mechanical durability 30000000 cycles
operating voltage tolerance - 15 % + 10 % Un
Control circuit frequency 40...70 Hz +/- 10 %
Resistance across terminals 0.005 Ohm E3-M terminals, 0.015 Ohm E2-M terminals, 0.05 Ohm E1-M terminals
Measurement accuracy +/- 10 % of the full scale value
Threshold setting 10...100 %
Insulation Between supply and measurement
Contacts material Cadmium free

Environment 24

Electromagnetic compatibility Emission standard for industrial environments conforming to IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Standards IEC 60255-6
Product Certifications GL, UL, GOST, C-tick, CSA
Marking CE : EMC 89/336/EEC, CE : 73/23/EEC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C), -40…158 °F (-40…70 °C)
Ambient air temperature for operation -4…122 °F (-20…50 °C)
Relative humidity 95 % 131 °F (55 °C) IEC 60068-2-30
IP degree of protection IP20 IEC 60529 terminals), IP30 IEC 60529 casing)
Pollution degree 3 IEC 60664-1
Overvoltage category III conforming to IEC 60664-1
Dielectric test voltage 2 kV AC 50 Hz, 1 min IEC 60255-5
Insulation resistance > 500 MOhm 500 V DC between supply and relay output IEC 60255-5
[Ui] rated insulation voltage 250 V IEC 60664-1
Operating position Any position without derating
Connections - terminals Screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end
Tightening torque 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material Polycarbonate
Local signalling LED (green) for power ON, LED (yellow) for relay ON
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Reliability data MTTFd = 296.8 years, B10d = 270000
Height 3.5 in (90 mm), 3.5 in (88.9 mm)
Width 1.4 in (35 mm), 1.4 in (35.6 mm)
Depth 2.8 in (72 mm), 2.8 in (71.1 mm)
Net Weight 0.29 lb(US) (0.13 kg), 0.29 lb(US) (0.13 kg)
Show all 72 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RM35JA32MW
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119405225

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.13 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RM35JA32MW

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60255-6
Quick answers

Questions about the RM35JA32MW

What is the rated current of RM35JA32MW?

The rated current of RM35JA32MW is 5 A.

Which supply voltage is RM35JA32MW rated for?

The rated operational voltage of RM35JA32MW is 24–240–DC V DC.

What is the HS code of RM35JA32MW for customs?

The tariff (HS) code on file for RM35JA32MW is 85364900.

What is the EAN of RM35JA32MW?

The EAN (GTIN) of RM35JA32MW is 3389119405225.

Where does RM35JA32MW ship from, and how fast?

RM35JA32MW ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
