Part number
RM35HZ21FM
$101.83 On request Dispatch — · From TürkiyeGet a Quote
Harmony Control Relays

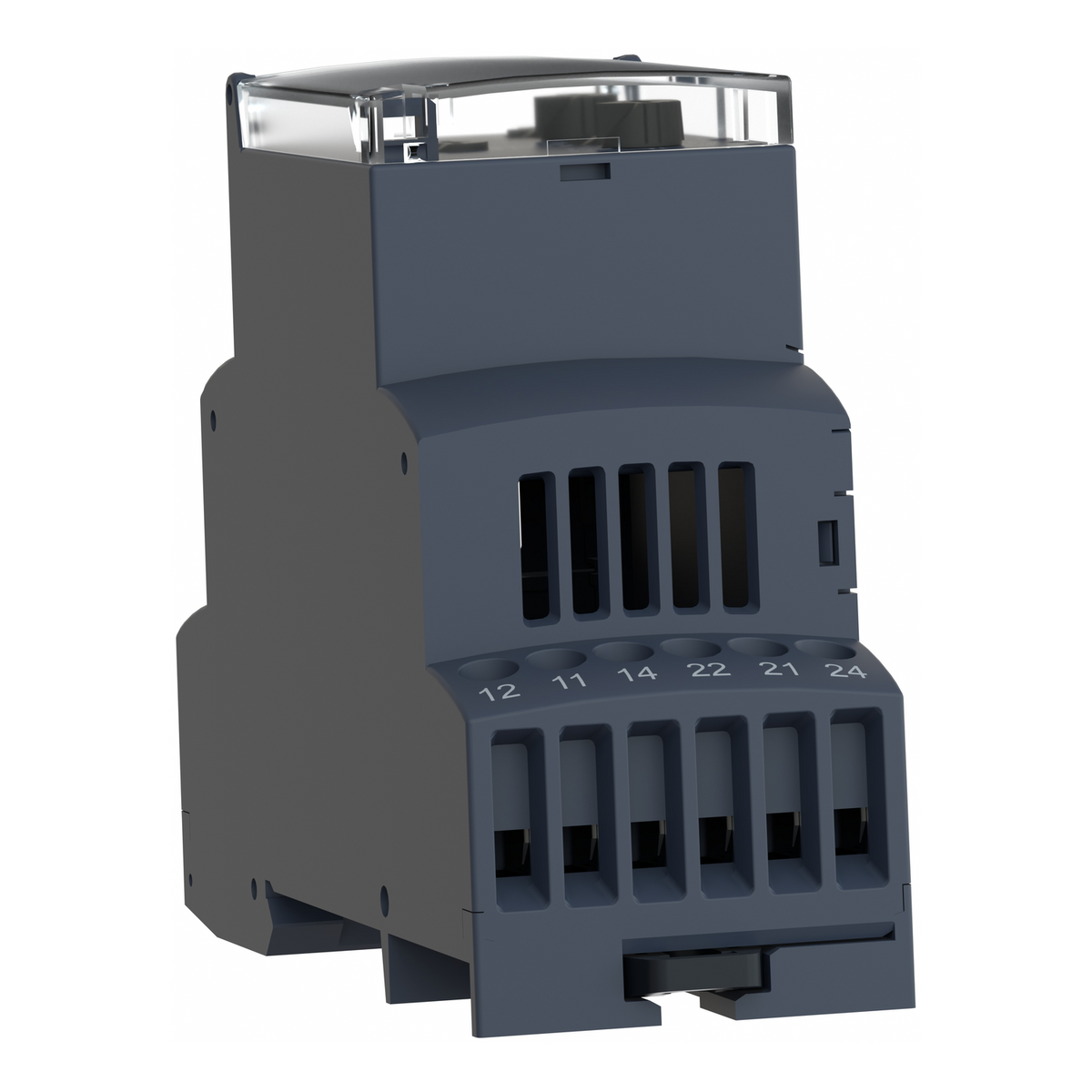

Schneider Electric RM35HZ21FM Harmony 5A 1CO+1CO 120-277V AC Over/Underfrequency Control Relay

Harmony frequency control relay, 120-277V AC, over/underfrequency 40-70Hz, 1CO+1CO 5A.

Rated current
5 A
Rated operational voltage
120–277 V AC
EAN
3389119405201
Description

About the RM35HZ21FM

The Schneider Electric RM35HZ21FM is a Harmony RM35-HZ frequency control relay, monitoring a 120-277 V AC supply for over and underfrequency conditions across a 40-70 Hz measurement window. It switches two separate 5 A changeover contacts with an adjustable 0.1-10 second fault delay, in a 35 mm wide DIN rail housing.

Certifications & Standards

  • CE
  • GL
  • UL
  • CSA
  • IEC 60255-6

Selection Notes

The two independent 1 C/O outputs on RM35HZ21FM let an over-frequency trip and an under-frequency trip drive separate downstream circuits - useful for generator or wind-turbine protection where over-speed and under-speed events need different responses rather than a single shared alarm contact. Its 120-277 V AC supply range covers both 120 V and 230/277 V control circuits without a separate SKU, and the -2 to 10 Hz and -10 to 2 Hz threshold settings let each output be tuned independently around the 50/60 Hz nominal. Rated for up to 360 operations per hour under full load and immune to supply microbreaks as short as 10 ms, RM35HZ21FM tolerates momentary disturbances without a nuisance trip, a relevant spec where the monitored source is a diesel genset or inverter with a noisier frequency output than utility mains.

Specification

Full specification

72 values · Last verified 30 Oct 2026

Main 11

Range of Product Harmony Control Relays
Relay Type Frequency control relays
Product or Component Type Frequency control relay
Relay name RM35HZ21FM
Relay monitored parameters Overfrequency and underfrequency 50 or 60 Hz
Time delay type Adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault
Switching capacity in VA 1250 VA
Minimum switching current 10 mA 5 V DC
Maximum power consumption in VA 6 VA AC
Measurement range 40...70 Hz
Utilisation category AC-12 IEC 60947-5-1, AC-13 IEC 60947-5-1, AC-14 IEC 60947-5-1, AC-15 IEC 60947-5-1, DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1, DC-14 IEC 60947-5-1

Complementary 35

Reset time 2000 ms time delay
Maximum switching voltage 250 V AC/DC
[Us] rated supply voltage 120...277 V AC
[Un] rated nominal voltage 120...277 V AC, non self-powered
Supply voltage limits 102…308 V AC
Control circuit frequency 40...70 Hz
Width 1.4 in (35 mm)
Output contacts 1 C/O + 1 C/O
Contacts material Cadmium free
nominal output current 5 A
maximum input frequency 70 Hz
Maximum measuring cycle 200 ms measurement cycle as true rms value
delay at power up 0.5 s
Hysteresis 0.3 % fixed
Measurement accuracy +/- 10 % of the full scale value in input, +/- 10 % of the full scale value in time delay
Repeat accuracy +/- 0.5 % input and measurement circuit, +/- 0.5 % time delay
Measurement error +/- 0.05 %/°C with temperature variation, < +/- 1 % over the whole range with voltage variation
Threshold setting -2...10 Hz, -10...2 Hz
Marking CE : 73/23/EEC, CE : EMC 89/336/EEC
Overvoltage category III conforming to IEC 60664-1
Insulation resistance > 500 MOhm 500 V DC between supply and relay output IEC 60255-5, > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1, > 1 MOhm 500 V DC between supply and measurement IEC 60255-5, > 500 MOhm 500 V DC between supply and relay output IEC 60664-1, > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5, > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
[Ui] rated insulation voltage 400 V IEC 60664-1
operating voltage tolerance - 15 % + 10 % Un
Supply frequency 50/60 Hz +/- 10 %
Insulation No galvanic insulation between supply and measurement
Operating position Any position without derating
Connections - terminals Screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end
Tightening torque 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material Polycarbonate
local signalling 1 LED Green power ON, 1 LED Yellow correct frequency (high R1), 1 LED Yellow correct frequency (low R2)
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Electrical durability 100000 cycles
Mechanical durability 30000000 cycles
Operating rate <= 360 operations/hour full load
Control Type Without test button

Environment 13

Immunity to microbreaks 10 ms
Electromagnetic compatibility Emission standard for industrial environments IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments IEC 61000-6-3, Immunity for industrial environments NF EN/IEC 61000-6-2
Standards IEC 60255-6, NF EN 60255-6
Product Certifications GL, UL, CSA, C-tick, GOST
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -4…122 °F (-20…50 °C)
Relative humidity 95 % 131 °F (55 °C) IEC 60068-2-30
Vibration resistance 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1, 1 gn (f= 57.6…150 Hz) conforming to IEC 60068-2-6/IEC 60255-21-1
Shock resistance 15 gn 11 ms IEC 60255-21-1
IP degree of protection IP20 IEC 60529 terminals), IP30 IEC 60529 casing)
Pollution degree 3 IEC 60664-1
Dielectric test voltage 2 kV AC 50 Hz
Non-dissipating shock wave 4 kV
Show all 72 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RM35HZ21FM
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389119405201

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.126 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RM35HZ21FM

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • IEC 60255-6
  • NF EN 60255-6
Quick answers

Questions about the RM35HZ21FM

What is the rated current of RM35HZ21FM?

The rated current of RM35HZ21FM is 5 A.

Which supply voltage is RM35HZ21FM rated for?

The rated operational voltage of RM35HZ21FM is 120–277 V AC.

What is the HS code of RM35HZ21FM for customs?

The tariff (HS) code on file for RM35HZ21FM is 853649.

What is the EAN of RM35HZ21FM?

The EAN (GTIN) of RM35HZ21FM is 3389119405201.

Where does RM35HZ21FM ship from, and how fast?

RM35HZ21FM ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
