Part number
RM22UA33MR
$87.61 Low stock Dispatch Planned dispatch date. We aim to ship within 30 business days. Depending on warehouse workload it can take 1–2 business days longer. · From Türkiye
Harmony Control Relays

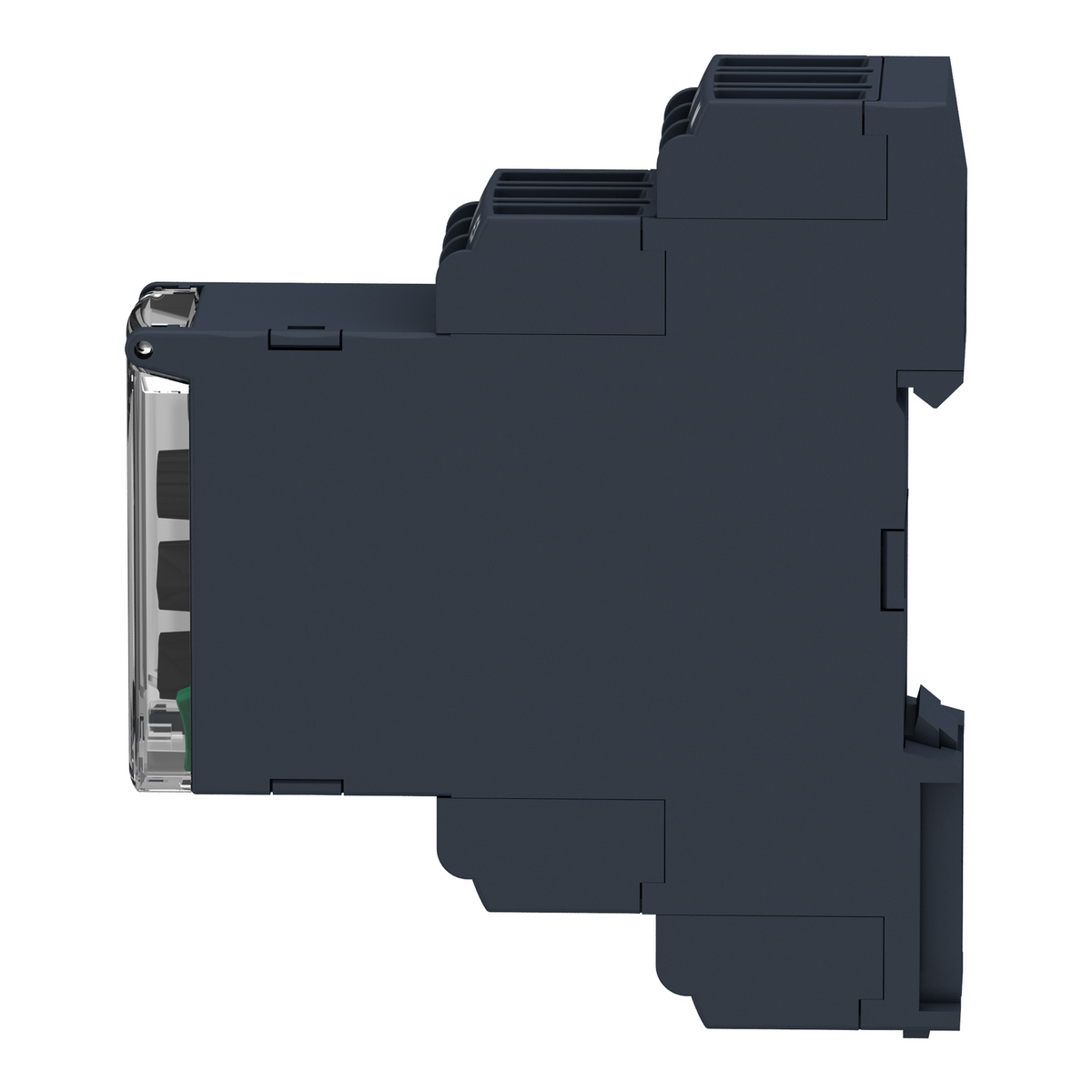

Schneider Electric RM22UA33MR Harmony Voltage Control Relay 8A 2CO 15-500V AC/DC 24-240V Control Relay

Harmony voltage control relay, 15-500V AC/DC measurement, 24-240V AC/DC supply, 2 CO 8A.

Rated current
8 A
Rated operational voltage
24–240–DC V DC
EAN
3606480792250
Description

About the RM22UA33MR

The Schneider Electric RM22UA33MR is a Harmony RM22-UA single-phase voltage control relay, measuring a 15-500 V AC/DC signal for overvoltage or undervoltage conditions in window mode while powered from a 24-240 V AC/DC supply. It switches two 8 A changeover contacts in a 22.5 mm wide DIN rail housing with a front diagnostic button.

Certifications & Standards

  • RCM
  • UL
  • EAC
  • CSA
  • CE
  • GL
  • CCC
  • IEC 60255-1

Selection Notes

The 15-500 V measurement range on RM22UA33MR covers mains-level single-phase circuits directly, where the 1-100 V RM22UA32MR sibling would need a voltage divider ahead of it. Both parts share the same 24-240 V AC/DC supply, 2 C/O 8 A output and 22.5 mm housing, so the choice between them depends only on whether the monitored signal is a low-voltage sensor output or a line-level circuit - specify the RM22UA33MR directly on 110 V, 230 V or similar single-phase supplies without additional signal conditioning. Reliability data rates the RM22UA family at B10d = 290,000 operations and an MTTFd of 308.2 years, consistent across the 1-100 V and 15-500 V measurement-range variants since the output stage and mechanical contacts are shared hardware.

Specification

Full specification

69 values · Last verified 30 Oct 2026

Main 9

Range of Product Harmony Control Relays
Relay Type Voltage control relay
Product or Component Type Voltage control relay
Relay name RM22UA
Relay monitored parameters Undervoltage and overvoltage in window mode, Overvoltage or undervoltage detection
Control Type With test button
Contacts type and composition 2 C/O
Phase 1 phase
Supply circuit type DC

Complementary 25

[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz, non self-powered
Supply voltage limits 20.4…264 V AC/DC
Power consumption in VA 3.5 VA AC
Measurement range 15...500 V AC/DC
Maximum measuring cycle 100 ms measurement cycle as true rms value
Hysteresis 3 % fixed full scale for window mode, 5…50 % adjustable threshold setting
Repeat accuracy +/- 0.5 % input and measurement circuit, +/- 2 % time delay
Measurement error < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation
Time delay type Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Setting accuracy of time delay 10 %
Reset time 1500 ms at maximum voltage
Response time <= 500 ms
Power on delay 600 ms
Output contacts 2 C/O
nominal output current 8 A
Maximum switching voltage 250 V AC
Switching capacity in VA 2000 VA
Minimum switching current 10 mA 5 V DC
Maximum switching current 8 A AC
Electrical durability 100000 cycles
Mechanical durability 10000000 cycles
Contacts material Cadmium free
Maximum power consumption in W 1.5 W DC
Resistance across terminals 150 kOhm E2-M terminals, 300 kOhm E1-M terminals, 500 kOhm E3-M terminals
Insulation Between supply and measurement

Environment 22

Electromagnetic compatibility Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, Immunity for industrial environments conforming to IEC 61000-6-2, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Emission standard for industrial environments conforming to IEC 61000-6-4, Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Standards IEC 60255-1
Product Certifications RCM, UL, EAC, CSA, CE, GL, CCC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C), -40…158 °F (-40…70 °C)
Ambient air temperature for operation -4…122 °F (-20…50 °C) 60 Hz, -4…140 °F (-20…60 °C) 50 Hz
Relative humidity 93…97 % 77…131 °F (25…55 °C) IEC 60068-2-30
Vibration resistance 0.075 mm 10…58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10…58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1…150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1…150 Hz) in operation IEC 60068-2-6
Shock resistance 15 gn 11 ms) not in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
IP degree of protection IP20 IEC 60529 terminals), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
Pollution degree 3 IEC 60664-1
Overvoltage category III conforming to IEC 60664-1
Dielectric test voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27
Insulation resistance > 100 MOhm 500 V DC
Connections - terminals Screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, Screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end
Tightening torque 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material Polycarbonate
Mounting support 35 mm DIN rail conforming to IEC 60715
Reliability data MTTFd = 308.2 years, B10d = 290000
Height 3.5 in (90 mm), 3.5 in (88.9 mm)
Width 0.9 in (22.5 mm), 0.9 in (22.9 mm)
Depth 2.9 in (73 mm), 2.9 in (73.7 mm)
Net Weight 0.24 lb(US) (0.11 kg), 0.24 lb(US) (0.11 kg)
Show all 69 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RM22UA33MR
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480792250

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch 29 Dec
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RM22UA33MR

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • CCC
  • EAC
  • IEC 60255-1
Quick answers

Questions about the RM22UA33MR

What is the rated current of RM22UA33MR?

The rated current of RM22UA33MR is 8 A.

Which supply voltage is RM22UA33MR rated for?

The rated operational voltage of RM22UA33MR is 24–240–DC V DC.

What is the HS code of RM22UA33MR for customs?

The tariff (HS) code on file for RM22UA33MR is 853649.

What is the EAN of RM22UA33MR?

The EAN (GTIN) of RM22UA33MR is 3606480792250.

Where does RM22UA33MR ship from, and how fast?

RM22UA33MR ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 30 business days.
