Part number
RM22TR33
$65.47 On request Dispatch — · From TürkiyeGet a Quote
Harmony Control Relays

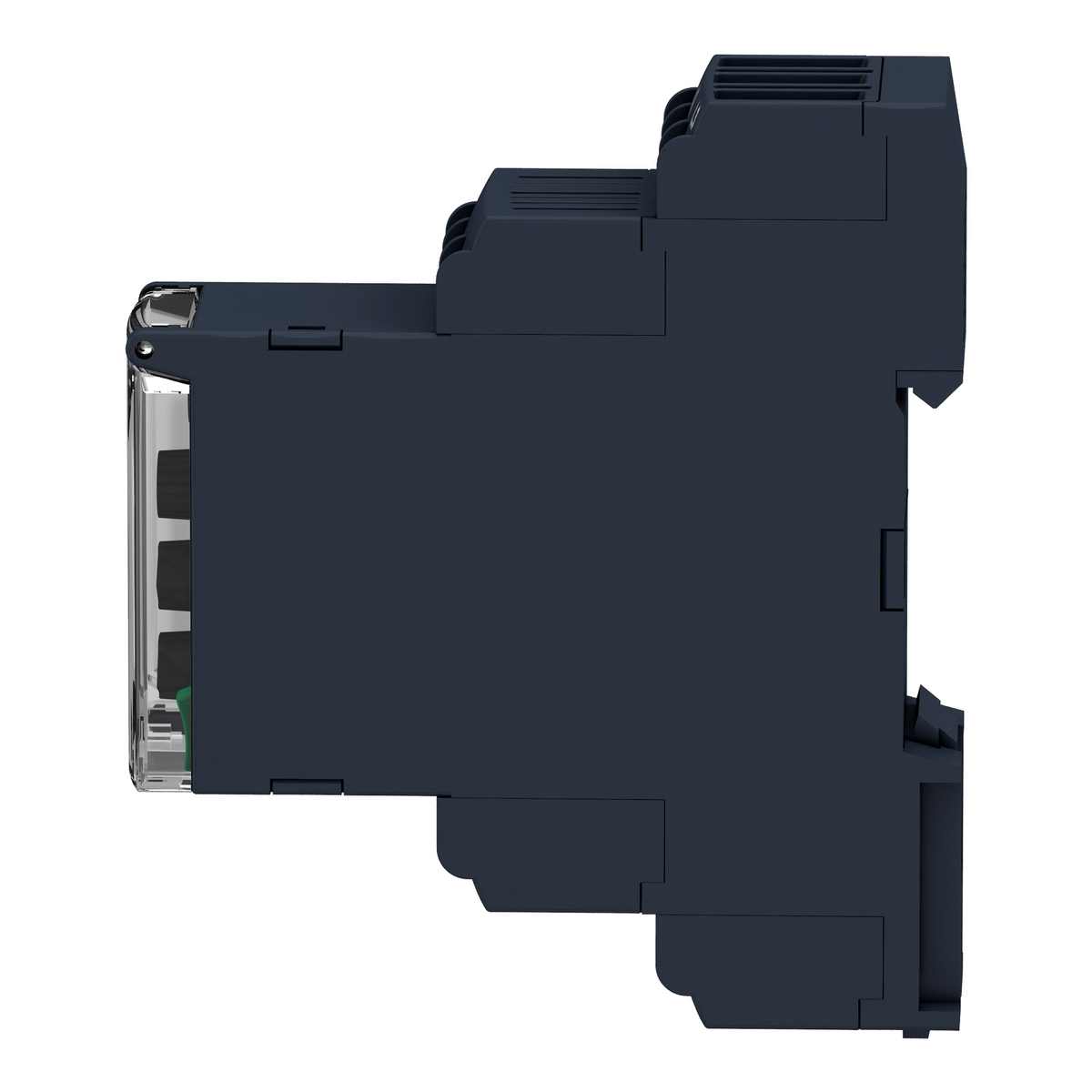

Schneider Electric RM22TR33 Harmony 8A 2CO 380-480V AC Over/Undervoltage Phase Loss 3-Phase Control Relay

Harmony 3-phase control relay, 380-480V AC, over/undervoltage, phase loss/sequence, 2 CO 8A.

Rated current
8 A
Rated operational voltage
380–480 V AC
EAN
3606480792199
Description

About the RM22TR33

The Schneider Electric RM22TR33 is a Harmony RM22-TR multifunction 3-phase control relay that monitors a 380-480 V AC supply for over/undervoltage, phase loss and phase sequence faults. It switches two 8 A changeover contacts with an adjustable 0.1-30 second fault delay, in a 22.5 mm wide DIN rail housing with a front diagnostic button.

Certifications & Standards

  • GL
  • CSA
  • RCM
  • CE
  • EAC
  • CCC
  • UL
  • IEC 60255-1

Selection Notes

RM22TR33's 380-480 V measurement range and dual 2 C/O 8 A contacts make it a hard-wired replacement for a PLC-based three-phase supply monitor in retrofit panels, with the front diagnostic button and test function cutting fault-finding time versus the simpler single-contact RM10T family. Where the monitored circuit is a single-phase 1-100 V or 15-500 V signal rather than a 3-phase line voltage, the RM22UA32MR or RM22UA33MR single-phase voltage relays in the same 22.5 mm housing are the correct siblings instead. Reliability data rates RM22TR33 at B10d = 350,000 operations and an MTTFd of 388.1 years, figures worth pulling into a mission-time calculation if the relay feeds a safety-related shutdown circuit downstream rather than just an alarm indicator. The front test button triggers each monitored condition in turn for commissioning checks without having to force an actual supply fault, cutting first-start troubleshooting time on new panel builds.

Specification

Full specification

67 values · Last verified 30 Oct 2026

Main 7

Range of Product Harmony Control Relays
Relay Type Control relay
Product or Component Type 3-phase control relay
Relay name RM22TR
Relay monitored parameters Overvoltage and undervoltage detection, Phase sequence, Phase failure detection
Control Type With test button
Contacts type and composition 2 C/O

Complementary 24

[Us] rated supply voltage , self-powered
Supply voltage limits 304…576 V AC
Supply frequency 50...60 Hz +/- 10 %
Power consumption in VA 15 VA 480 V AC 60 Hz
Measurement range 380...480 V voltage AC
Voltage detection threshold < 100 V AC
Maximum measuring cycle 150 ms measurement cycle as true rms value
Threshold adjustment voltage 2...20 % of Un selected
Setting accuracy of the switching threshold +/- 10 % of the full scale
Repeat accuracy +/- 0.5 % input and measurement circuit, +/- 3 % time delay
Measurement error < 1 % over the whole range with voltage variation, < 0.05 %/°C with temperature variation
Time delay type Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Setting accuracy of time delay 10 %
Reset time 1500 ms at maximum voltage
Response time <= 300 ms
Output contacts 2 C/O
nominal output current 8 A
Maximum switching voltage 250 V AC
Switching capacity in VA 2000 VA
Minimum switching current 10 mA 5 V DC
Maximum switching current 8 A AC
Electrical durability 100000 cycles
Mechanical durability 10000000 cycles
Contacts material Cadmium free

Environment 23

Electromagnetic compatibility Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, Immunity for industrial environments conforming to IEC 61000-6-2, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Emission standard for industrial environments conforming to IEC 61000-6-4, Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Standards IEC 60255-1
Product Certifications GL, CSA, RCM, CE, EAC, CCC, UL
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C), -40…158 °F (-40…70 °C)
Ambient air temperature for operation -4…122 °F (-20…50 °C) 60 Hz, -4…140 °F (-20…60 °C) 50 Hz AC/DC
Relative humidity 93…97 % 77…131 °F (25…55 °C) IEC 60068-2-30
Vibration resistance 0.075 mm 10…58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10…58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1…150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1…150 Hz) in operation IEC 60068-2-6
Shock resistance 15 gn 11 ms) not in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
IP degree of protection IP20 IEC 60529 terminals), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
Pollution degree 3 IEC 60664-1, 3 UL 508
Overvoltage category III conforming to IEC 60664-1, III conforming to UL 508
Dielectric test voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27
Insulation resistance > 100 MOhm 500 V DC IEC 60255-27
Connections - terminals Screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, Screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end
Tightening torque 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material Polycarbonate
Local signalling LED (Yellow) relay ON, LED (Green) power ON
Mounting support 35 mm DIN rail conforming to IEC 60715
Reliability data MTTFd = 388.1 years, B10d = 350000
Height 3.5 in (90 mm), 3.5 in (88.9 mm)
Width 0.9 in (22.5 mm), 0.9 in (22.9 mm)
Depth 2.9 in (73 mm), 2.9 in (73.7 mm)
Net Weight 0.209 lb(US) (0.095 kg), 0.21 lb(US) (0.10 kg)
Show all 67 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RM22TR33
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480792199

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.095 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RM22TR33

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • CCC
  • EAC
  • IEC 60255-1
Quick answers

Questions about the RM22TR33

What is the rated current of RM22TR33?

The rated current of RM22TR33 is 8 A.

Which supply voltage is RM22TR33 rated for?

The rated operational voltage of RM22TR33 is 380–480 V AC.

What is the HS code of RM22TR33 for customs?

The tariff (HS) code on file for RM22TR33 is 853649.

What is the EAN of RM22TR33?

The EAN (GTIN) of RM22TR33 is 3606480792199.

Where does RM22TR33 ship from, and how fast?

RM22TR33 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
