Part number
RM22LA32MR
$85.39 On request Dispatch — · From TürkiyeGet a Quote
Harmony Control Relays

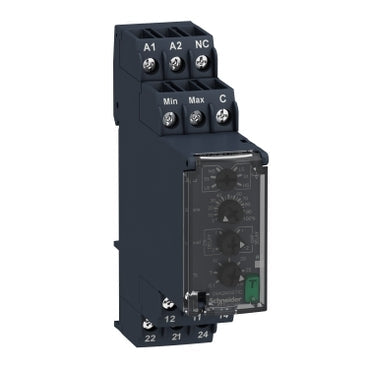

Schneider Electric RM22LA32MR Harmony RM22L 8A 2CO Level Control 24-240V AC/DC Control Relay

Harmony RM22L level control relay, resistive probe detection, 2 C/O 8A output, 24-240V AC/DC.

Rated current
8 A
Rated operational voltage
24–240–DC V DC
EAN
3606480792342
Description

About the RM22LA32MR

The Schneider Electric RM22LA32MR is a Harmony RM22L level control relay that detects liquid level through resistive probes and switches 2 C/O contacts rated 8 A. It runs from a universal 24-240 V AC/DC 50/60 Hz supply, offers an adjustable 0.1-30 second fault time delay, and mounts on 35 mm DIN rail.

Certifications & Standards

  • UL
  • RCM
  • CSA
  • GL
  • CCC
  • CE
  • EAC
  • IEC 60255-1

Selection Notes

RM22LA32MR detects liquid level through resistive probes rather than a float switch, which suits tanks where mechanical floats foul or where several fixed level points must be sensed. The LS/St/HS sensitivity scale (0.25 kOhm to 1000 kOhm) is set to match probe cable length and liquid conductivity, with runs up to 100 m supported. At 8 A/2 C/O on a 24-240 V AC/DC supply, it can switch a pump contactor coil directly from the panel's control voltage without an interposing relay.

Specification

Full specification

66 values · Last verified 30 Oct 2026

Main 11

Range of Product Harmony Control Relays
Relay Type Level control relay
Product or Component Type Level control relay
Relay name RM22L
Relay monitored parameters Detection by resistive probes
time delay Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
Switching capacity in VA 2000 VA
Minimum switching current 10 mA 5 V DC
Maximum switching current 8 A AC
Utilisation category AC-15 IEC 60947-5-1, DC-13 IEC 60947-5-1, AC-1 IEC 60947-4-1, DC-1 IEC 60947-4-1
Contacts type and composition 2 C/O

Complementary 31

Maximum switching voltage 250 V AC
[Un] rated nominal voltage 24...240 V AC/DC 50/60 Hz, non self-powered
Supply voltage limits 20.4…264 V AC/DC
power consumption 1.5 W DC
Output contacts 2 C/O
nominal output current 8 A
delay at power up 2.5 s, 0.6 s
Maximum electrode voltage 12 V AC
Maximum electrode current 1 mA
Repeat accuracy +/- 2 % time delay
Measurement error < 1 % over the whole range with voltage variation, 0.05 %/°C with temperature variation
Maximum cable distance between devices 328.08 ft (100 m) probe and delay
Sensitivity scale 0.25...5 kOhm LS (Low Sensitivity), 5...100 kOhm St (Standard Sensitivity), 50...1000 kOhm HS (High Sensitivity)
Sensitivity adjustment 5…100 %
Maximum supply current for sensors 1 mA
Cable capacitance 1 nF HS (High Sensitivity) probe cable, 2.2 nF St (Standard Sensitivity) probe cable, 4.7 nF LS (Low Sensitivity) probe cable
Overvoltage category III conforming to IEC 60664-1
Insulation Between supply and measurement
Connections - terminals Screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end, Screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end
Tightening torque 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material Polycarbonate
Mounting support 35 mm DIN rail conforming to IEC 60715
Mounting position Any position
Electrical durability 100000 cycles
Mechanical durability 10000000 cycles
Contacts material Cadmium free
Measurement range 0.25...1000 kOhm
Safety reliability data MTTFd = 182.6 years, B10d = 170000
Width 0.9 in (22.5 mm)
Control Type With test button
Net Weight 0.24 lb(US) (0.11 kg)

Environment 11

Immunity to microbreaks 100 ms DC, 90 ms AC
Electromagnetic compatibility Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1, Immunity for industrial environments conforming to IEC 61000-6-2, Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3, Emission standard for industrial environments conforming to IEC 61000-6-4, Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3, Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4, Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5, Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5, Conducted and radiated emissions class B group 1 conforming to CISPR 11, Conducted and radiated emissions class B conforming to CISPR 22
Standards IEC 60255-1
Product Certifications UL, RCM, CSA, GL, CCC, CE, EAC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Relative humidity 93…97 % 77…131 °F (25…55 °C) IEC 60068-2-30
Vibration resistance 0.075 mm 10…58.1 Hz) not in operation IEC 60068-2-6, 1 gn 10…58.1 Hz) not in operation IEC 60068-2-6, 0.035 mm 58.1…150 Hz) in operation IEC 60068-2-6, 0.5 gn 58.1…150 Hz) in operation IEC 60068-2-6
Shock resistance 15 gn 11 ms) not in operation IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27
IP degree of protection IP20 IEC 60529 terminals), IP40 IEC 60529 housing), IP50 IEC 60529 front panel)
Pollution degree 3 IEC 60664-1
Dielectric test voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27
Show all 66 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RM22LA32MR
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480792342

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RM22LA32MR

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • CCC
  • EAC
  • IEC 60255-1
Quick answers

Questions about the RM22LA32MR

What is the rated current of RM22LA32MR?

The rated current of RM22LA32MR is 8 A.

Which supply voltage is RM22LA32MR rated for?

The rated operational voltage of RM22LA32MR is 24–240–DC V DC.

What is the HS code of RM22LA32MR for customs?

The tariff (HS) code on file for RM22LA32MR is 85364900.

What is the EAN of RM22LA32MR?

The EAN (GTIN) of RM22LA32MR is 3606480792342.

Where does RM22LA32MR ship from, and how fast?

RM22LA32MR ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
