Part number
RM10TA00N
$44.60 On request Dispatch — · From TürkiyeGet a Quote
Harmony Control Relays

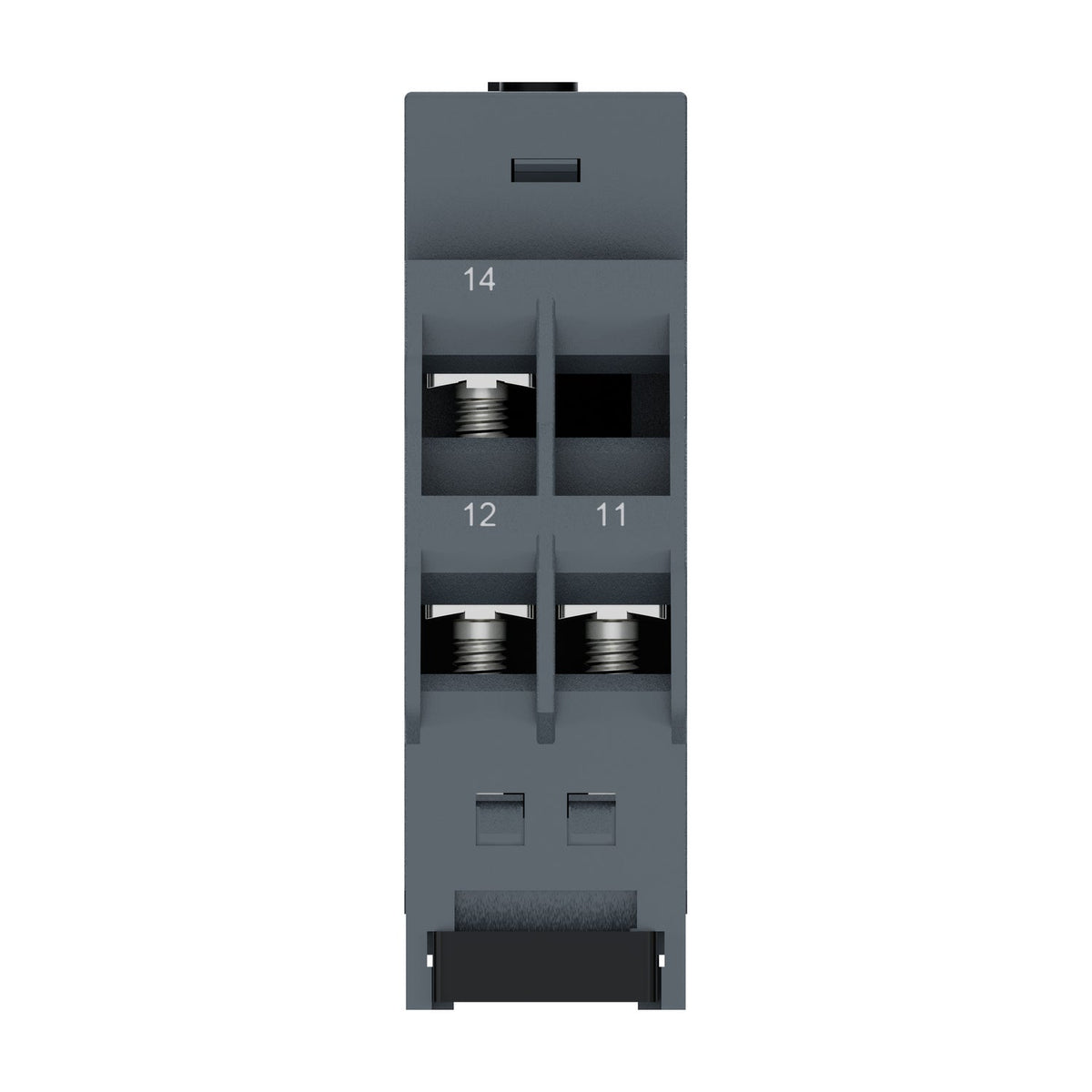

Schneider Electric RM10TA00N Harmony 208-480V AC Phase Sequence Failure Asymmetry 1 CO 3-Phase Control Relay

Harmony 3-phase voltage monitoring relay, 208-480V AC, phase sequence/failure/asymmetry, 1 CO 5A.

Rated current
5 A
Rated operational voltage
208–480 V AC
EAN
3606487344681
Description

About the RM10TA00N

The Schneider Electric RM10TA00N is a Harmony 3-phase control relay that monitors a 208-480 V AC supply for phase loss, incorrect phase sequence and phase asymmetry, standard version. It switches one 5 A changeover contact and de-energises the output the moment the monitored supply goes out of tolerance, in a 17.5 mm DIN rail housing.

Certifications & Standards

  • cULus
  • CE
  • UKCA
  • CCC
  • IEC 60255-1

Selection Notes

RM10TA00N is the standard version of the RM10T family, covering phase loss, phase sequence and asymmetry only; where over/undervoltage detection is also needed on the same 208-480 V AC range, the RM10TE00N enhanced version is the sibling to specify, and where only phase loss and sequence matter without asymmetry, the RM10TG00N basic version is sufficient at a simpler feature set. The 1.5 s reset delay and <550 ms response time suit protecting three-phase motor starters from reversed-rotation or single-phasing faults before the motor is damaged.

Specification

Full specification

59 values · Last verified 30 Oct 2026

Main 6

Range of Product Harmony Control Relays
Relay Type Control relay
Product or Component Type 3-phase control relay
Relay name RM10TA
Relay monitored parameters Phase sequence, Phase failure detection, Asymmetry
Product Specific Application For 3-phase supply

Complementary 17

Supply voltage limits 183…528 V AC, 3 phase
Supply frequency 47...63 Hz
Power consumption in VA 0…4.5 VA
Measurement range 208...480 V AC
Voltage detection threshold < 175 V AC
Hysteresis 2 %
Adjustment of asymmetry threshold 5...15 % of Un selected
Measurement error < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation
Time delay type Adjustable 0...15 s, +/- 10 % of the full scale value
Setting accuracy of time delay 10 %
Reset time 1.5 s time delay
Response time < 550 ms (in the event of a fault)
Output contacts 1 C/O
nominal output current 5 A
Switching capacity in VA 1250 VA
Electrical durability 100000 cycles
Mechanical durability 10000000 cycles

Environment 23

Electromagnetic compatibility conforming to IEC 61000-6-4, conforming to IEC 61000-6-3, conforming to IEC 61000-6-2
Standards IEC 60255-1
Product Certifications cULus, CE, UKCA, CCC
Marking CULus, CE, UKCA, CCC
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C), -40…158 °F (-40…70 °C)
Ambient air temperature for operation 5…140 °F (-15…60 °C)
Relative humidity 10…95 %
IP degree of protection IP20 terminals), IP40 casing)
Pollution degree 2
Overvoltage category II
Dielectric test voltage 1.89 kV AC 50 Hz, 1 min
Insulation resistance > 100 MOhm 500 V DC
[Ui] rated insulation voltage 400 V
Connections - terminals Screw terminals, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid with or without cable end
Tightening torque 4.4…6.2 lbf.in (0.5…0.7 N.m)
Housing material Polycarbonate
Local signalling LED (green) for ST (status)
Mounting support 35 mm symmetrical DIN rail conforming to IEC 60715
Reliability data MTTFd = 158 years
Height 3.5 in (90 mm), 3.5 in (88.9 mm)
Width 0.7 in (17.5 mm), 0.7 in (17.8 mm)
Depth 2.3 in (58.5 mm), 2.3 in (58.4 mm)
Net Weight 0.165 lb(US) (0.075 kg), 0.17 lb(US) (0.08 kg)
Show all 59 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RM10TA00N
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606487344681

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin IN
Shipping weight 0.075 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RM10TA00N

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • cULus
  • CE
  • UKCA
  • CCC
  • IEC 60255-1
Quick answers

Questions about the RM10TA00N

What is the rated current of RM10TA00N?

The rated current of RM10TA00N is 5 A.

Which supply voltage is RM10TA00N rated for?

The rated operational voltage of RM10TA00N is 208–480 V AC.

What is the HS code of RM10TA00N for customs?

The tariff (HS) code on file for RM10TA00N is 853649.

What is the EAN of RM10TA00N?

The EAN (GTIN) of RM10TA00N is 3606487344681.

Where does RM10TA00N ship from, and how fast?

RM10TA00N ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
