- Part number
- RGZE1S48M
Description
About the RGZE1S48M
About the RGZE1S48M

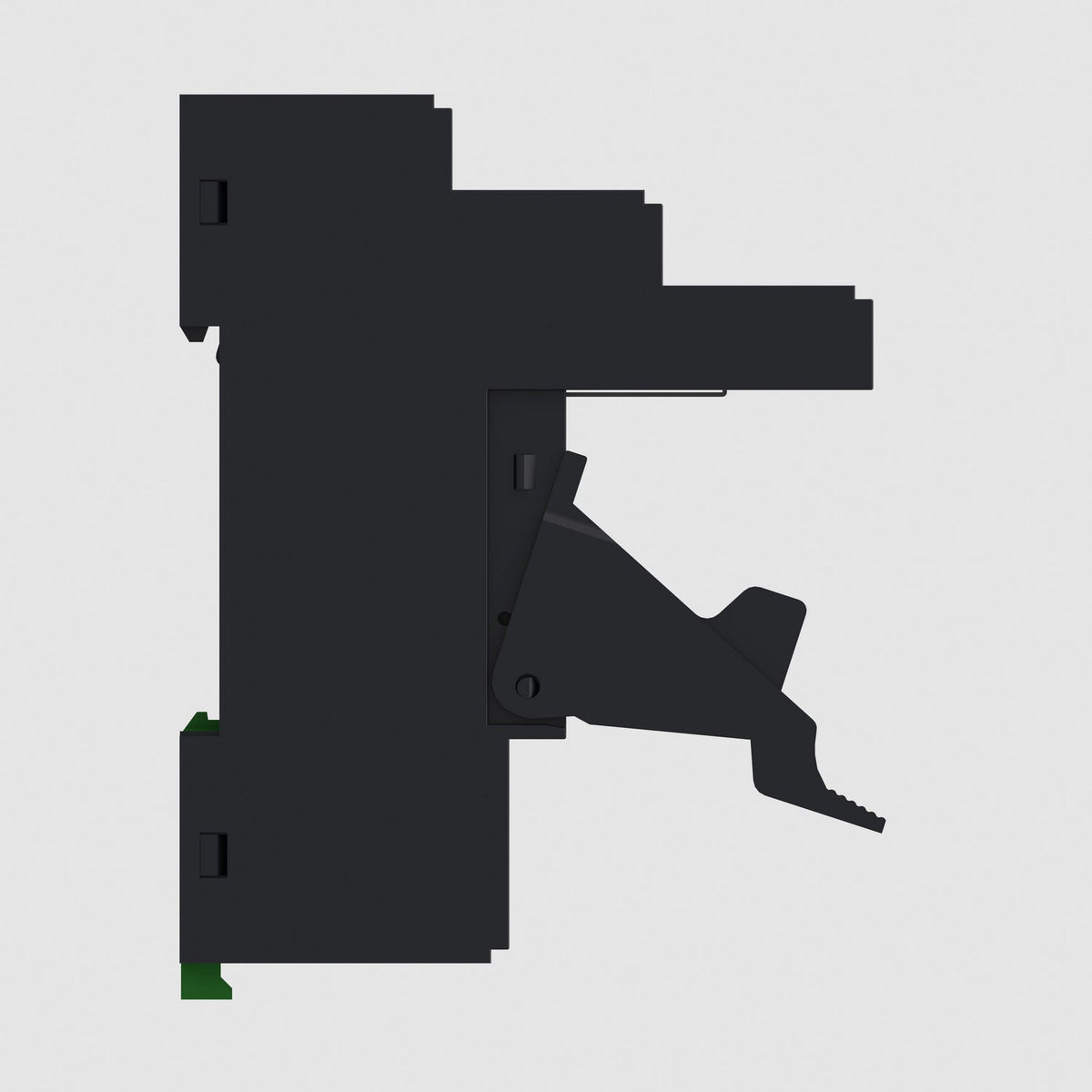

The Schneider Electric RGZE1S48M is a Harmony Electromechanical Relays socket with a retaining clamp, built for 2 C/O DPDT RXG2 plug-in relays. Unlike the mixed-terminal RGZE08E, it keeps coil and contact terminals in a separate arrangement and mounts either on a 35 mm DIN rail or directly screwed to a panel.
Certifications & Standards
- EAC
- CE
- CSA
- UL
- DNV-GL
- CSA C22.2 No 14
- IEC 61984
- UL 508
Selection Notes
Separate contact terminals keep the coil wiring physically apart from the switched load wiring, which simplifies tracing in panels with mixed voltage circuits compared with the mixed-terminal RGZE08E. The dual screw-or-clip fixing mode lets this socket mount either on a 35 mm DIN rail or bolt directly to a panel where rail space is not available. It accepts the 2 C/O RXG2 relay only; the 1 C/O RXG1 needs the RGZE1S35M sibling socket.
Specification
Full specification
Main 5
| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Product or Component Type | Socket |
| Product compatibility | Plug-in relay RXG 2 C/O |
| Contacts type and composition | 2 C/O |
| [Ui] Rated Insulation Voltage | 250 V |
Complementary 10
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation, 4 kV between poles with basic insulation, 4 kV between terminals and DIN rail with basic insulation |
|---|---|
| [Ue] rated operational voltage | 250 V IEC, 300 V UL |
| Dielectric strength | 5 kV between coil and contact with reinforced insulation, 3 kV between poles with basic insulation, 3 kV between terminals and DIN rail with basic insulation |
| Connections - terminals | Screw terminals, 1 x 0.34...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable end, Screw terminals, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end, Screw terminals, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable end |
| Fixing mode | Screw (panel), Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 0.2…0.3 in (6…7 mm) |
| Contact terminal arrangement | Separate |
| screw type | M3 |
| Overvoltage category | III |
| Pollution degree | 3 |
Environment 6
| Standards | CSA C22.2 No 14, IEC 61984, UL 508 |
|---|---|
| Product Certifications | EAC, CE, CSA, UL, DNV-GL |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP Degree of Protection | IP20 |
| Relative humidity | 10…85 % |
Show all 34 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | RGZE1S48M |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480689444 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.04 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
