- Part number
- LV481017
Description
About the LV481017
About the LV481017

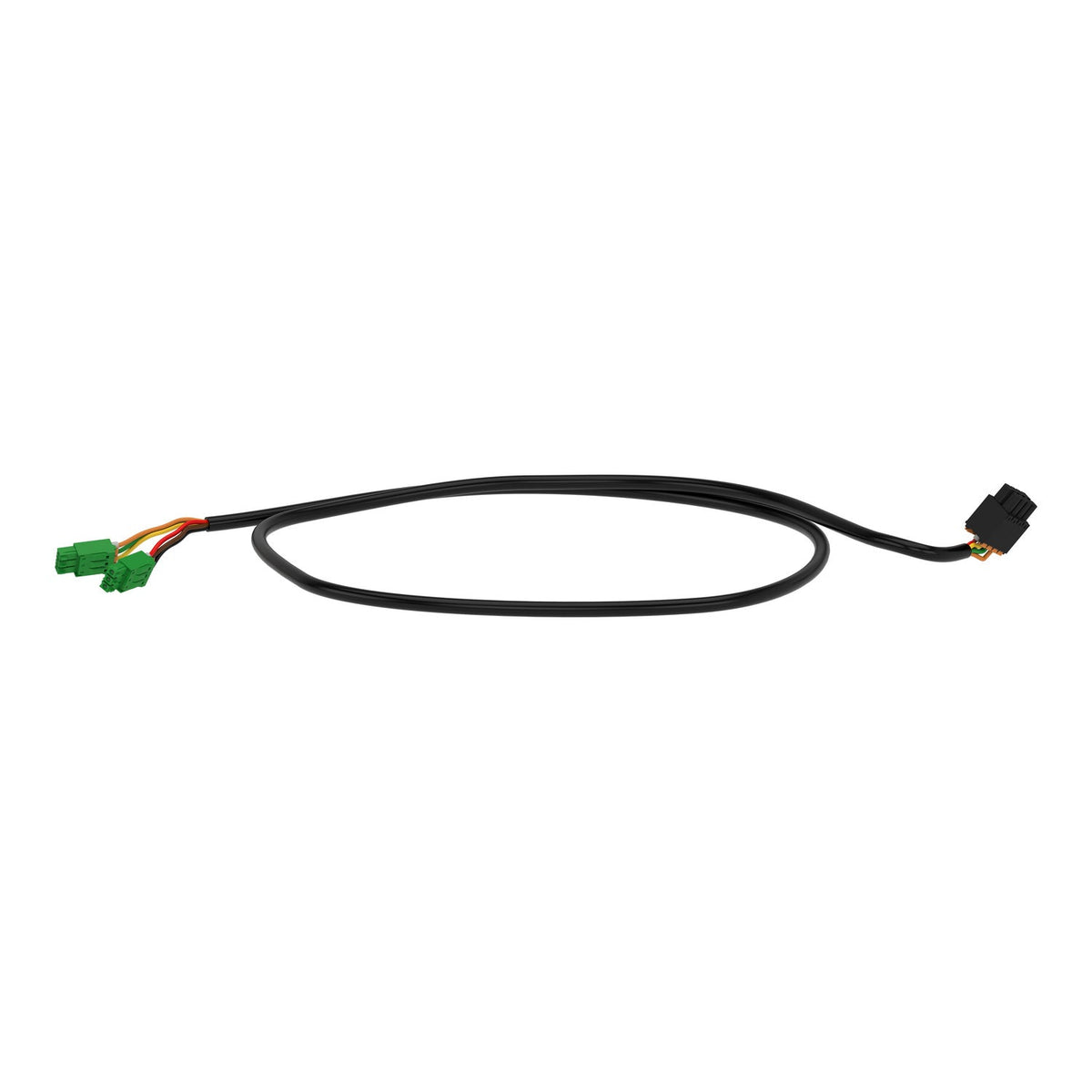

The Schneider Electric LV481017 is a 1 m wiring kit that connects a VigiPacT type B toroid current sensor to the VigiPacT RHB residual current protection and monitoring relay. The RHB relay is DIN-rail mounted, trips the associated breaker on an earth leakage fault, and this kit carries the sensor signal between toroid and relay over the 1 m run.
Selection Notes
Use the 1 m LV481017 when the toroid sensor sits close to the RHB relay in the same switchboard section; the 2.5 m LV481018 is the matching kit for a longer run. Either kit must be paired with a compatible VigiPacT type B toroid and the RHB relay.
Specification
Full specification
Main 4
| Range | VigiPacT |
|---|---|
| Product or component type | Wiring kit |
| Accessory / separate part category | Connection accessory |
| Range compatibility | VigiPacT RHB residual current protection relay |
Complementary 1
| Length | 1 m |
|---|
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Show all 28 specifications ↓ Show less ↑22 more values in Identification, Logistics.
Identification 6
| Part number | LV481017 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 12.0 cm |
| Package 1 Length | 16.0 cm |
| Package 1 Weight | 82.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 2.296 kg |
| Shipping weight | 0.082 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for LV481017
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the LV481017
What is the HS code of LV481017 for customs?
The tariff (HS) code on file for LV481017 is 853690.
Where does LV481017 ship from, and how fast?
LV481017 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
