Schneider Electric RGZE1S35M Harmony Electromechanical Relays RXG1 Clamp Separate Terminals Relay Socket

% $-4.47

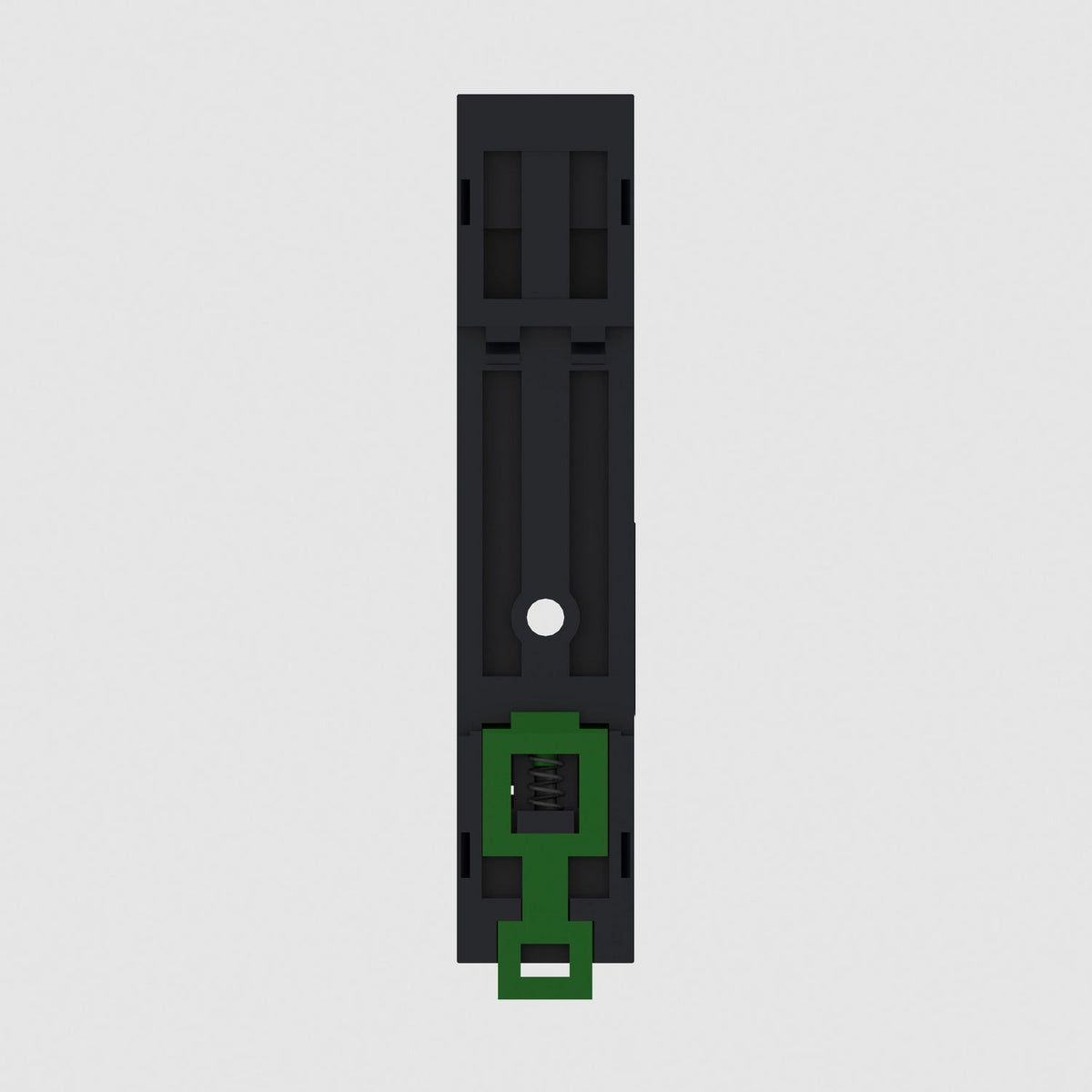

Schneider Electric RGZE1S35M Harmony relay socket for RXG1 relays - separate terminals
Schneider Electric RGZE1S35M Harmony relay socket for RXG1 relays - separate terminals

Schneider Electric RGZE1S35M Harmony Electromechanical Relays RXG1 Clamp Separate Terminals Relay Socket

Brand: Schneider Electric
Reference No: RGZE1S35M
Catalog No: RGZE1S35M
Series: Harmony Electromechanical Relays
Tariff Code (HS): 853690
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric RGZE1S35M is a Harmony Electromechanical Relays socket with a retaining clamp, built for 1 C/O SPDT RXG1 plug-in relays. Unlike the mixed-terminal RGZE05E, it keeps coil and contact terminals in a separate arrangement and mounts either on a 35 mm DIN rail or directly screwed to a panel.

Technical Specifications

Reference RGZE1S35M
Brand Schneider Electric
GTIN 3606480689437
Range of Product Harmony Electromechanical Relays
Product or Component Type Socket
Product Compatibility Plug-in relay RXG, 1 C/O contact
Contacts Type and Composition 1 C/O
Contact Terminal Arrangement Separate
[Ue] Rated Operational Voltage 250 V (IEC) / 300 V (UL)
[Ui] Rated Insulation Voltage 250 V
Fixing Mode Screw (panel) or clip-on, 35 mm DIN rail
Connections - Terminals Screw terminals, 0.34-2.5 mm2 (22-14 AWG)
IP Degree of Protection IP20

Certifications & Standards

  • CE
  • EAC
  • UL
  • CSA
  • DNV-GL
  • UL 508
  • CSA C22.2 No 14
  • IEC 61984

Selection Notes

Separate contact terminals keep the coil wiring physically apart from the switched load wiring, which simplifies tracing in panels with mixed voltage circuits compared with the mixed-terminal RGZE05E. The dual screw-or-clip fixing mode lets this socket mount either on a 35 mm DIN rail or bolt directly to a panel where rail space is not available. It accepts the 1 C/O RXG1 relay only; the 2 C/O RXG2 needs the RGZE1S48M sibling socket.

Technical Details

Short Description
Harmony socket with clamp for RXG1 1 C/O relays, separate terminals, DIN rail or panel mount.
Mounting Type
Screw panel mount or clip-on 35 mm DIN rail
Protection Type
IP20
Catalog No
RGZE1S35M
Delivery Date (Days)
30 days
Model Number
RGZ
Tariff Code
853690
