- Part number
- RGZE08E
Description
About the RGZE08E
About the RGZE08E

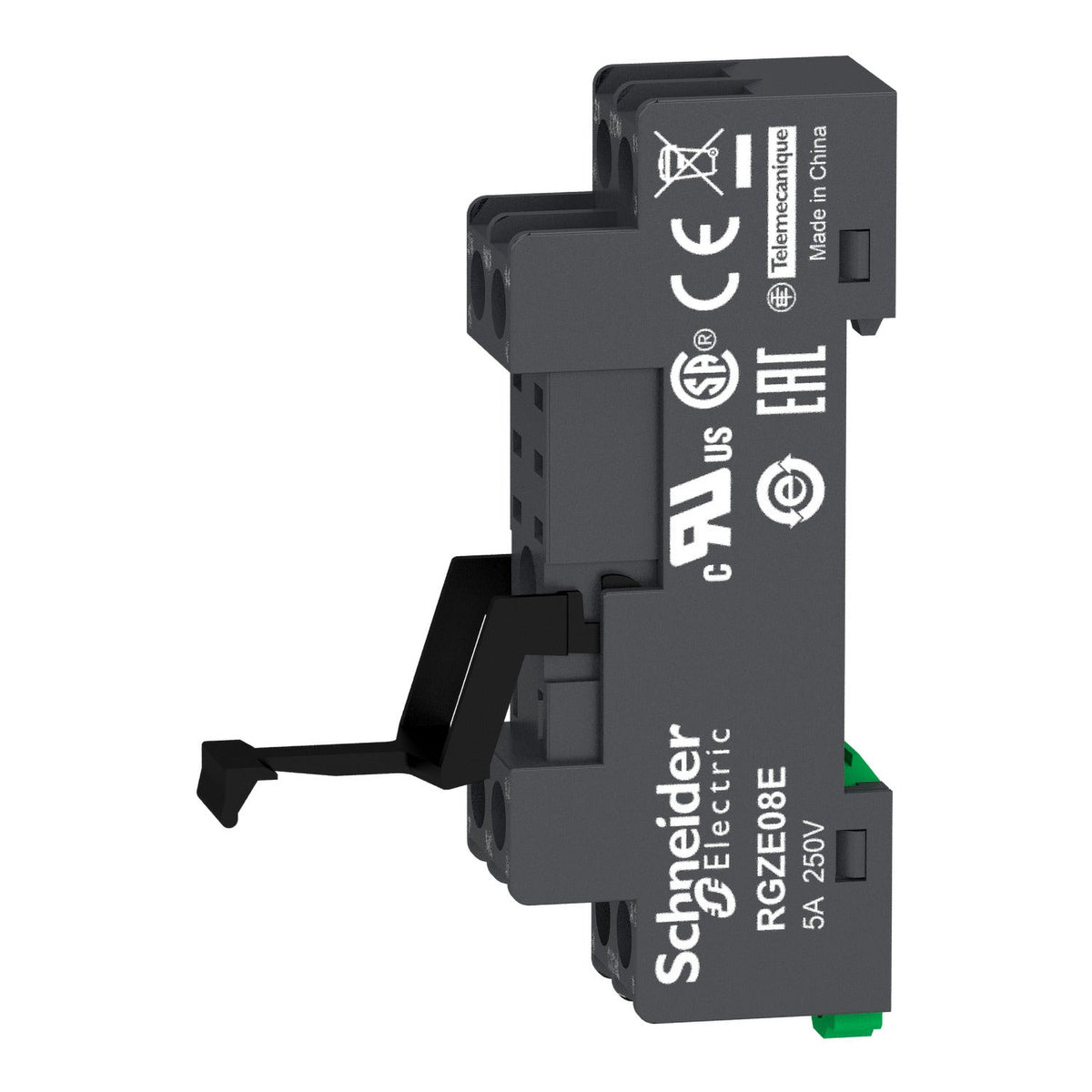

The Schneider Electric RGZE08E is a Harmony Electromechanical Relays socket with a built-in maintaining clamp, sized for 2 C/O RXG2 plug-in relays. It uses mixed screw terminals for tool-free relay insertion and removal, clips onto a 35 mm DIN rail, and carries an IP20 enclosure rating for standard control-panel environments.
Certifications & Standards
- CE
- CSA
- UL
- EAC
- IEC 61984
Selection Notes
The built-in maintaining clamp holds the plugged-in RXG2 relay against vibration without a separate retaining accessory, which is the main reason to specify RGZE08E over a plain clip-on socket. It is sized for the 2 C/O RXG2 relay only - the 1 C/O RXG1 relay needs the RGZE05E socket instead, so confirm the relay's contact count before ordering.
Specification
Full specification
Main 4
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXG with 2 C/O contact |
| [Ui] rated insulation voltage | 250 V |
Complementary 13
| [Uimp] rated impulse withstand voltage | 4 kV between coil and contact with basic insulation, 4 kV between poles with basic insulation, 4 kV between terminals and DIN rail with basic insulation |
|---|---|
| [Ue] rated operational voltage | 250 V conforming to IEC, 300 V conforming to UL |
| Dielectric strength | 4 kV between coil and contact with basic insulation, 3 kV between poles with basic insulation, 3 kV between terminals and DIN rail with basic insulation |
| Shape of pin | Flat |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.5...2 x 1 mm² (20 AWG...17 AWG) flexible with cable end, Screw terminals, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end, Screw terminals, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |
| Length | 69.6 mm |
| Contact terminal arrangement | Mixed |
| Overvoltage category | III |
| Pollution degree | 3 |
| Width | 16 mm |
| Height | 50.2 mm |
| Net weight | 0.026 kg |
Environment 7
| Standards | IEC 61984 |
|---|---|
| Product certifications | CSA, UL, EAC |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Relative humidity | 10…95 % |
Show all 53 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | RGZE08E |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.600 cm |
| Package 1 Width | 3.500 cm |
| Package 1 Length | 7.500 cm |
| Package 1 Weight | 25.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.000 cm |
| Package 2 Width | 7.800 cm |
| Package 2 Length | 16.500 cm |
| Package 2 Weight | 280.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 360 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 10.608 kg |
| Shipping weight | 0.026 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for RGZE08E
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- EAC
- IEC 61984
Quick answers
Questions about the RGZE08E
What is the HS code of RGZE08E for customs?
The tariff (HS) code on file for RGZE08E is 853690.
Where does RGZE08E ship from, and how fast?
RGZE08E ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
