- Part number
- RGZE05E
Description
About the RGZE05E
About the RGZE05E

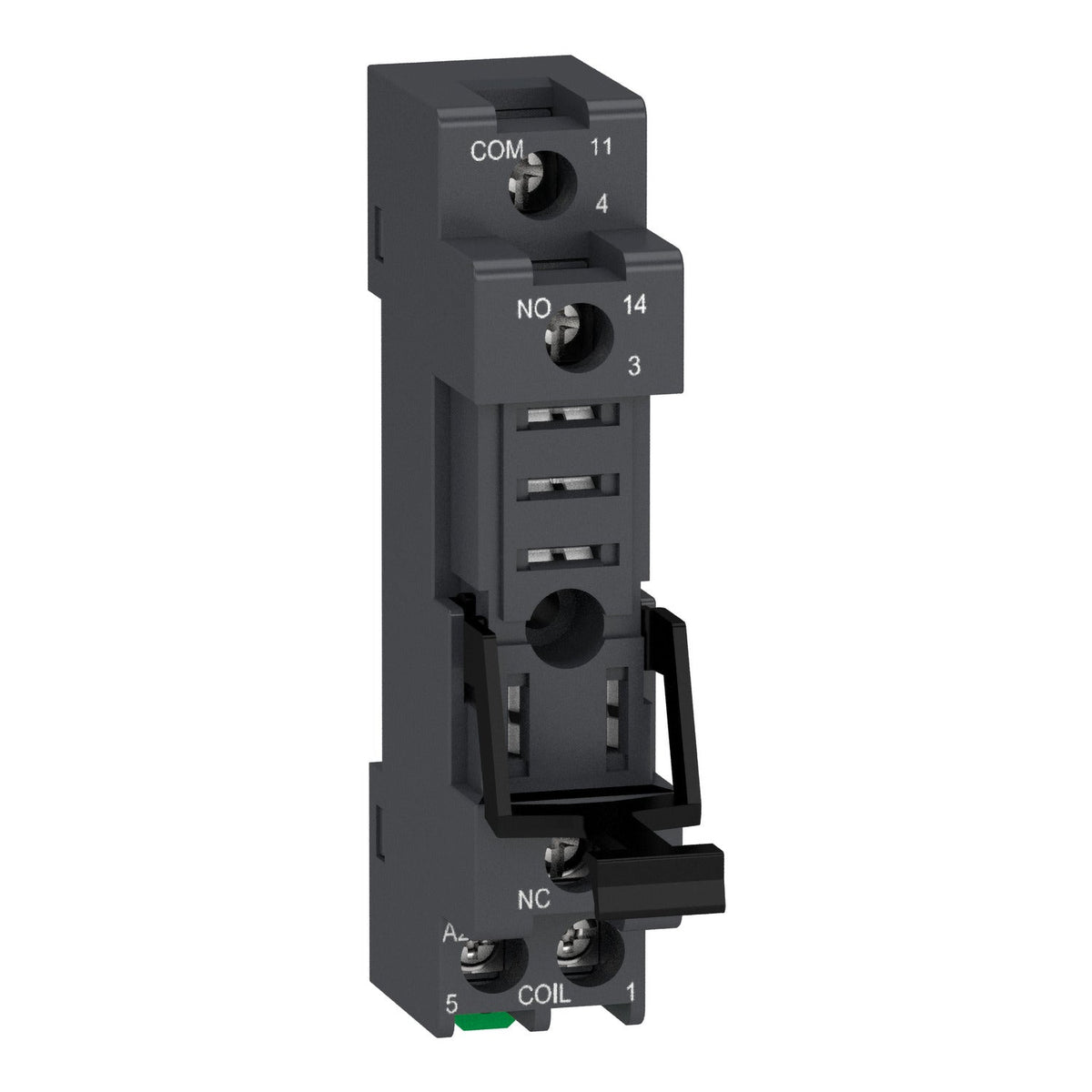

The Schneider Electric RGZE05E is a Harmony Electromechanical Relays socket with a built-in maintaining clamp, sized for 1 C/O RXG1 plug-in relays. It uses mixed screw terminals for tool-free relay insertion and removal, clips onto a 35 mm DIN rail, and carries an IP20 enclosure rating for standard control-panel environments.
Certifications & Standards
- CE
- CSA
- UL
- EAC
- IEC 61984
Selection Notes
The built-in maintaining clamp holds the plugged-in RXG1 relay against vibration without a separate retaining accessory, which is the main reason to specify RGZE05E over a plain clip-on socket. It is sized for the 1 C/O RXG1 relay only - the 2 C/O RXG2 relay needs the RGZE08E socket instead, so confirm the relay's contact count before ordering.
Specification
Full specification
Main 4
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXG with 1 C/O contact |
| [Ui] rated insulation voltage | 250 V |
Complementary 13
| [Uimp] rated impulse withstand voltage | 4 kV between coil and contact with basic insulation, 4 kV between terminals and DIN rail with basic insulation |
|---|---|
| [Ue] rated operational voltage | 250 V conforming to IEC, 300 V conforming to UL |
| Dielectric strength | 4 kV between coil and contact with basic insulation, 3 kV between terminals and DIN rail with basic insulation |
| Shape of pin | Flat |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.5...2 x 1 mm² (20 AWG...17 AWG) flexible with cable end, Screw terminals, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end, Screw terminals, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |
| Length | 69.6 mm |
| Contact terminal arrangement | Mixed |
| Overvoltage category | III |
| Pollution degree | 3 |
| Width | 16 mm |
| Height | 50.2 mm |
| Net weight | 0.024 kg |
Environment 7
| Standards | IEC 61984 |
|---|---|
| Product certifications | CSA, UL, EAC |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Relative humidity | 10…95 % |
Show all 53 specifications ↓ Show less ↑29 more values in Identification, Contractual warranty, Logistics.
Identification 6
| Part number | RGZE05E |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.700 cm |
| Package 1 Width | 3.400 cm |
| Package 1 Length | 7.400 cm |
| Package 1 Weight | 23.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 4.100 cm |
| Package 2 Width | 8.200 cm |
| Package 2 Length | 16.700 cm |
| Package 2 Weight | 263.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 360 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 10.007 kg |
| Shipping weight | 0.024 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
