RE48ATM12MW
$96.46 On request Dispatch — · From TürkiyeGet a Quote
Harmony Timer Relays

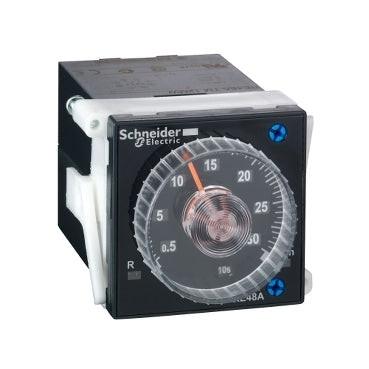

Schneider Electric RE48ATM12MW Harmony RE48 5A 2CO On-Delay Timer Relay

Harmony RE48 on-delay plug-in timer relay, 5 A 2 C/O contacts, 24-240 V AC/DC, single power-on-delay function, 0.02s-300h range.

Rated current
5 A
Rated operational voltage
24–240–DC V DC
EAN
3389110649727
Description

About the RE48ATM12MW

The Schneider Electric RE48ATM12MW is a Harmony RE48 on-delay plug-in timer relay with 2 C/O timed contacts rated 5 A, powered by a 24-240 V AC/DC universal supply. It runs a single power on-delay function (A1: delay on energization), with delay settings adjustable from 0.02 seconds to 300 hours via a front-panel selector, and mounts on an 8-pin sub-base.

Certifications & Standards

  • CE
  • UL
  • cULus
  • C-tick
  • CSA
  • 73/23/EEC
  • 93/68/EEC
  • EN 50082-1/2
  • 89/336/EEC
  • EN 50081-1/2
  • IEC 61812-1
  • IEC 60669-2-3

Selection Notes

Unlike the AMH13MW and AML12MW multifunction variants in the same RE48 family, this reference runs a single fixed timing function - power on-delay (A1) - rather than a selectable function set, which simplifies commissioning where only one delay behavior is ever needed; the front-panel selector still sets the delay range and value. It shares the same 8-pin sub-base as the RE48AMH13MW, so it drops into that socket where only on-delay timing is required. Two C/O contacts rated 5 A/250 V AC (1250 VA breaking capacity) drive a contactor coil or switch two independent circuits directly.

Applications

Used where a fixed power on-delay is the only timing behavior needed - staged equipment start-up, pump priming delay, or delaying an alarm output after power-up - on an 8-pin socket.

Specification

Full specification

70 values · Last verified 30 Oct 2026

Main 11

Range of Product Harmony Timer Relays
Electrical connection Plug-in sub-base 8
Width 1.9 in (48 mm)
Product or Component Type Panel-mounted/plug-in timer relay
Discrete output type Relay
Contacts type and composition 2 C/O timed contacts, AgNi (cadmium free)
Component name RE48
Time delay range 5...300 h, 2...120 min, 0.5...30 h, 0.2...12 h, 0.2...12 min, 0.2...12 s, 0.5...30 min, 2...120 h, 2...120 s, 0.02...1.2 s, 0.5...30 s, 5...300 s, 0.05...3 s, 5...300 min
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz
Voltage range 0.85...1.1 Us AC, 0.9...1.1 Us DC
Line Rated Current 5 A

Complementary 29

Product front plate size 48 x 48 mm
Control type Selector switch front panel
Housing material Polycarbonate
Repeat accuracy +/- 0.2 % of the maximum setting value IEC 61812-1
Temperature drift +/- 0.02 %/°C of the maximum setting value IEC 61812-1
Voltage drift +/- 0.2 %/V of the maximum setting value 48...240 V, +/- 1 %/V of the maximum setting value 24...48 V
Setting accuracy of time delay +/- 5 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
Time delay type Power on-delay - A1- Delay on energization
Minimum pulse duration 20 ms
Reset time 25 ms on de-energisation
Pick up duration 55 ms
On-load factor 100 %
Power consumption in VA 6 VA 240 V
Power consumption in W 2 W 240 V
Breaking capacity 1250 VA
minimum switching current 100 mA
Maximum switching current 5 A
Maximum switching voltage 250 V AC/DC
Electrical durability 100000 cycles
Mechanical durability 30000000 cycles
Output voltage 240 V 5 A AC-12, 30 V 2 A DC-13, 240 V 1.5 A AC-15
Marking CE
Surge withstand 1 kV differential mode IEC 61000-4-5 level 3, 2 kV common mode IEC 61000-4-5 level 3
Mounting Support Panel mounted: system supplied with the product, Base mounted: socket
Local signalling 1 LED (yellow) for output relay state, LED indicator (green) for flashing: relay energised timing in progress, LED indicator (green) for on steady: relay energised, no timing in progress
Function available A1- Delay on energization-2 C/O, A2- Delay on energization-2 C/O, H1-Pulse-on energization-2 C/O, H2-Pulse-on energization-2 C/O
Net Weight 0.31 lb(US) (0.14 kg)
Shape of pin Cylindrical
Number of functions 1

Environment 17

Humidity drift +/- 0.05 %/%RH of the maximum setting value IEC 61812-1
Immunity to microbreaks 5 ms
Dielectric strength 2 kV 1 mA/1 minute IEC 61812-1
Protection against electric shocks 4 kV class III IEC 60664-1, 4 kV class III IEC 61812-1
Standards 73/23/EEC, 93/68/EEC, EN 50082-1/2, 89/336/EEC, EN 50081-1/2, IEC 61812-1, IEC 60669-2-3
Product Certifications UL, cULus, C-tick, CSA
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -4…122 °F (-20…50 °C)
IP degree of protection IP40 IEC 60529 housing), IP50 IEC 60529 front face)
Vibration resistance 0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
Relative Humidity 93 % without condensation IEC 60068-2-3
Resistance to electrostatic discharge 6 kV in contact IEC 61000-4-2 level 3, 8 kV in air IEC 61000-4-2 level 3
Resistance to electromagnetic fields 9.1 V/m (10 V/m) 26 MHz to 1 GHz IEC 61000-4-3 level 3
Resistance to fast transients 2 kV IEC 61000-4-4 level 3 direct), 4 kV IEC 61000-4-4 level 4 direct)
Immunity to radioelectric fields 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Immunity to voltage dips 30 % / 10 ms IEC 61000-4-11, 95 % / 5 s IEC 61000-4-11, 60 % / 100 ms IEC 61000-4-11
Disturbance radiated/conducted Class B 0.15...30 MHz EN 55022 (EN 55011 group 1)
Show all 70 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number RE48ATM12MW
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3389110649727

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.14 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for RE48ATM12MW
