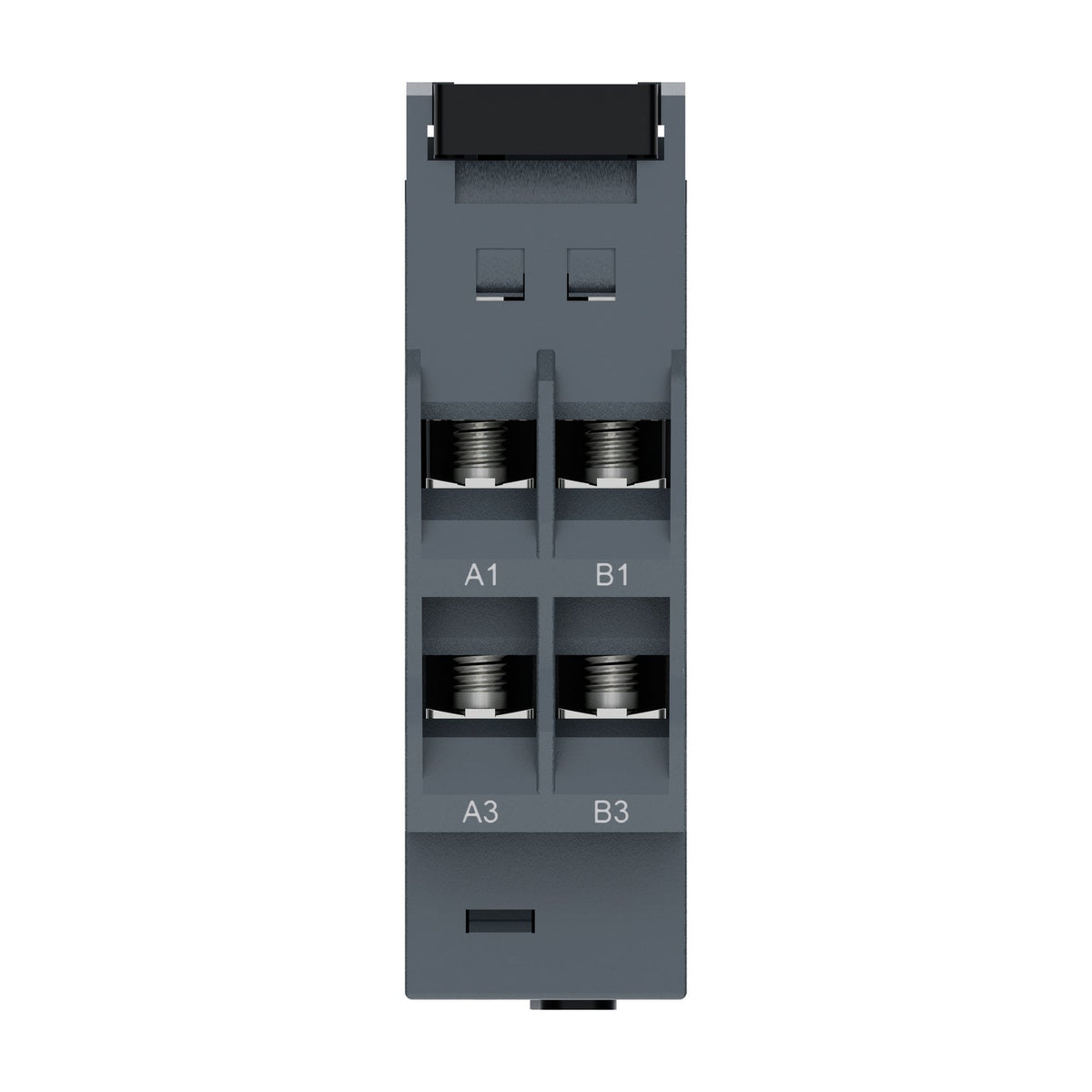

Schneider Electric RE10RCMUN Harmony Timer Relay Off-Delay 0.1s-30h 24V AC/DC 240V AC 1 CO Timer Relay

The Schneider Electric RE10RCMUN is a Harmony modular timing relay with the C (off-delay with control signal) time function, supplied by 24 V AC/DC or 240 V AC and adjustable from 0.1 seconds to 30 hours. It switches one 5 A changeover contact and fits a 17.5 mm wide DIN rail housing alongside other Harmony timer relays.

Technical Specifications

Certifications & Standards

• CE
• cULus
• CCC
• UKCA
• IEC 61812-1

Selection Notes

The C function needs a control signal applied first; the output contact energises immediately with that signal and drops out only after the set delay once the signal is removed, which suits conveyor coast-down or fan overrun timing where the load must keep running briefly after the command stops. Pick the RE10RCMUN over the RE10RAMUN on-delay sibling whenever the timed event is the stop, not the start. Both share the same 24 V AC/DC / 240 V AC dual supply rating and 17.5 mm housing, so swapping between the two functions on an existing DIN rail layout needs no rewiring beyond the relay itself.
