Schneider Electric RE48ASOC11AR Harmony Timer Relays RE48 11-Pin IP20 Socket Relay Socket

% $-17.46

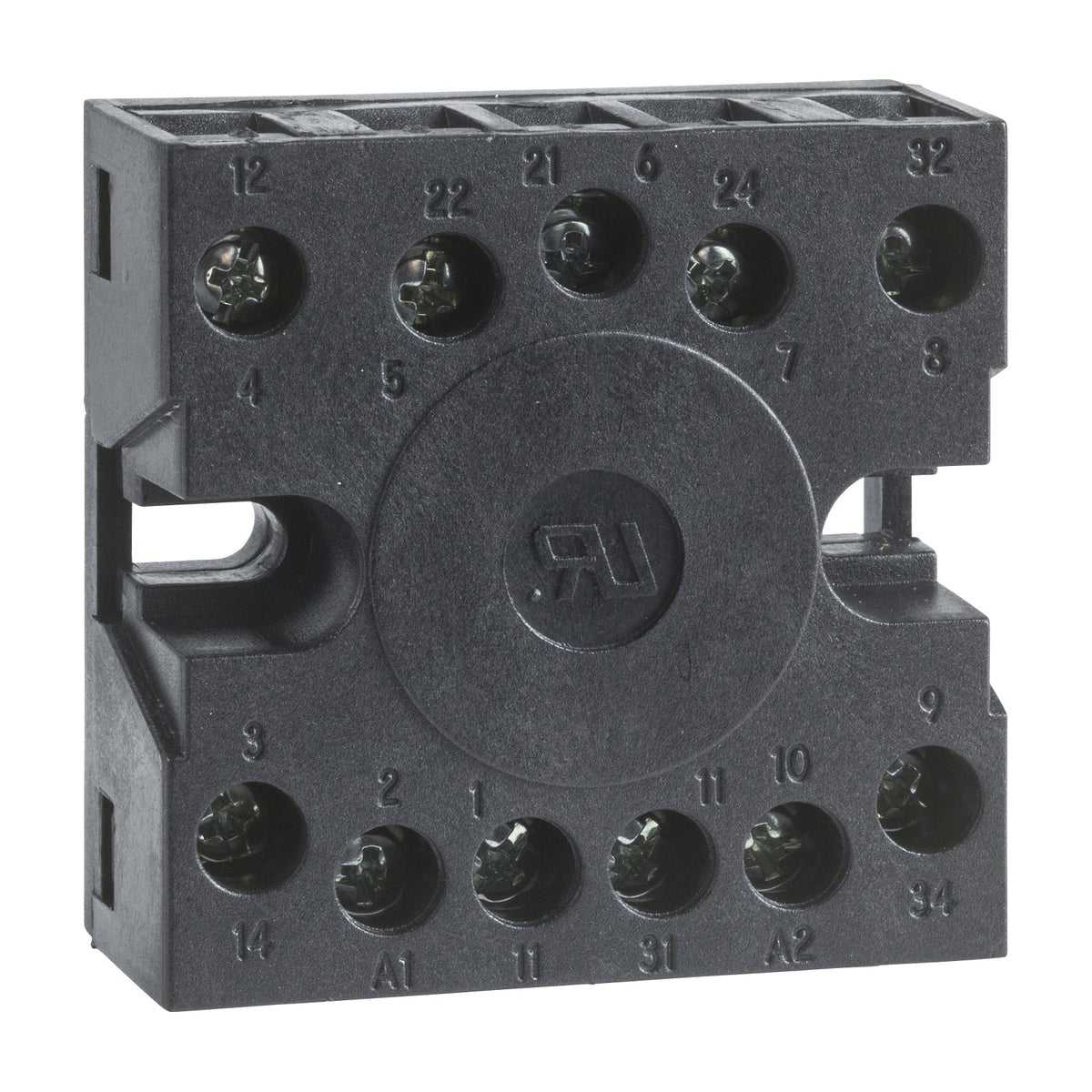

Schneider Electric RE48ASOC11AR 11-pin socket for RE48 Harmony timer relays
Schneider Electric RE48ASOC11AR 11-pin socket for RE48 Harmony timer relays

Schneider Electric RE48ASOC11AR Harmony Timer Relays RE48 11-Pin IP20 Socket Relay Socket

Brand: Schneider Electric
Reference No: RE48ASOC11AR
Catalog No: RE48ASOC11AR
Series: Harmony Timer Relays
Tariff Code (HS): 853690
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$17.46

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric RE48ASOC11AR is an 11-pin IP20 socket from the Harmony Timer Relays range, built to accept the RE48ACV12MW and RE48AML12MW plug-in timer relays. Screw-terminal connections are made on the rear face rather than the front, and the socket carries a 2 C/O contact arrangement with cylindrical pins in a mixed terminal layout suited to standard DIN rail control-panel wiring practice.

Technical Specifications

Reference RE48ASOC11AR
Brand Schneider Electric
GTIN 3389110740851
Range of Product Harmony Timer Relays
Product or Component Type Socket
Product Compatibility RE48ACV12MW, RE48AML12MW
Accessory Designation IP20 socket with screw terminal connections on rear face
Pin Number 11 pins
Contacts Type and Composition 2 C/O
Shape of Pin Cylindrical
Contact Terminal Arrangement Mixed
IP Degree of Protection IP20
Country of Origin France

Selection Notes

This socket's 2 C/O, 11-pin layout is sized for the RE48 family of plug-in timer relays specifically, not the smaller RE10 or RE17 series, so confirm the mounted relay is an RE48ACV12MW or RE48AML12MW before ordering. Rear-face screw terminals keep the field wiring behind the DIN rail panel while the relay itself remains front-accessible for tool-free removal and replacement.

Technical Details

Short Description
11-pin IP20 socket for RE48 Harmony timer relays, screw terminals rear face, 2 C/O.
Mounting Type
DIN rail socket, rear-face screw terminals
Protection Type
IP20
Catalog No
RE48ASOC11AR
Delivery Date (Days)
30 days
Model Number
RE48
Tariff Code
853690
