Harmony Timer Relays

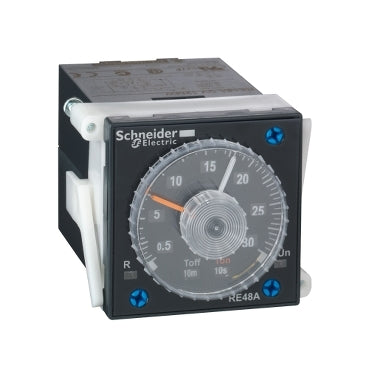

Schneider Electric RE48ACV12MW Harmony RE48A 5A Asymmetrical Flashing 24-240V AC/DC Multifunction Timer Relay

Harmony RE48A plug-in timer relay, asymmetrical flashing, 2 C/O contacts, 5A, 24-240V AC/DC.

Rated current
5 A
Rated operational voltage
24–240–DC V DC
EAN
3389110649741
Description

About the RE48ACV12MW

The Schneider Electric RE48ACV12MW is a Harmony RE48A panel-mounted, plug-in timer relay offering asymmetrical-flashing timing across 2 C/O contacts rated 5 A. Time delay is adjustable from 0.02 seconds to 300 hours in 14 ranges, and it accepts a universal 24-240 V AC/DC 50/60 Hz supply through an 11-pin sub-base.

Certifications & Standards

  • CE
  • UL
  • C-tick
  • cULus
  • CSA
  • EN 50081-1/2
  • EN 50082-1/2
  • IEC 61812-1
  • 93/68/EEC
  • 89/336/EEC
  • IEC 60669-2-3
  • 73/23/EEC

Selection Notes

RE48A uses a 48x48 mm panel-mount front plate on an 11-pin sub-base rather than the RE22's DIN-rail body, so pick it for door-mounted panels where the relay is serviced by pulling it from a socket. It gives 2 independent C/O contacts at 5 A each, versus RE22's single 8 A contact - choose RE48A when two flashing outputs are needed at once, such as separate indicator and alarm circuits, even at the lower per-contact rating.

Specification

Full specification

70 values · Last verified 30 Oct 2026

Main 11

Range of Product Harmony Timer Relays
Electrical connection Plug-in sub-base 11
Width 1.9 in (48 mm)
Product or Component Type Panel-mounted/plug-in timer relay
Discrete output type Relay
Contacts type and composition 2 C/O timed contacts, AgNi (cadmium free)
Component name RE48A
Time delay range 0.2...12 min, 5...300 s, 0.02...1.2 s, 0.5...30 min, 5...300 h, 0.2...12 h, 0.2...12 s, 0.5...30 s, 2...120 s, 0.05...3 s, 2...120 min, 5...300 min, 0.5...30 h, 2...120 h
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz
Voltage range 0.85...1.1 Us AC, 0.9...1.1 Us DC
Line Rated Current 5 A

Complementary 29

Product front plate size 48 x 48 mm
Control type Selector switch front panel
Housing material Polycarbonate
Repeat accuracy +/- 0.2 % of the maximum setting value IEC 61812-1
Temperature drift +/- 0.02 %/°C of the maximum setting value IEC 61812-1
Voltage drift +/- 0.2 %/V of the maximum setting value 48...240 V, +/- 1 %/V of the maximum setting value 24...48 V
Setting accuracy of time delay +/- 5 % of full scale 25 °C IEC 61812-1, +/- 10 % of full scale 25 °C IEC 61812-1
Time delay type Asymmetrical flashing - L- Asymmetrical flashing relay (starting pulse-off), Asymmetrical flashing - Li- Asymmetrical flashing relay (starting pulse-on)
Minimum pulse duration 20 ms
Reset time 25 ms on de-energisation
Pick up duration 55 ms
On-load factor 100 %
Power consumption in VA 6 VA 240 V
Power consumption in W 2 W 240 V
Breaking capacity 1250 VA
minimum switching current 100 mA
Maximum switching current 5 A
Maximum switching voltage 250 V AC/DC
Electrical durability 100000 cycles
Mechanical durability 30000000 cycles
Output voltage 240 V 5 A AC-12, 30 V 2 A DC-13, 240 V 1.5 A AC-15
Marking CE
Surge withstand 1 kV differential mode IEC 61000-4-5 level 3, 2 kV common mode IEC 61000-4-5 level 3
Mounting Support Base mounted: socket, Panel mounted: system supplied with the product
Local signalling 1 LED (yellow) for output relay state, LED indicator (green) for flashing: relay energised timing in progress, LED indicator (green) for on steady: relay energised, no timing in progress
Function available L- Asymmetrical flashing relay (starting pulse-off)-2 C/O, Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O
Net Weight 0.31 lb(US) (0.14 kg)
Shape of pin Cylindrical
Number of functions 2

Environment 17

Humidity drift +/- 0.05 %/%RH of the maximum setting value IEC 61812-1
Immunity to microbreaks 5 ms
Dielectric strength 2 kV 1 mA/1 minute IEC 61812-1
Protection against electric shocks 4 kV class III IEC 60664-1, 4 kV class III IEC 61812-1
Standards EN 50081-1/2, EN 50082-1/2, IEC 61812-1, 93/68/EEC, 89/336/EEC, IEC 60669-2-3, 73/23/EEC
Product Certifications UL, C-tick, cULus, CSA
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation -4…122 °F (-20…50 °C)
IP degree of protection IP40 IEC 60529 housing), IP50 IEC 60529 front face)
Vibration resistance 0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
Relative Humidity 93 % without condensation IEC 60068-2-3
Resistance to electrostatic discharge 6 kV in contact IEC 61000-4-2 level 3, 8 kV in air IEC 61000-4-2 level 3
Resistance to electromagnetic fields 9.1 V/m (10 V/m) 26 MHz to 1 GHz IEC 61000-4-3 level 3
Resistance to fast transients 2 kV IEC 61000-4-4 level 3 direct), 4 kV IEC 61000-4-4 level 4 direct)
Immunity to radioelectric fields 10 V 0.15...80 MHz)IEC 61000-4-6 level 3
Immunity to voltage dips 30 % / 10 ms IEC 61000-4-11, 95 % / 5 s IEC 61000-4-11, 60 % / 100 ms IEC 61000-4-11
