Part number
RE22R1MLMR
Model no
RE22
$78.75 On request Dispatch — · From TürkiyeGet a Quote
Harmony Timer Relays

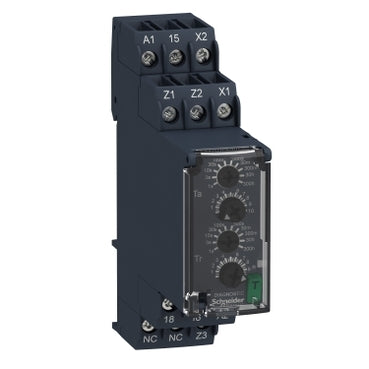

Schneider Electric RE22R1MLMR Harmony RE22 8A Asymmetrical Flashing 24-240V AC/DC Multifunction Timer Relay

Harmony RE22 multifunction timer relay, 4 asymmetrical-flashing functions, 8A output, 24-240V AC/DC.

Rated current
8 A
Rated operational voltage
24–240–DC V DC
EAN
3606480792441
Description

About the RE22

The Schneider Electric RE22R1MLMR is a Harmony RE22 multifunction timer relay offering 4 selectable asymmetrical-flashing functions through a single 1 C/O contact rated 8 A. Time delay is adjustable from 0.05 seconds to 300 hours, and the universal 24-240 V AC/DC 50/60 Hz supply lets one part cover most control-voltage installations.

Certifications & Standards

  • EAC
  • UL
  • GL
  • CSA
  • RCM
  • CCC
  • CE
  • IEC 61812-1
  • UL 508

Selection Notes

RE22's 4 selectable functions decode as L (asymmetrical flashing, starting pulse-off), Li (starting pulse-on), and Lt/Lit (the same two with an added pause/summation input) - one part covers all four instead of stocking four single-function relays. At 8 A on 1 C/O, it carries more current per contact than the RE48A's 5 A/2 C/O; pick RE22 when a single flashing output at higher current is enough, and RE48A when two independent outputs are needed on the same relay.

Specification

Full specification

70 values · Last verified 30 Oct 2026

Main 5

Range of Product Harmony Timer Relays
Discrete output type Relay
Product or Component Type Modular timing relay
Device short name RE22
nominal output current 8 A

Complementary 39

Contacts type and composition 1 C/O timed contact, cadmium free
Time delay type Asymmetrical flashing
Time delay range 0.05...1 s, 30...300 min, 30...300 h, 30...300 s, 3...30 h, 0.3...3 s, 3...30 min, 3...30 s, 10...100 s, 1...10 s
Control type Rotary knob, Diagnostic button, Potentiometer external
[Us] rated supply voltage 24...240 V AC/DC 50/60 Hz
Release input voltage <= 2.4 V
Voltage range 0.85...1.1 Us
Supply frequency 50...60 Hz +/- 5 %
Connections - terminals Screw terminals, 1 x 0.5...1 x 3.3 mm² 20 AWG...12 AWG) solid without cable end, Screw terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable end, Screw terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable end, Screw terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end
Tightening torque 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material Polycarbonate
Repeat accuracy +/- 0.5 % IEC 61812-1
Temperature Drift +/- 0.05 %/°C
Voltage drift +/- 0.2 %/V
Setting accuracy of time delay +/- 10 % of full scale 25 °C IEC 61812-1
Control signal pulse width 100 ms with load in parallel, 30 ms
Insulation resistance 100 MOhm 500 V DC IEC 60664-1
Recovery time 120 ms on de-energisation
Immunity to microbreaks 10 ms
Power consumption in VA 3 VA 240 V AC
Power consumption in W 1.5 W 240 V DC
Switching capacity in VA 2000 VA
Minimum switching current 10 mA 5 V DC
Maximum switching current 8 A
Maximum switching voltage 250 V AC
Electrical durability 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1
Mechanical durability 10000000 cycles
Rated impulse withstand voltage 5 kV 1.2…50 µs IEC 60664-1
Power on delay 100 ms
Creepage distance 4 kV/3 IEC 60664-1
Overvoltage category III conforming to IEC 60664-1
Safety reliability data MTTFd = 194 years, B10d = 180000
Mounting position Any position
Mounting support 35 mm DIN rail conforming to IEC 60715
Status LED Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED slow flashing)timing in progress and output relay energised
Function available L- Asymmetrical flashing relay (starting pulse-off)-1 C/O, Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-1 C/O, Li- Asymmetrical flashing relay (starting pulse-on)-1 C/O, Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-1 C/O
Width 0.9 in (22.5 mm)
Net Weight 0.2 lb(US) (0.1 kg)
Number of functions 4

Environment 12

Dielectric strength 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Standards IEC 61812-1, UL 508
Directives 2004/108/EC - electromagnetic compatibility, 2006/95/EC - low voltage directive
Product Certifications EAC, UL, GL, CSA, RCM, CCC, CE
Ambient Air Temperature for Operation -4…140 °F (-20…60 °C)
Ambient Air Temperature for Storage -40…158 °F (-40…70 °C)
IP degree of protection IP40 housing: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529
Pollution degree 3 IEC 60664-1
Vibration resistance 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6
Shock resistance 15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
Relative humidity 95 % 77…131 °F (25…55 °C)
Electromagnetic compatibility Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
Show all 70 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.

Identification 8

Part number RE22R1MLMR
Type designation RE22
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606480792441

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin ID
Shipping weight 0.1 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026
