- Part number
- PKY32W435
- Model no
- Mureva socket
Description
About the Mureva socket
About the Mureva socket

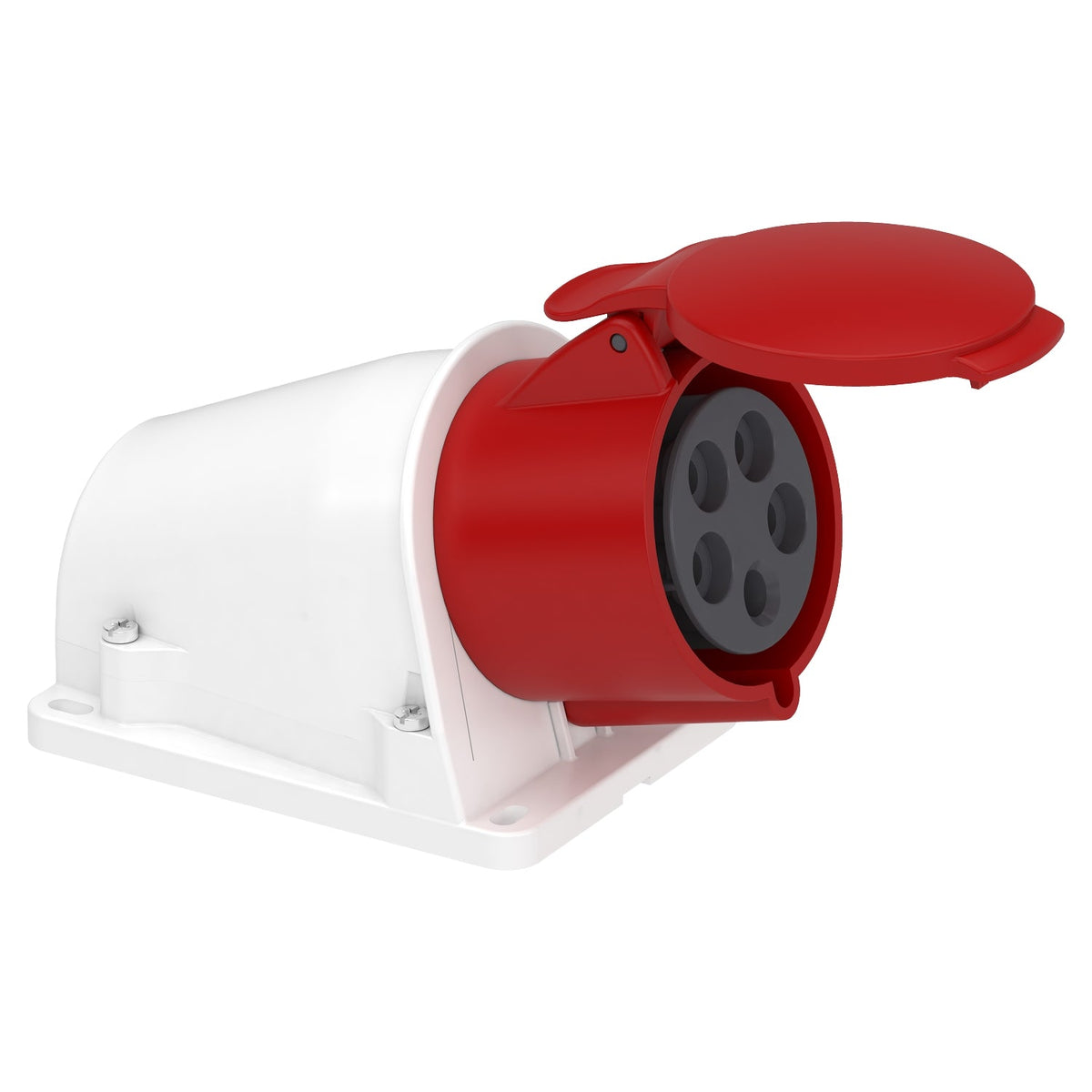

The Schneider Electric PKY32W435 is a PratiKa wall-mounted socket for 32 A, 3P+N+E circuits operating at 380-415 V AC. Its angled body fastens to a wall or enclosure, using fast-connection terminals through an M25 gland for 2.5-6 mm² conductors on all four poles. The IP44-rated, self-extinguishing polymer housing carries an IK08 impact rating, with red voltage-identification coding for the 400 V range.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
The neutral pole lets this fixed socket feed equipment that needs 230 V phase-to-neutral alongside 400 V three-phase power, unlike the 3P+E wall-mounted version. IP44 covers indoor mounting; a sealed PratiKa socket with the same 3P+N+E, 32 A rating is the better choice for washdown or outdoor installation. The M25 gland accepts 2.5-6 mm² conductors across all four poles.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Mounting mode | Wall-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 2.5…6 mm² |
| Cable outer diameter | 21 mm |
| Thread type | M25 |
| Net weight | 0.33 kg |
| Height | 160 mm |
| Width | 106 mm |
| Depth | 149 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 6
| Standards | IEC 60309-2, IEC 60309-1 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 750 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKY32W435 |
|---|---|
| Type designation | Mureva socket |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 12.500 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 304.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 18.000 cm |
| Package 2 Width | 26.200 cm |
| Package 2 Length | 27.400 cm |
| Package 2 Weight | 1.988 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 12 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.463 kg |
| Shipping weight | 0.33 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKY32W435
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-2
- IEC 60309-1
Quick answers
Questions about the Mureva socket
What is the rated current of Mureva socket?
The rated current of Mureva socket is 32 A.
Which supply voltage is Mureva socket rated for?
The rated operational voltage of Mureva socket is 380–415 V AC.
What is the HS code of Mureva socket for customs?
The tariff (HS) code on file for Mureva socket is 853669.
Where does Mureva socket ship from, and how fast?
Mureva socket ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
