- Part number
- PKY32M735
- Model no
- Mureva fast
Description
About the Mureva fast
About the Mureva fast

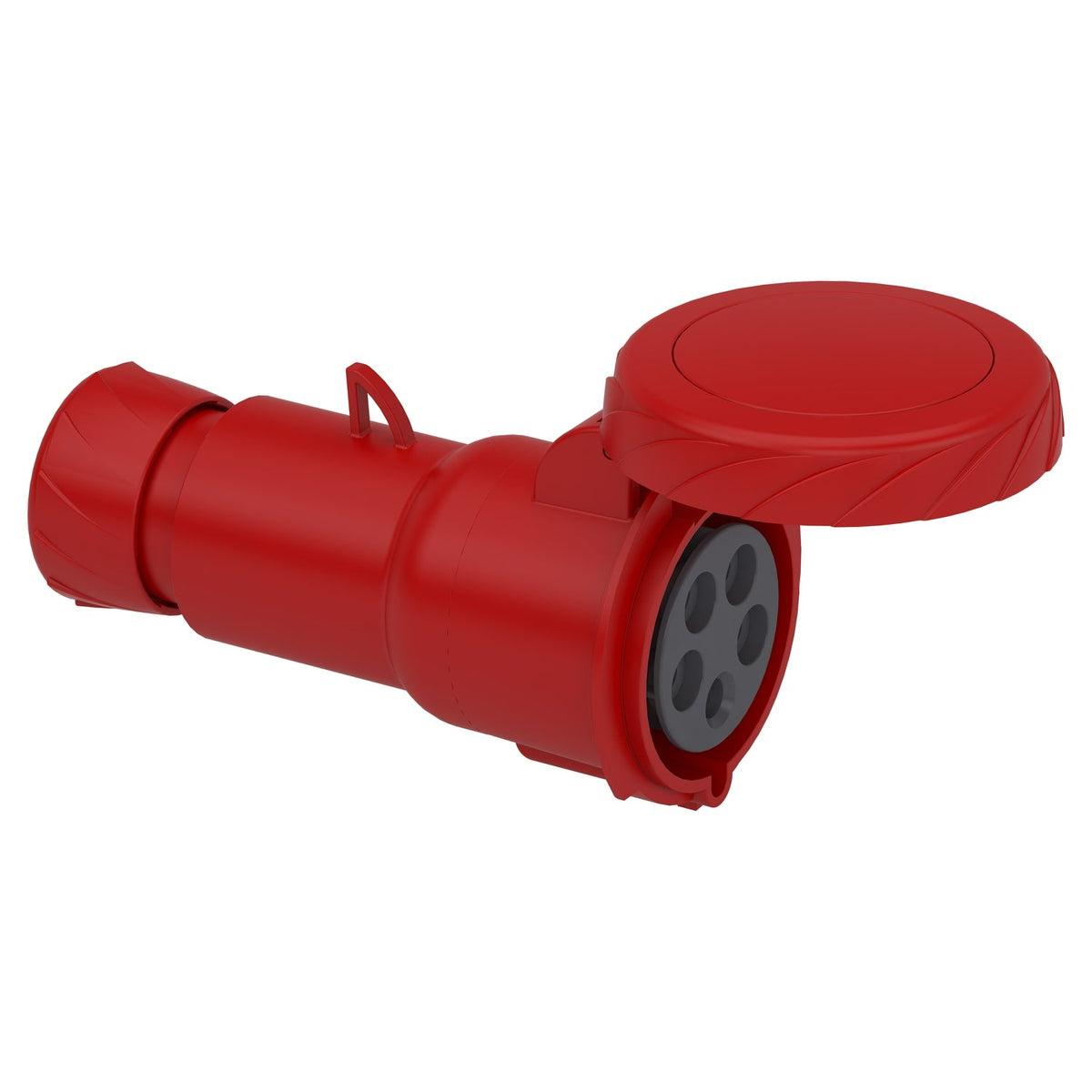

The Schneider Electric PKY32M735 is a PratiKa wander socket for 32 A, 3P+N+E extension cords operating at 380-415 V AC. It mounts in-line on flexible cable runs, using fast-connection terminals for 2.5-6 mm² conductors on all four poles through a Pg 21 cable gland. The IP67-rated, self-extinguishing polymer housing and IK08 impact rating suit washdown and outdoor three-phase-plus-neutral runs, with red voltage coding for the 400 V range.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
The neutral pole lets this socket feed equipment that needs 230 V phase-to-neutral alongside 400 V three-phase power, unlike the 3P+E version in the same IP67 family. IP67 seals the connector for outdoor cable runs and washdown areas; choose the IP44 socket with the same 3P+N+E, 32 A rating for dry indoor panels where sealing against jetting water is unnecessary. The Pg 21 gland accepts 2.5-6 mm² conductors on all four poles.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| Device short name | Mureva fast |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 2.5…6 mm² |
| Cable outer diameter | 11.5…21 mm |
| cable entry | Cable gland |
| Thread type | Pg 21 |
| Net weight | 0.361 kg |
| Height | 104 mm |
| Width | 104 mm |
| Depth | 173 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 6
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKY32M735 |
|---|---|
| Type designation | Mureva fast |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 17.500 cm |
| Package 1 Weight | 330.400 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 17.500 cm |
| Package 2 Width | 26.500 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 2.136 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 12 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.703 kg |
| Shipping weight | 0.361 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKY32M735
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the Mureva fast
What is the rated current of Mureva fast?
The rated current of Mureva fast is 32 A.
Which supply voltage is Mureva fast rated for?
The rated operational voltage of Mureva fast is 380–415 V AC.
What is the HS code of Mureva fast for customs?
The tariff (HS) code on file for Mureva fast is 853669.
Where does Mureva fast ship from, and how fast?
Mureva fast ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
