Schneider Electric PKY32W434 PratiKa Industrial Socket Wall Mounted 32 A 3P+E 380-415 V IP44 Industrial Socket

% $-22.93

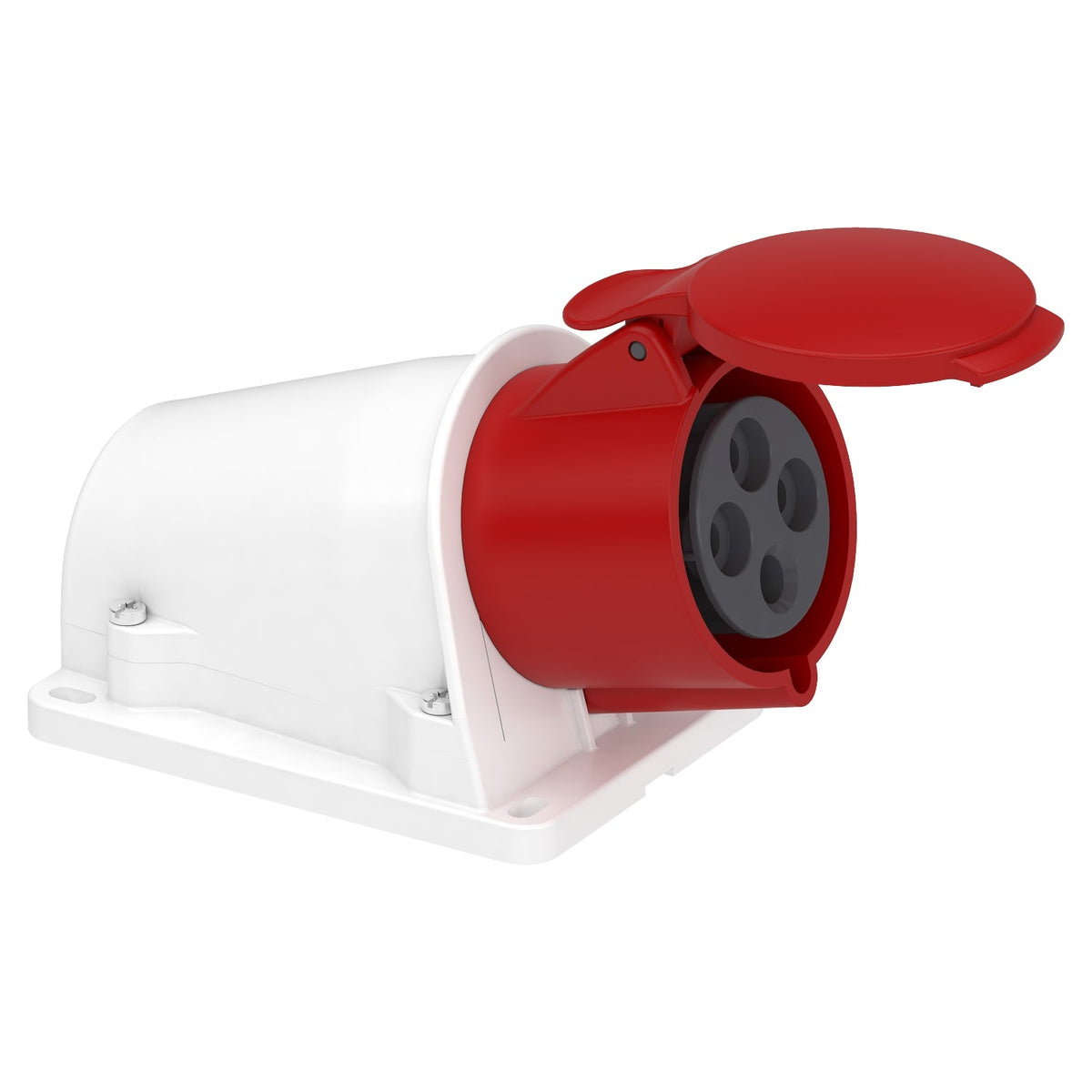

Schneider Electric PKY32W434 PratiKa wall-mounted socket 3P+E 32A 380-415V IP44
Schneider Electric PKY32W434 PratiKa wall-mounted socket 3P+E 32A 380-415V IP44

Schneider Electric PKY32W434 PratiKa Industrial Socket Wall Mounted 32 A 3P+E 380-415 V IP44 Industrial Socket

Brand: Schneider Electric
Reference No: PKY32W434
Catalog No: PKY32W434
Tariff Code (HS): 853669
Rated Current: 32 A
Rated Voltage: 380-415 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$22.93

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric PKY32W434 is a PratiKa wall-mounted socket for 32 A, 3P+E circuits operating at 380-415 V AC. Its angled body fastens to a wall or enclosure, using fast-connection terminals through an M25 gland for 2.5-6 mm² conductors. The IP44-rated, self-extinguishing polymer housing carries an IK08 impact rating, with red voltage-identification coding for the 400 V three-phase range.

Technical Specifications

Reference PKY32W434
Brand Schneider Electric
Range PratiKa
Product or component type Socket
Mounting mode Wall-mounted
Shape Angled
Poles 3P+E
Network type AC
Rated current 32 A
Rated operational voltage 380-415 V
Network frequency 50/60 Hz
Ground lug clock position 6 h
Connection Fast connection
Cable cross section 2.5-6 mm²
Cable outer diameter 21 mm
Thread type M25
Housing material Self-extinguishing engineering polymer
Contacts (sleeves) Brass
Colour Grey (RAL 7035)
Voltage colour Red
IP rating IP44
IK rating IK08
Fire resistance 750°C
Dimensions (H x W x D) 160 x 106 x 145 mm
Weight 0.3 kg

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

The 3P+E poles carry three-phase power without a neutral; pick the 3P+N+E wall-mounted socket in the same angled, IP44 family when the fixed load also needs a neutral return. IP44 covers indoor mounting; a sealed PratiKa socket is the better choice for washdown or outdoor installation. The M25 gland accepts 2.5-6 mm² conductors across all three phase poles plus earth.

Technical Details

Short Description
PratiKa wall-mounted socket, 32 A 3P+E, 380-415 V AC, IP44, angled, fast-connection terminals.
Rated Current (Ampere)
32 A
Rated Voltage (VAC)
380-415 V
Mounting Type
Wall-mounted
Protection Type
IP44
Catalog No
PKY32W434
Delivery Date (Days)
30 days
Model Number
PratiKa
Tariff Code
853669
