- Part number
- PKY32M435
- Model no
- Mureva fast
Description
About the Mureva fast
About the Mureva fast

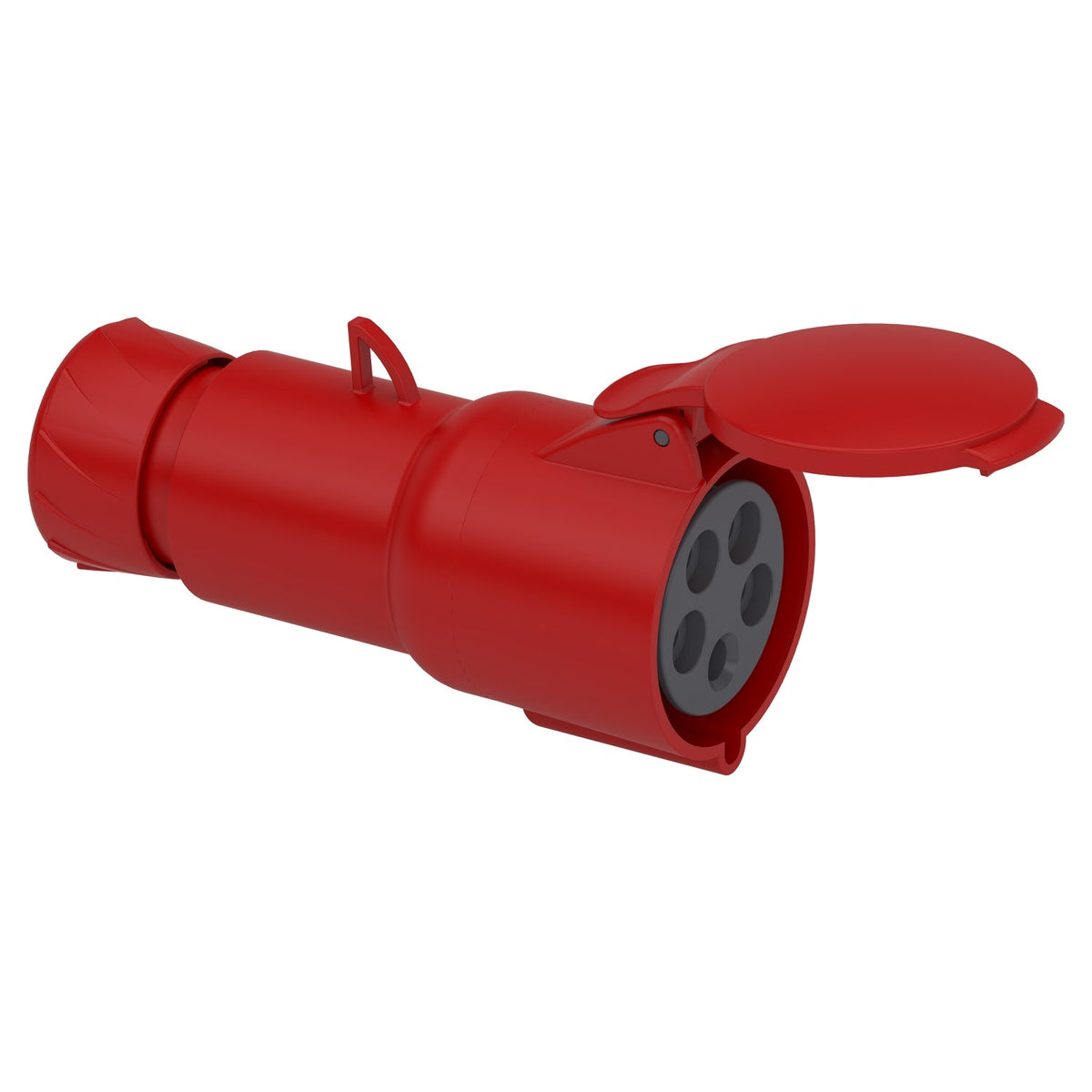

The Schneider Electric PKY32M435 is a Mureva PK wander socket for 32 A, 3P+N+E extension cords operating at 380-415 V AC. It mounts in-line on flexible cable runs, using fast-connection terminals for 2.5-6 mm² conductors, and adds a neutral pole for loads that mix three-phase and single-phase circuits. The IP44-rated, self-extinguishing polymer housing carries an IK08 impact rating and red voltage coding for the 400 V range.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
The extra neutral pole over the 3P+E version lets this socket feed equipment that draws 230 V phase-to-neutral alongside 400 V three-phase power from the same connector, so pick it whenever the downstream load needs that neutral return. IP44 suits indoor panel and workshop runs; the IP67 variant with the same 3P+N+E, 32 A rating is the better choice for washdown or outdoor cable extensions. The Pg 21 fast-connection gland takes 2.5-6 mm² conductors on all four poles.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| Device short name | Mureva fast |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 2.5…6 mm² |
| Cable outer diameter | 11.5…21 mm |
| cable entry | Fair lead, Cable gland |
| Thread type | Pg 21 |
| Net weight | 0.305 kg |
| Height | 106 mm |
| Width | 106 mm |
| Depth | 172 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 6
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKY32M435 |
|---|---|
| Type designation | Mureva fast |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.300 cm |
| Package 1 Width | 10.200 cm |
| Package 1 Length | 18.200 cm |
| Package 1 Weight | 278.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 18.800 cm |
| Package 2 Width | 26.800 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 2.354 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.848 kg |
| Shipping weight | 0.305 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKY32M435
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the Mureva fast
What is the rated current of Mureva fast?
The rated current of Mureva fast is 32 A.
Which supply voltage is Mureva fast rated for?
The rated operational voltage of Mureva fast is 380–415 V AC.
What is the HS code of Mureva fast for customs?
The tariff (HS) code on file for Mureva fast is 853669.
Where does Mureva fast ship from, and how fast?
Mureva fast ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
