- Part number
- PKY32M434
- Model no
- Mureva fast
Description
About the Mureva fast
About the Mureva fast

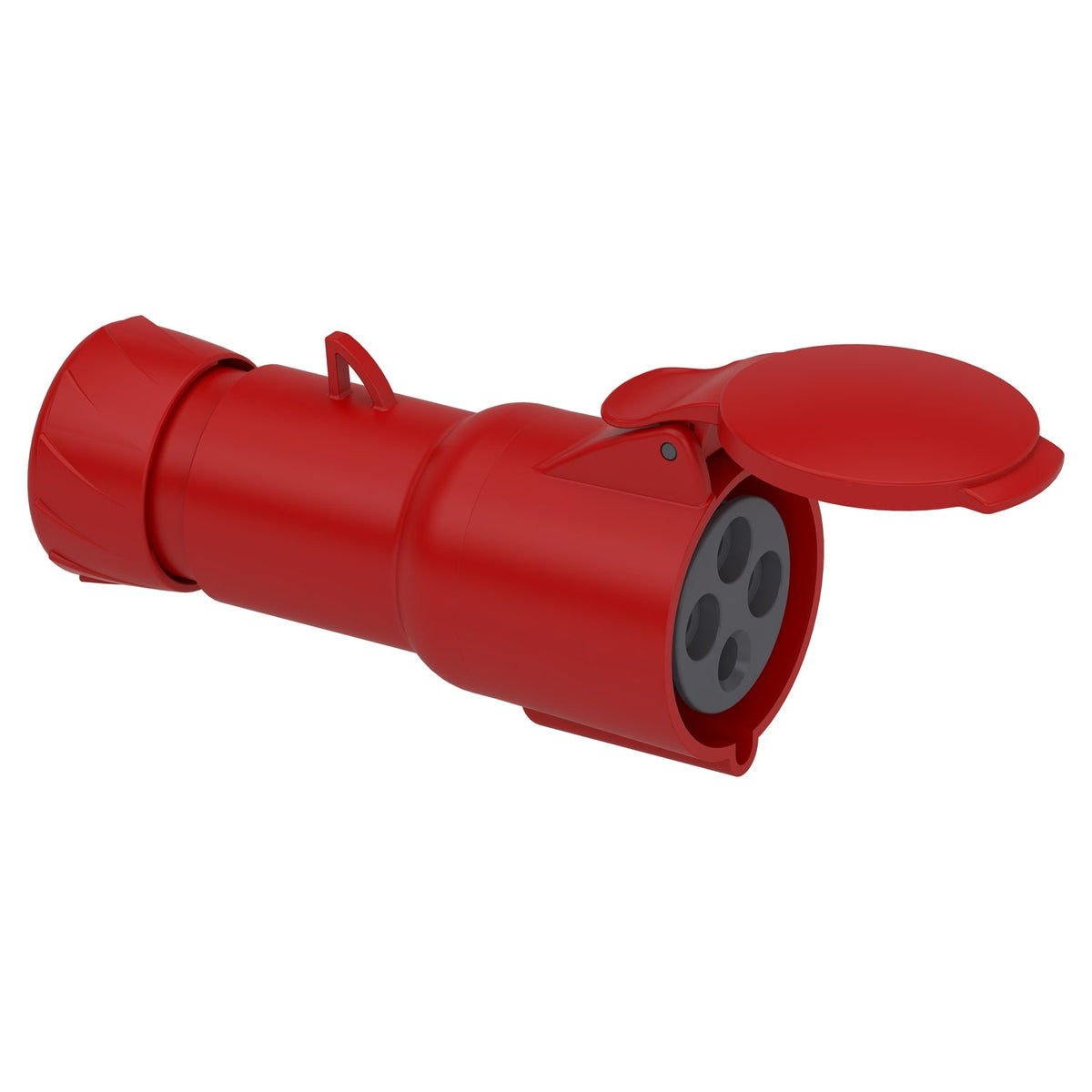

The Schneider Electric PKY32M434 is a Mureva PK wander socket for 32 A, 3P+E extension cords operating at 380-415 V AC. It mounts in-line on flexible cable runs, using fast-connection terminals for 2.5-6 mm² conductors. The IP44-rated, self-extinguishing polymer housing and IK08 impact rating suit indoor industrial environments, with red voltage-identification coding for the 400 V supply range.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
The 3P+E configuration suits three-phase loads without a neutral conductor; pick the 3P+N+E variant instead when the downstream equipment needs a neutral return. IP44 covers indoor panel and workshop cable runs, while the IP67 variant in the same 32 A, 3P+E rating is the better choice for washdown or outdoor extensions. The Pg 21 fast-connection gland accepts 2.5-6 mm² conductors, so conductor sizing should stay within that range to keep the IP44 seal intact.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| Device short name | Mureva fast |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 2.5…6 mm² |
| Cable outer diameter | 11.5…21 mm |
| cable entry | Fair lead, Cable gland |
| Thread type | Pg 21 |
| Net weight | 0.26 kg |
| Height | 98 mm |
| Width | 98 mm |
| Depth | 165 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 6
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKY32M434 |
|---|---|
| Type designation | Mureva fast |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.600 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 17.400 cm |
| Package 1 Weight | 242.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17.000 cm |
| Package 2 Width | 27.000 cm |
| Package 2 Length | 26.300 cm |
| Package 2 Weight | 2.600 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.687 kg |
| Shipping weight | 0.26 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKY32M434
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the Mureva fast
What is the rated current of Mureva fast?
The rated current of Mureva fast is 32 A.
Which supply voltage is Mureva fast rated for?
The rated operational voltage of Mureva fast is 380–415 V AC.
What is the HS code of Mureva fast for customs?
The tariff (HS) code on file for Mureva fast is 853669.
Where does Mureva fast ship from, and how fast?
Mureva fast ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
