- Part number
- PKY32F723
- Model no
- Mureva socket
Description
About the Mureva socket
About the Mureva socket

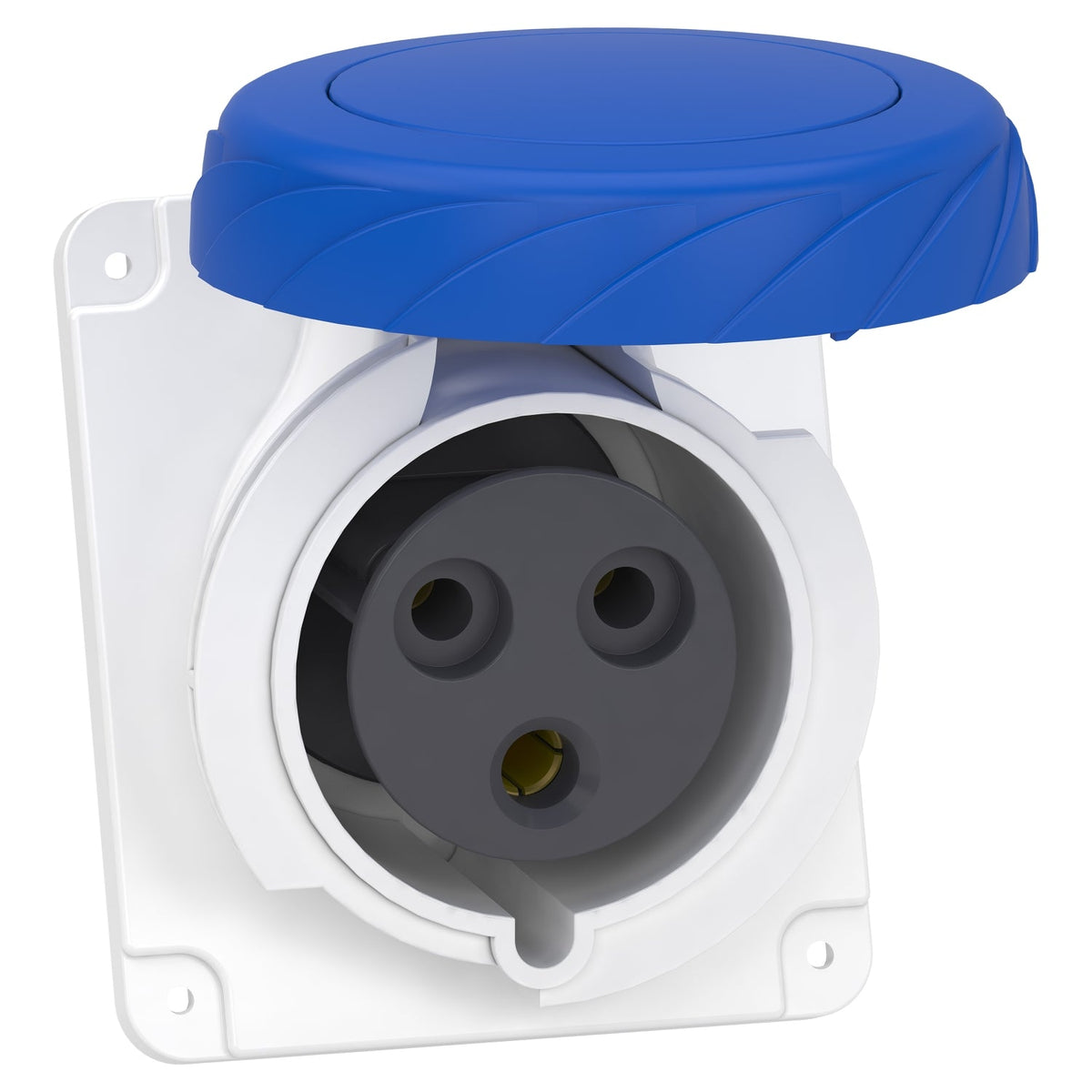

The Schneider Electric PKY32F723 is a PratiKa industrial socket rated 32 A, 2P+E at 200-250 V AC, panel-mounted with an angled outlet and protected to IP67. Fast connection wires the internal connection, and the blue-coded housing identifies the operating voltage on the enclosure face. It accepts a 2.5-6 mm² cable and carries an IK08 impact rating alongside the IP67 ingress protection.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
This PKY32F723 is fixed to the panel, not carried on a cable, so it suits a permanent outlet point rather than a portable connection. The angled outlet shape fits enclosures where the mating socket approaches from the side; use the straight variant in the same 32 A, 2P+E rating where the cable run approaches straight on. IP67 covers washdown and outdoor locations at this current and pole count. The 2P+E configuration carries a single-phase line and earth only, so it suits 200-250 V portable tools and lighting rather than three-phase motor loads. Fast connection wires the incoming supply, accepting a 2.5-6 mm² conductor on this 32 A variant.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 2P + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 17
| Mounting mode | Panel-mounted |
|---|---|
| Plug, socket, control station shape | Angled |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 2.5…6 mm² |
| Net weight | 0.24 kg |
| Base dimension | 90 x 100 mm |
| Height | 100 mm |
| Width | 95 mm |
| Depth | 118 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
Environment 6
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
Show all 60 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKY32F723 |
|---|---|
| Type designation | Mureva socket |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 9.900 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 222.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 18.200 cm |
| Package 2 Width | 26.400 cm |
| Package 2 Length | 26.800 cm |
| Package 2 Weight | 1.776 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.990 kg |
| Shipping weight | 0.24 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKY32F723
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the Mureva socket
What is the rated current of Mureva socket?
The rated current of Mureva socket is 32 A.
Which supply voltage is Mureva socket rated for?
The rated operational voltage of Mureva socket is 200–250 V AC.
What is the HS code of Mureva socket for customs?
The tariff (HS) code on file for Mureva socket is 853669.
Where does Mureva socket ship from, and how fast?
Mureva socket ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
