Part number
PKY16W434
Model no
Mureva socket
$17.02 On request Dispatch — · From TürkiyeGet a Quote

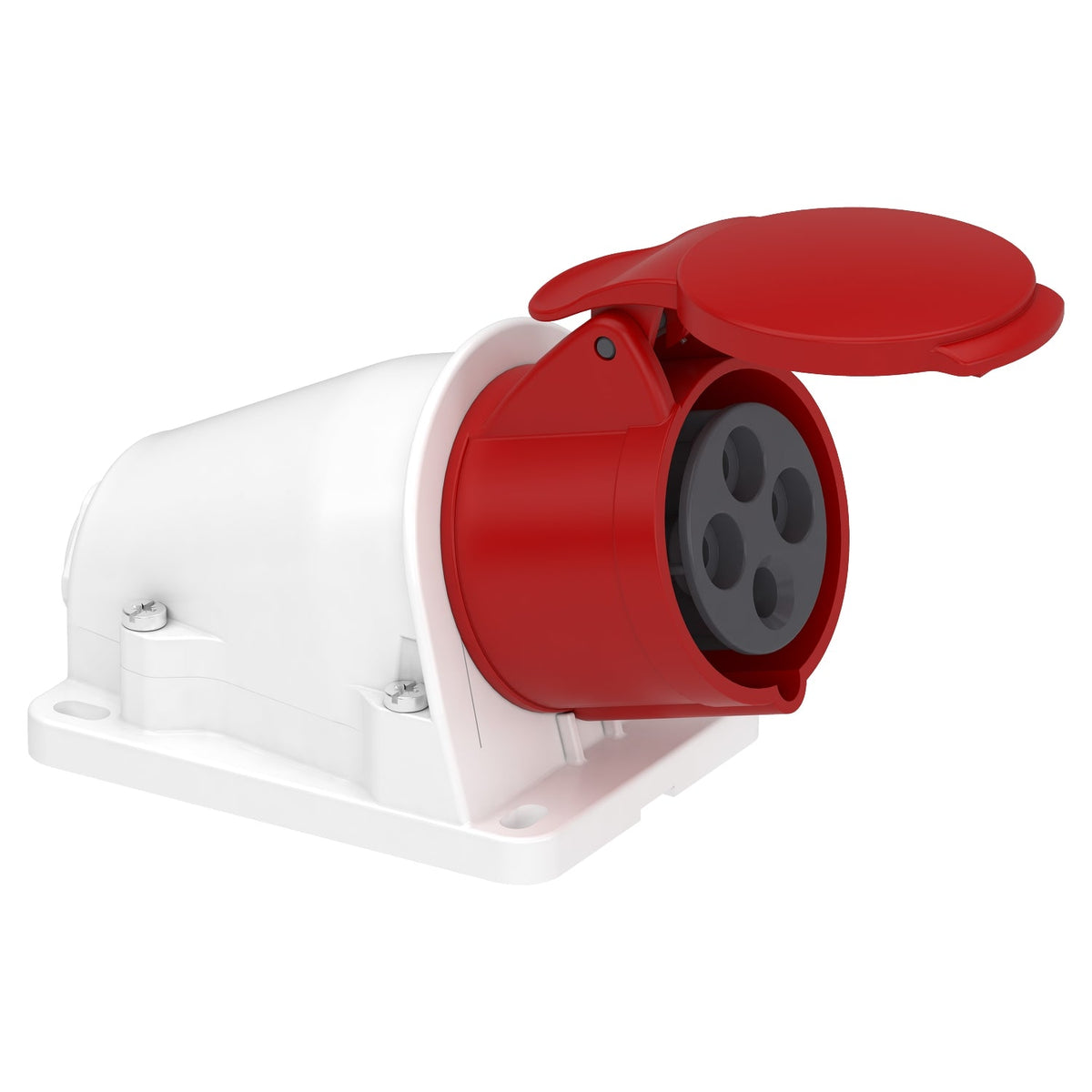

Schneider Electric PKY16W434 PratiKa Wall Mounted Socket 16 A 3P+E 380-415 V IP44 Industrial Socket

PratiKa industrial socket, 16 A, 3P+E, 380-415 V AC, IP44.

Rated current
16 A
Rated operational voltage
380–415 V AC
Description

About the Mureva socket

The Schneider Electric PKY16W434 is a PratiKa industrial socket rated 16 A, 3P+E at 380-415 V AC, wall-mounted with an angled outlet and protected to IP44. Fast connection terminate the fixed installation cable, and the red-coded body identifies the operating voltage for panel-shop and site electricians. It accepts a 1-2.5 mm² cable and carries an IK08 impact rating alongside the IP44 ingress protection.

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

This PKY16W434 is fixed to the wall, not carried on a cable, so it suits a permanent outlet point rather than a portable connection. The angled outlet shape fits enclosures where the mating socket approaches from the side; use the straight variant in the same 16 A, 3P+E rating where the cable run approaches straight on. IP44 covers dry indoor locations at this current and pole count. The 3P+E configuration carries three phases and earth without a neutral, so it suits balanced three-phase loads such as motors that have no need for a neutral conductor. Fast connection wires the incoming supply, accepting a 1-2.5 mm² conductor on this 16 A variant.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Socket
Device short name Mureva socket
Plug, socket category Low voltage
Poles description 3P + E
Network type AC
Outlet standard Industrial

Complementary 18

Mounting mode Wall-mounted
Plug, socket, control station shape Angled
[In] rated current 16 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: brass
Connections - terminals Fast connection
Cable cross section 1…2.5 mm²
Cable outer diameter 21 mm
Thread type M25
Net weight 0.22 kg
Height 131 mm
Width 80 mm
Depth 126 mm
Colour Grey (RAL 7035)
Voltage colour Red

Environment 6

Standards IEC 60309-2, IEC 60309-1
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 750 °C conforming to IEC 60695-2-1
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Ambient air temperature for operation 35 °C ( 86400 s )
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number PKY16W434
Type designation Mureva socket
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.500 cm
Package 1 Width 10.400 cm
Package 1 Length 13.100 cm
Package 1 Weight 193.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 8
Package 2 Height 17.800 cm
Package 2 Width 26.400 cm
Package 2 Length 26.800 cm
Package 2 Weight 1.704 kg
Unit Type of Package 3 S03
Number of Units in Package 3 16
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 3.895 kg
Shipping weight 0.22 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for PKY16W434

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60309-2
  • IEC 60309-1
Quick answers

Questions about the Mureva socket

What is the rated current of Mureva socket?

The rated current of Mureva socket is 16 A.

Which supply voltage is Mureva socket rated for?

The rated operational voltage of Mureva socket is 380–415 V AC.

What is the HS code of Mureva socket for customs?

The tariff (HS) code on file for Mureva socket is 853669.
