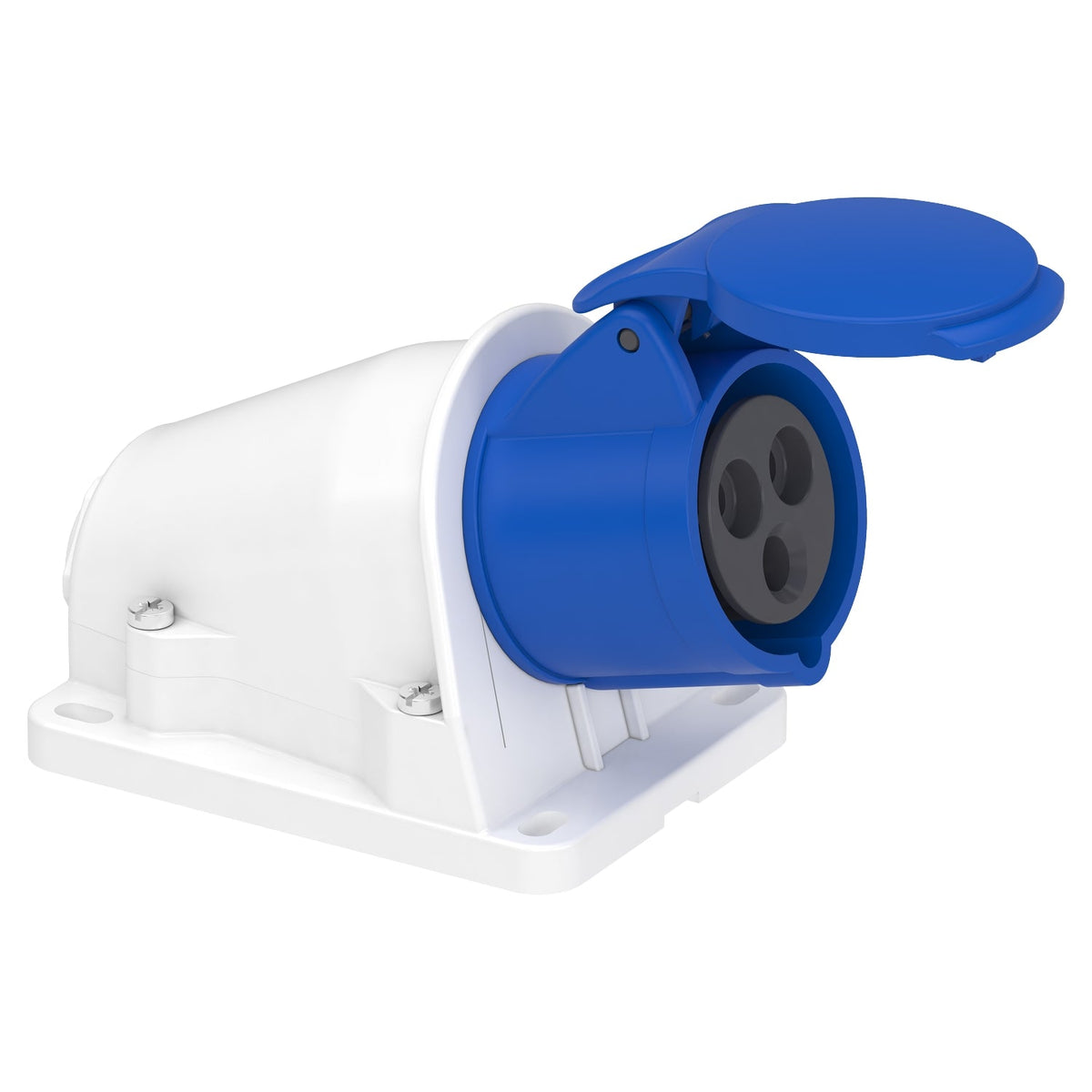

Schneider Electric PKY16W423 PratiKa Wall Mounted Socket 16 A 2P+E 200-250 V IP44 Industrial Socket

The Schneider Electric PKY16W423 is a PratiKa industrial socket rated 16 A, 2P+E at 200-250 V AC, wall-mounted with an angled outlet and protected to IP44. Fast connection terminate the fixed installation cable, and the blue-coded body identifies the operating voltage for panel-shop and site electricians. It accepts a 1-2.5 mm² cable and carries an IK08 impact rating alongside the IP44 ingress protection.

Technical Specifications

Certifications & Standards

• IEC 60309-1
• IEC 60309-2

Selection Notes

This PKY16W423 is fixed to the wall, not carried on a cable, so it suits a permanent outlet point rather than a portable connection. The angled outlet shape fits enclosures where the mating socket approaches from the side; use the straight variant in the same 16 A, 2P+E rating where the cable run approaches straight on. IP44 covers dry indoor locations at this current and pole count. The 2P+E configuration carries a single-phase line and earth only, so it suits 200-250 V portable tools and lighting rather than three-phase motor loads. Fast connection wires the incoming supply, accepting a 1-2.5 mm² conductor on this 16 A variant.
