- Part number
- PKY16M435
- Model no
- Mureva fast
Description
About the Mureva fast
About the Mureva fast

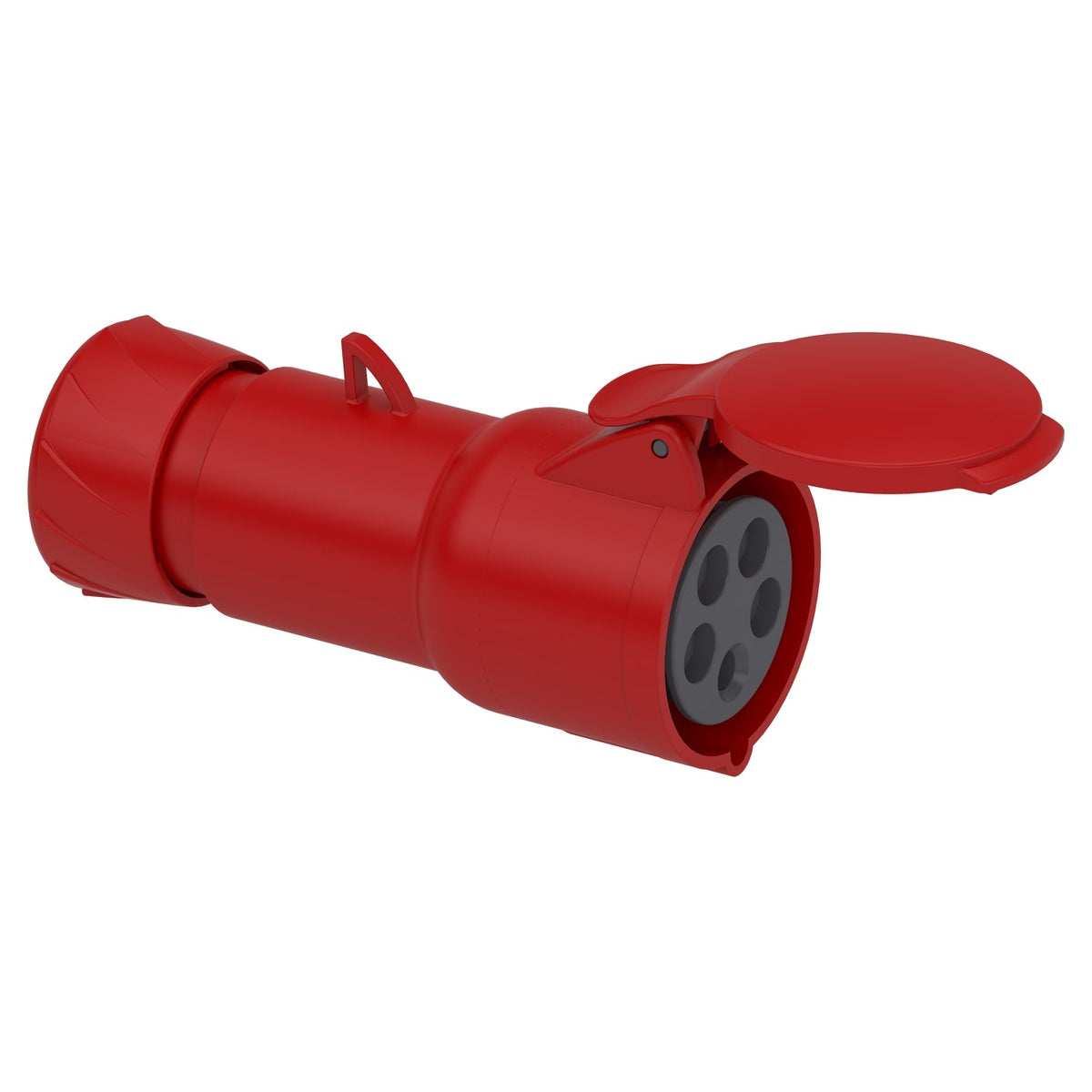

The Schneider Electric PKY16M435 is a Mureva PK industrial wander socket rated 16 A, 3P+N+E at 380-415 V AC, protected to IP44 for connecting portable equipment through a trailing cable. The red-marked housing and fast connection terminals match the 16 A wander plug in the same clock-position-6h family, and the body accepts a 1-2.5 mm² cable with an IK08 impact rating.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
Pair this PKY16M435 wander socket with the matching 16 A, 3P+N+E Mureva PK wander plug to extend a supply cable without opening a panel. Pick IP44 for dry indoor runs and the IP67 variant for outdoor or washdown routing; the 16 A rating distinguishes it from the 32 A socket in the same family. The red housing flags the 380-415 V rating so installers do not cross-connect it with a different-voltage line. The 3P+N+E configuration adds a neutral alongside the three phases and earth, so it covers mixed single-phase and three-phase loads fed from the same 380-415 V connection. Fast connection accepts a 1-2.5 mm² conductor on the trailing cable side of the joint.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| Device short name | Mureva fast |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 1…2.5 mm² |
| Cable outer diameter | 8…15 mm |
| cable entry | Fair lead, Cable gland |
| Thread type | Pg 21 |
| Net weight | 0.241 kg |
| Height | 97 mm |
| Width | 97 mm |
| Depth | 153 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 6
| Standards | IEC 60309-2, IEC 60309-1 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKY16M435 |
|---|---|
| Type designation | Mureva fast |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.200 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 16.300 cm |
| Package 1 Weight | 216.200 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17.000 cm |
| Package 2 Width | 27.000 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 2.295 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.724 kg |
| Shipping weight | 0.241 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKY16M435
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-2
- IEC 60309-1
Quick answers
Questions about the Mureva fast
What is the rated current of Mureva fast?
The rated current of Mureva fast is 16 A.
Which supply voltage is Mureva fast rated for?
The rated operational voltage of Mureva fast is 380–415 V AC.
What is the HS code of Mureva fast for customs?
The tariff (HS) code on file for Mureva fast is 853669.
Where does Mureva fast ship from, and how fast?
Mureva fast ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
