Part number
PKY16M434
Model no
Mureva fast
$12.59 On request Dispatch — · From TürkiyeGet a Quote

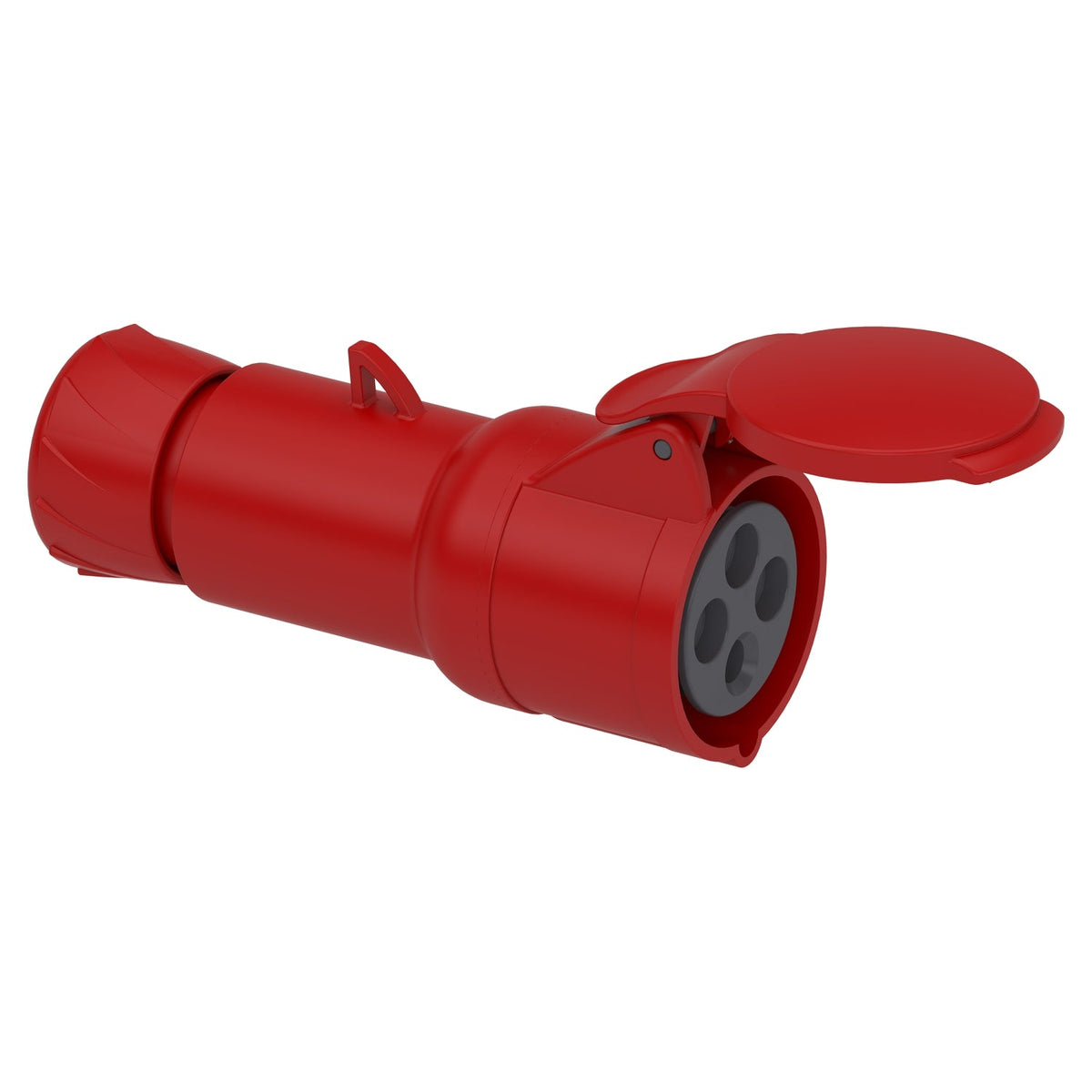

Schneider Electric PKY16M434 Mureva PK Wander Socket Straight 16 A 3P+E 380-415 V IP44 Industrial Socket

Mureva PK industrial socket, 16 A, 3P+E, 380-415 V AC, IP44.

Rated current
16 A
Rated operational voltage
380–415 V AC
Description

About the Mureva fast

The Schneider Electric PKY16M434 is a Mureva PK industrial wander socket rated 16 A, 3P+E at 380-415 V AC, protected to IP44 for connecting portable equipment through a trailing cable. The red-marked housing and fast connection terminals match the 16 A wander plug in the same clock-position-6h family, and the body accepts a 1-2.5 mm² cable with an IK08 impact rating.

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

Pair this PKY16M434 wander socket with the matching 16 A, 3P+E Mureva PK wander plug to extend a supply cable without opening a panel. Pick IP44 for dry indoor runs and the IP67 variant for outdoor or washdown routing; the 16 A rating distinguishes it from the 32 A socket in the same family. The red housing flags the 380-415 V rating so installers do not cross-connect it with a different-voltage line. The 3P+E configuration carries three phases and earth without a neutral, so it suits balanced three-phase loads such as motors that have no need for a neutral conductor. Fast connection accepts a 1-2.5 mm² conductor on the trailing cable side of the joint.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Wander socket
Device short name Mureva fast
Plug, socket category Low voltage
Poles description 3P + E
Network type AC
Outlet standard Industrial

Complementary 18

Plug, socket, control station shape Straight
[In] rated current 16 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: brass
Connections - terminals Fast connection
Cable cross section 1…2.5 mm²
Cable outer diameter 8…15 mm
cable entry Cable gland, Fair lead
Thread type Pg 21
Net weight 0.194 kg
Height 88 mm
Width 88 mm
Depth 150 mm
Colour Grey (RAL 7035)
Voltage colour Red

Environment 6

Standards IEC 60309-2, IEC 60309-1
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-1
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Ambient air temperature for operation 35 °C ( 86400 s ), -25…40 °C
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number PKY16M434
Type designation Mureva fast
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.900 cm
Package 1 Width 8.500 cm
Package 1 Length 15.900 cm
Package 1 Weight 176.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 12.200 cm
Package 2 Width 26.800 cm
Package 2 Length 27.000 cm
Package 2 Weight 1.888 kg
Unit Type of Package 3 S03
Number of Units in Package 3 30
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.151 kg
Shipping weight 0.194 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for PKY16M434

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60309-2
  • IEC 60309-1
Quick answers

Questions about the Mureva fast

What is the rated current of Mureva fast?

The rated current of Mureva fast is 16 A.

Which supply voltage is Mureva fast rated for?

The rated operational voltage of Mureva fast is 380–415 V AC.

What is the HS code of Mureva fast for customs?

The tariff (HS) code on file for Mureva fast is 853669.

Where does Mureva fast ship from, and how fast?

Mureva fast ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
