- Part number
- PKY16G735
- Model no
- Mureva socket
Description
About the Mureva socket
About the Mureva socket

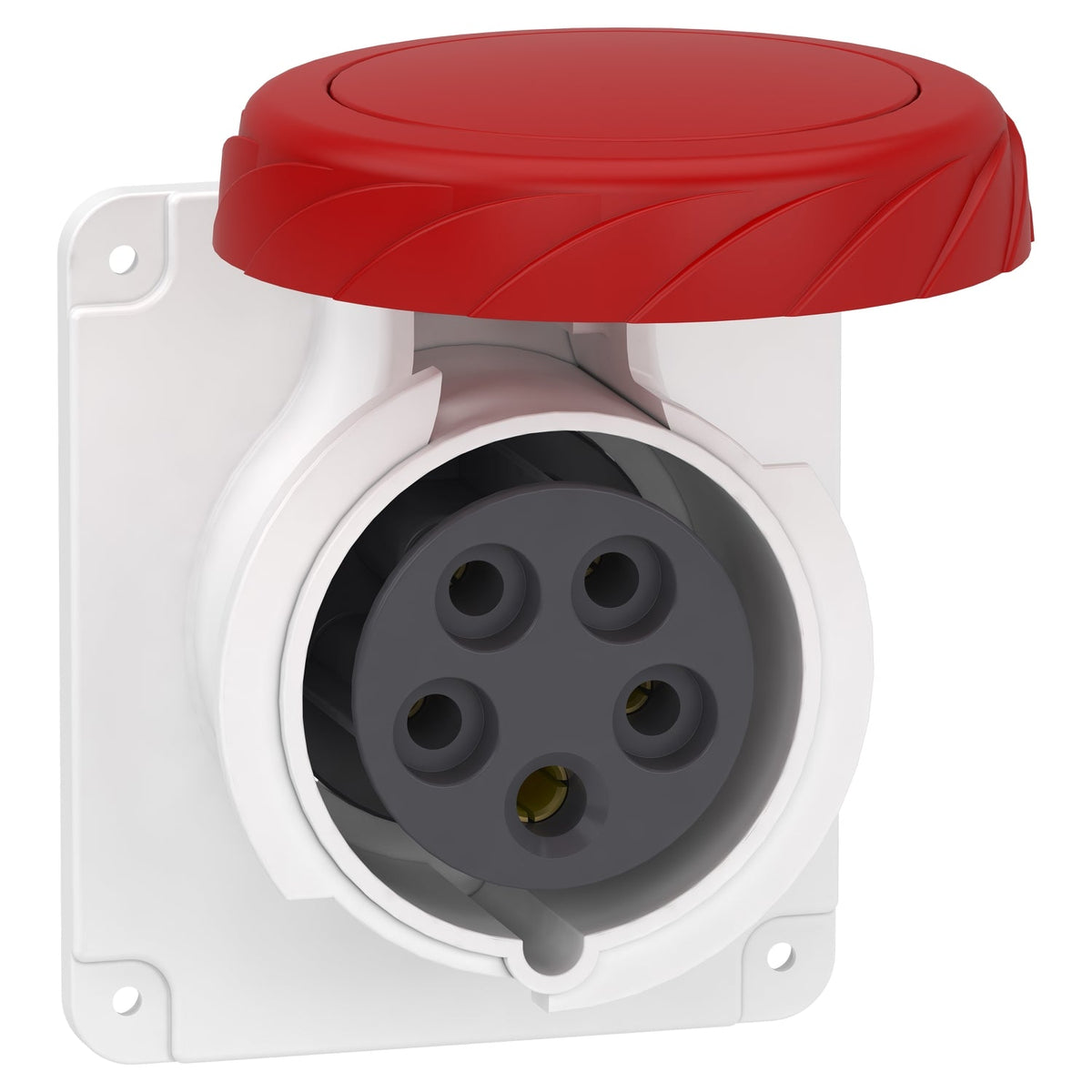

The Schneider Electric PKY16G735 is a PratiKa industrial socket rated 16 A, 3P+N+E at 380-415 V AC, panel-mounted with a straight outlet and protected to IP67. Fast connection wires the internal connection, and the red-coded housing identifies the operating voltage on the enclosure face. It accepts a 1-2.5 mm² cable and carries an IK08 impact rating alongside the IP67 ingress protection.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
This PKY16G735 is fixed to the panel, not carried on a cable, so it suits a permanent outlet point rather than a portable connection. The straight outlet shape fits enclosures where the mating socket approaches from the side; use the angled variant in the same 16 A, 3P+N+E rating where the cable run approaches straight on. IP67 covers washdown and outdoor locations at this current and pole count. The 3P+N+E configuration adds a neutral alongside the three phases and earth, so it covers mixed single-phase and three-phase loads fed from the same 380-415 V connection. Fast connection wires the incoming supply, accepting a 1-2.5 mm² conductor on this 16 A variant.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 17
| Mounting mode | Panel-mounted |
|---|---|
| Plug, socket, control station shape | Straight |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 1…2.5 mm² |
| Net weight | 0.226 kg |
| Base dimension | 90 x 100 mm |
| Height | 100 mm |
| Width | 90 mm |
| Depth | 94 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 6
| Standards | IEC 60309-2, IEC 60309-1 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
Show all 60 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKY16G735 |
|---|---|
| Type designation | Mureva socket |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 9.600 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 204.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 17.600 cm |
| Package 2 Width | 26.600 cm |
| Package 2 Length | 26.800 cm |
| Package 2 Weight | 2.232 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.951 kg |
| Shipping weight | 0.226 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKY16G735
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-2
- IEC 60309-1
Quick answers
Questions about the Mureva socket
What is the rated current of Mureva socket?
The rated current of Mureva socket is 16 A.
Which supply voltage is Mureva socket rated for?
The rated operational voltage of Mureva socket is 380–415 V AC.
What is the HS code of Mureva socket for customs?
The tariff (HS) code on file for Mureva socket is 853669.
Where does Mureva socket ship from, and how fast?
Mureva socket ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
