Part number
PKX32M423
Model no
Mureva plug
$13.16 On request Dispatch — · From TürkiyeGet a Quote

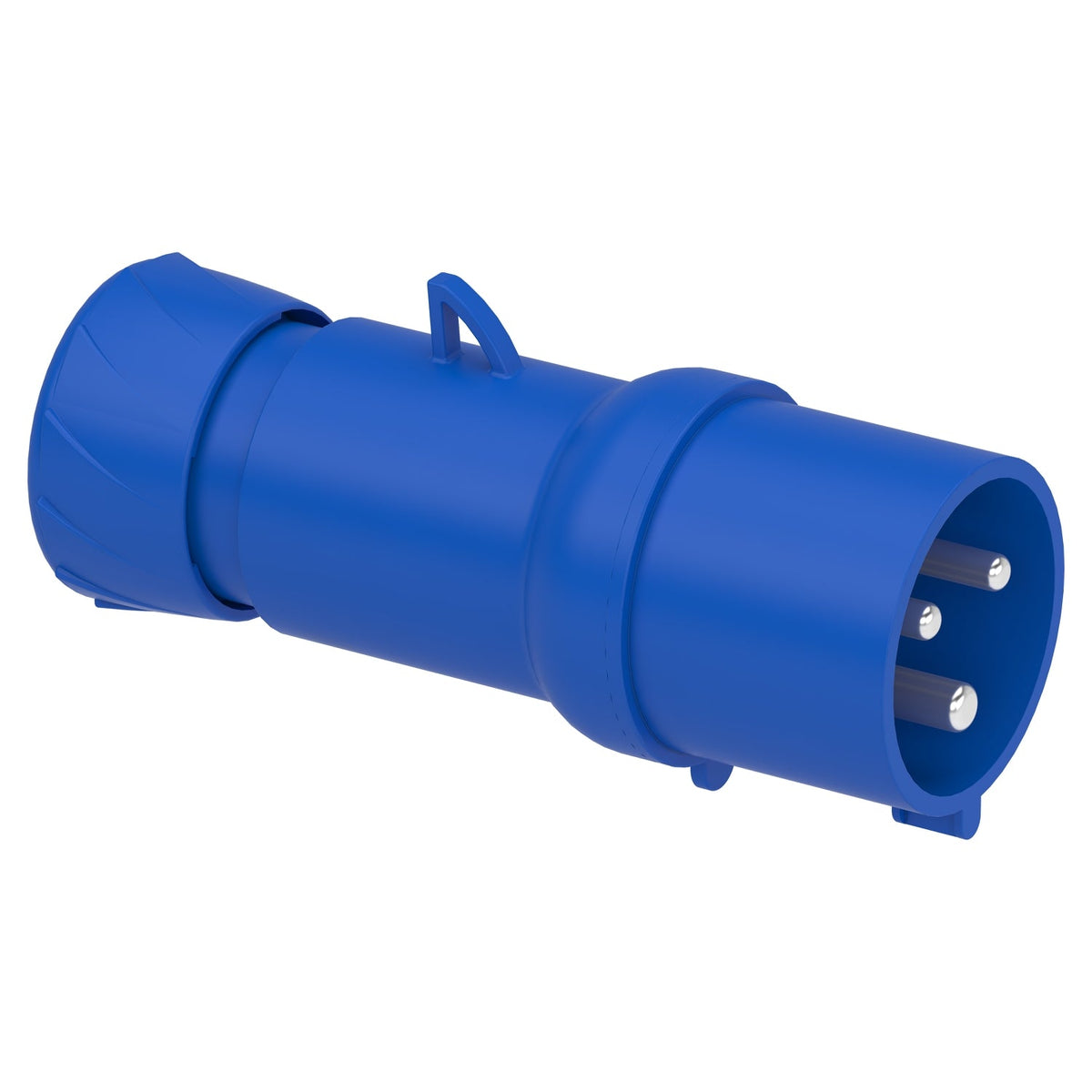

Schneider Electric PKX32M423 PratiKa Wander Plug Straight 32 A 2P+E 200-250 V IP44 Industrial Plug

PratiKa industrial plug, 32 A, 2P+E, 200-250 V AC, IP44.

Rated current
32 A
Rated operational voltage
200–250 V AC
Description

About the Mureva plug

The Schneider Electric PKX32M423 is a PratiKa industrial wander plug rated 32 A, 2P+E at 200-250 V AC, built to IP44 for use with portable or trailing power cables. Fast connection terminals wire the field cable inside the cord-grip body, and the blue housing marks the operating voltage at a glance on site. It accepts a 2.5-6 mm² cable and carries an IK08 impact rating alongside the IP44 ingress protection.

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

The 32 A rating sets the maximum continuous load this PKX32M423 plug can carry on a trailing cable; step up to the 16 A version in the same 2P+E configuration for heavier single-phase or three-phase tools. Choose IP44 where the connection stays indoors or under cover, and the IP67 wander plug where the joint is exposed to washdown or outdoor weather. The blue shell is a PratiKa standard colour code for the 200-250 V range, so it cannot be mixed up with a different-voltage wander plug on the same site. The 2P+E configuration carries a single-phase line and earth only, so it suits 200-250 V portable tools and lighting rather than three-phase motor loads. Fast connection accepts a 2.5-6 mm² conductor, which sets the minimum and maximum cable size this plug can be fitted to without an adapter.

Specification

Full specification

62 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Wander plug
Device short name Mureva plug
Plug, socket category Low voltage
Poles description 2P + E
Network type AC
Outlet standard Industrial

Complementary 18

Plug, socket, control station shape Straight
[In] rated current 32 A
[Ue] rated operational voltage 200...250 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: brass
Connections - terminals Fast connection
Cable cross section 2.5…6 mm²
Cable outer diameter 11.5…21 mm
cable entry Cable gland, Fair lead
Thread type Pg 21
Net weight 0.214 kg
Height 152 mm
Width 76 mm
Depth 76 mm
Colour Grey (RAL 7035)
Voltage colour Blue

Environment 7

Standards IEC 60309-1, IEC 60309-2
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Operating altitude 2000 m
Ambient air temperature for operation 35 °C ( 86400 s ), -25…40 °C
Show all 62 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number PKX32M423
Type designation Mureva plug
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 5.500 cm
Package 1 Length 16.000 cm
Package 1 Weight 209.900 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 12.000 cm
Package 2 Width 27.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 2.206 kg
Unit Type of Package 3 S03
Number of Units in Package 3 30
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.700 kg
Shipping weight 0.214 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for PKX32M423

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60309-1
  • IEC 60309-2
Quick answers

Questions about the Mureva plug

What is the rated current of Mureva plug?

The rated current of Mureva plug is 32 A.

Which supply voltage is Mureva plug rated for?

The rated operational voltage of Mureva plug is 200–250 V AC.

What is the HS code of Mureva plug for customs?

The tariff (HS) code on file for Mureva plug is 853669.

Where does Mureva plug ship from, and how fast?

Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
