- Part number
- PKX16M435
- Model no
- Mureva plug
Description
About the Mureva plug
About the Mureva plug

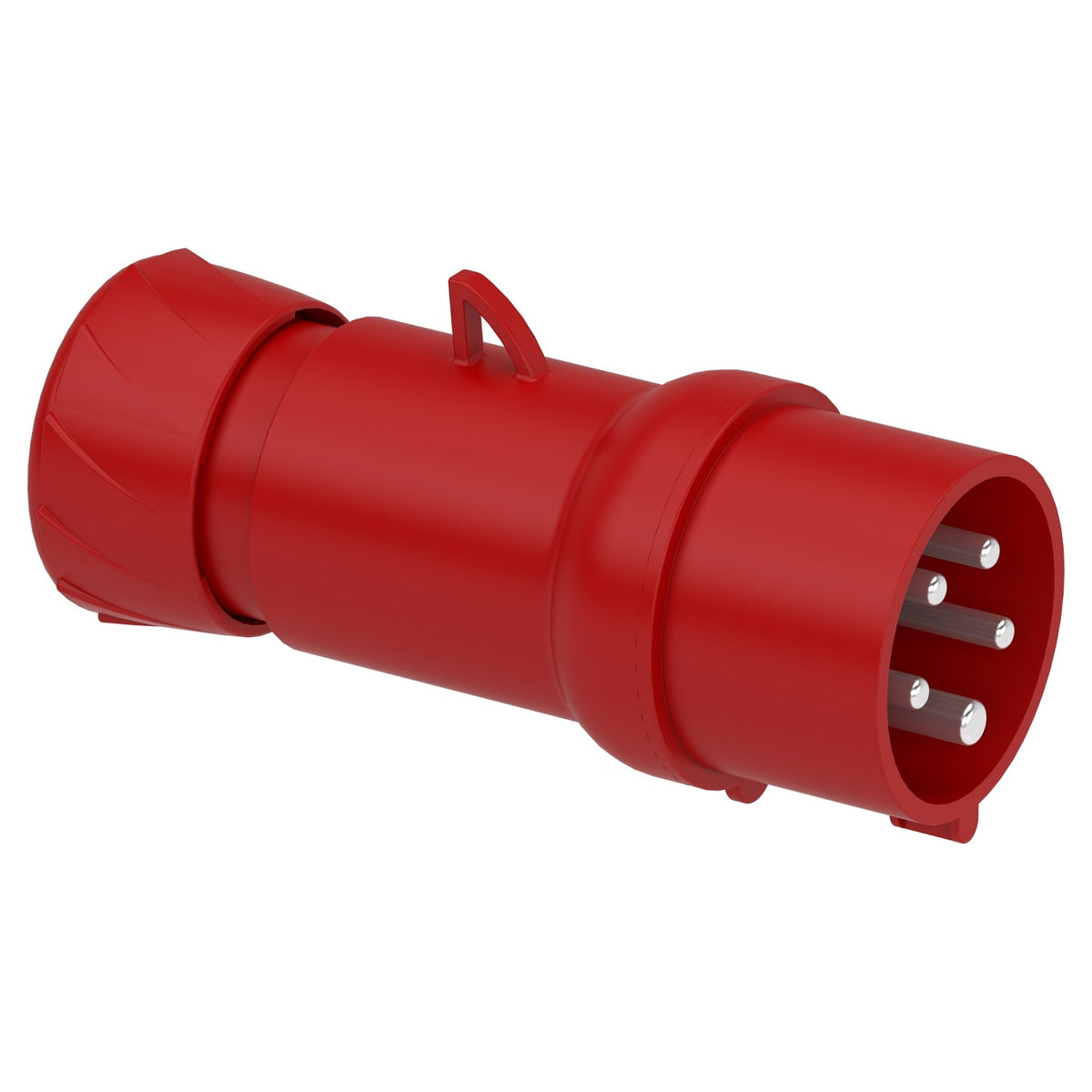

The Schneider Electric PKX16M435 is a PratiKa industrial wander plug rated 16 A, 3P+N+E at 380-415 V AC, built to IP44 for use with portable or trailing power cables. Fast connection terminals wire the field cable inside the cord-grip body, and the red housing marks the operating voltage at a glance on site. It accepts a 1-2.5 mm² cable and carries an IK08 impact rating alongside the IP44 ingress protection.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
The 16 A rating sets the maximum continuous load this PKX16M435 plug can carry on a trailing cable; step up to the 32 A version in the same 3P+N+E configuration for heavier single-phase or three-phase tools. Choose IP44 where the connection stays indoors or under cover, and the IP67 wander plug where the joint is exposed to washdown or outdoor weather. The red shell is a PratiKa standard colour code for the 380-415 V range, so it cannot be mixed up with a different-voltage wander plug on the same site. The 3P+N+E configuration adds a neutral alongside the three phases and earth, so it covers mixed single-phase and three-phase loads fed from the same 380-415 V connection. Fast connection accepts a 1-2.5 mm² conductor, which sets the minimum and maximum cable size this plug can be fitted to without an adapter.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Fast connection |
| Cable cross section | 1…2.5 mm² |
| Cable outer diameter | 8…15 mm |
| cable entry | Fair lead, Cable gland |
| Thread type | Pg 21 |
| Net weight | 0.212 kg |
| Height | 142 mm |
| Width | 74 mm |
| Depth | 74 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 7
| Standards | IEC 60309-2, IEC 60309-1 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 62 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKX16M435 |
|---|---|
| Type designation | Mureva plug |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 15.000 cm |
| Package 1 Weight | 201.500 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 12.500 cm |
| Package 2 Width | 26.500 cm |
| Package 2 Length | 16.500 cm |
| Package 2 Weight | 2.167 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 30 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 6.935 kg |
| Shipping weight | 0.212 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKX16M435
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-2
- IEC 60309-1
Quick answers
Questions about the Mureva plug
What is the rated current of Mureva plug?
The rated current of Mureva plug is 16 A.
Which supply voltage is Mureva plug rated for?
The rated operational voltage of Mureva plug is 380–415 V AC.
What is the HS code of Mureva plug for customs?
The tariff (HS) code on file for Mureva plug is 853669.
Where does Mureva plug ship from, and how fast?
Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
