Schneider Electric PKF16W434 Mureva PK Wall-Mounted Angled 16 A 3P+E 380-415 V IP44 Industrial Socket

% $-14.52
Schneider Electric PKF16W434 Mureva PK Wall-Mounted Angled Industrial Socket – 16 A 3P+E IP44
Schneider Electric PKF16W434 Mureva PK Wall-Mounted Angled Industrial Socket – 16 A 3P+E IP44

Schneider Electric PKF16W434 Mureva PK Wall-Mounted Angled 16 A 3P+E 380-415 V IP44 Industrial Socket

Brand: Schneider Electric
Reference No: PKF16W434
Catalog No: PKF16W434
Tariff Code (HS): 853669
Rated Current: 16 A
Rated Voltage: 380-415 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$14.52

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

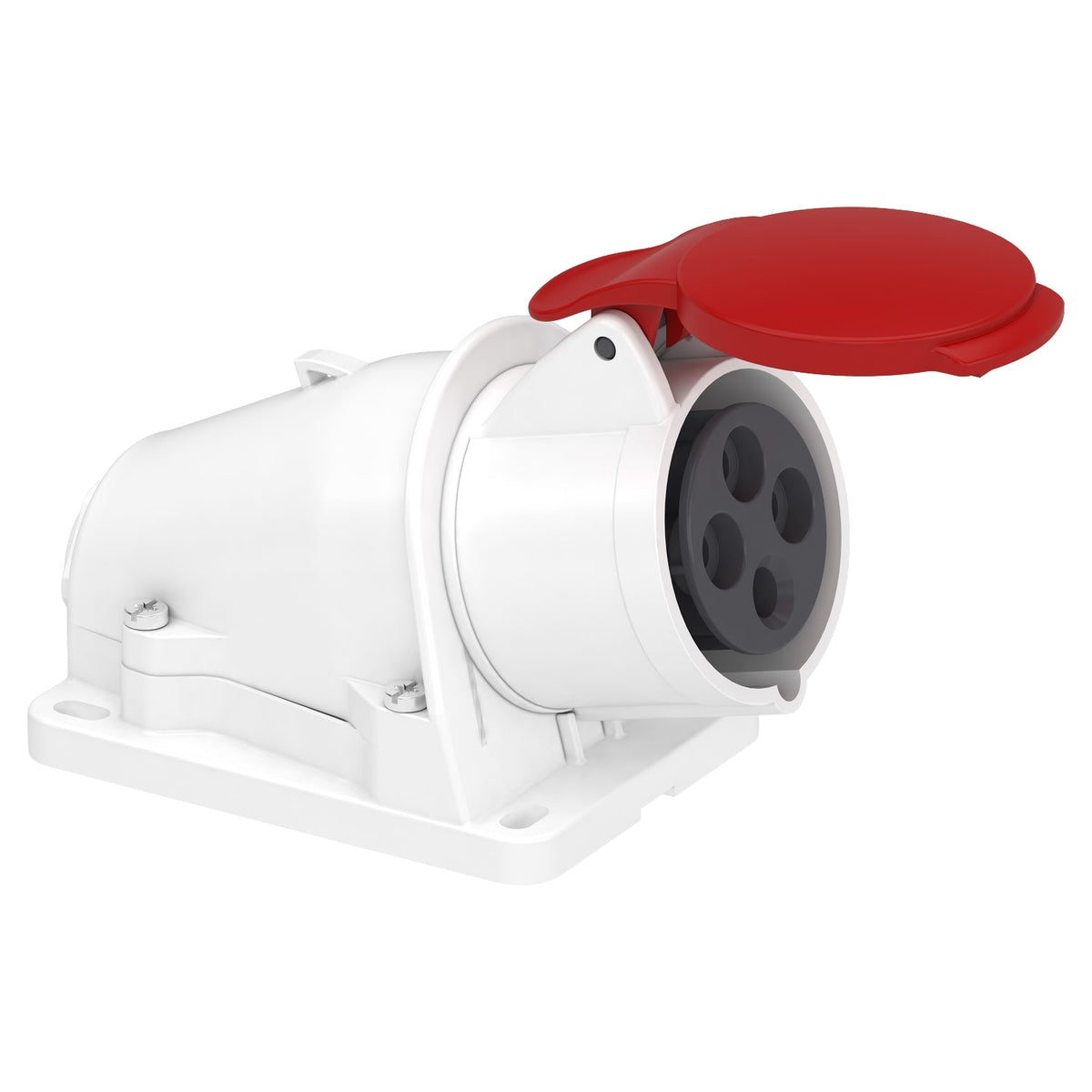

The Schneider Electric PKF16W434 is a Mureva PK wall-mounted angled socket rated 16 A, 3P+E, for 380-415 V AC networks. It mounts to a wall or enclosure surface with an angled connector body and a threaded cable entry (M25 cable gland entry), uses captive screw terminals, and carries an IP44 degree of protection with a 6 h ground-lug clock position. The grey (RAL 7035) housing uses red voltage-identification colour coding.

Technical Specifications

Reference PKF16W434
Brand Schneider Electric
Range Mureva PK
Product or component type Socket
Mounting mode Wall-mounted
Shape Angled
Number of poles 3P+E
Rated current (In) 16 A
Rated operational voltage (Ue) 380-415 V
Rated frequency 50/60 Hz
Ground lug clock position 6 h
Connections Captive screws
Cable cross section 1-4 mm²
Cable outer diameter 21 mm
Cable gland thread M25
IP degree of protection IP44 (IEC 60529)
IK degree of protection IK08 (EN 62262)
Fire resistance 750 °C (IEC 60695-2-1)
Ambient operating temperature 35 °C
Housing material Self-extinguishing engineering polymer
Contact material Brass
Colour Grey (RAL 7035)
Voltage identification colour Red
Dimensions (H x W x D) 131 x 75 x 104 mm
Net weight 0.21 kg

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

Pick the PKF16W434 for a fixed socket outlet mounted directly on a wall or enclosure surface rather than flush into a panel — the angled body and M25 cable gland bring the supply cable in from behind. At IP44 it suits workshop and site-distribution use; the IP44 wall-mounted variant in the same 3P+E, 380-415 V configuration is adequate for dry indoor locations only.

Technical Details

Short Description
Mureva PK wall-mounted angled socket, 16 A, 3P+E, 380-415 V, IP44, captive screw terminals.
Rated Current (Ampere)
16 A
Rated Voltage (VAC)
380-415 V
Mounting Type
Wall-mounted
Protection Type
IP44
Catalog No
PKF16W434
Delivery Date (Days)
30 days
Model Number
Mureva PK Wall-Mounted Angled
Tariff Code
853669
