Part number
PKF16M435
Model no
Mureva socket
$14.42 On request Dispatch — · From TürkiyeGet a Quote

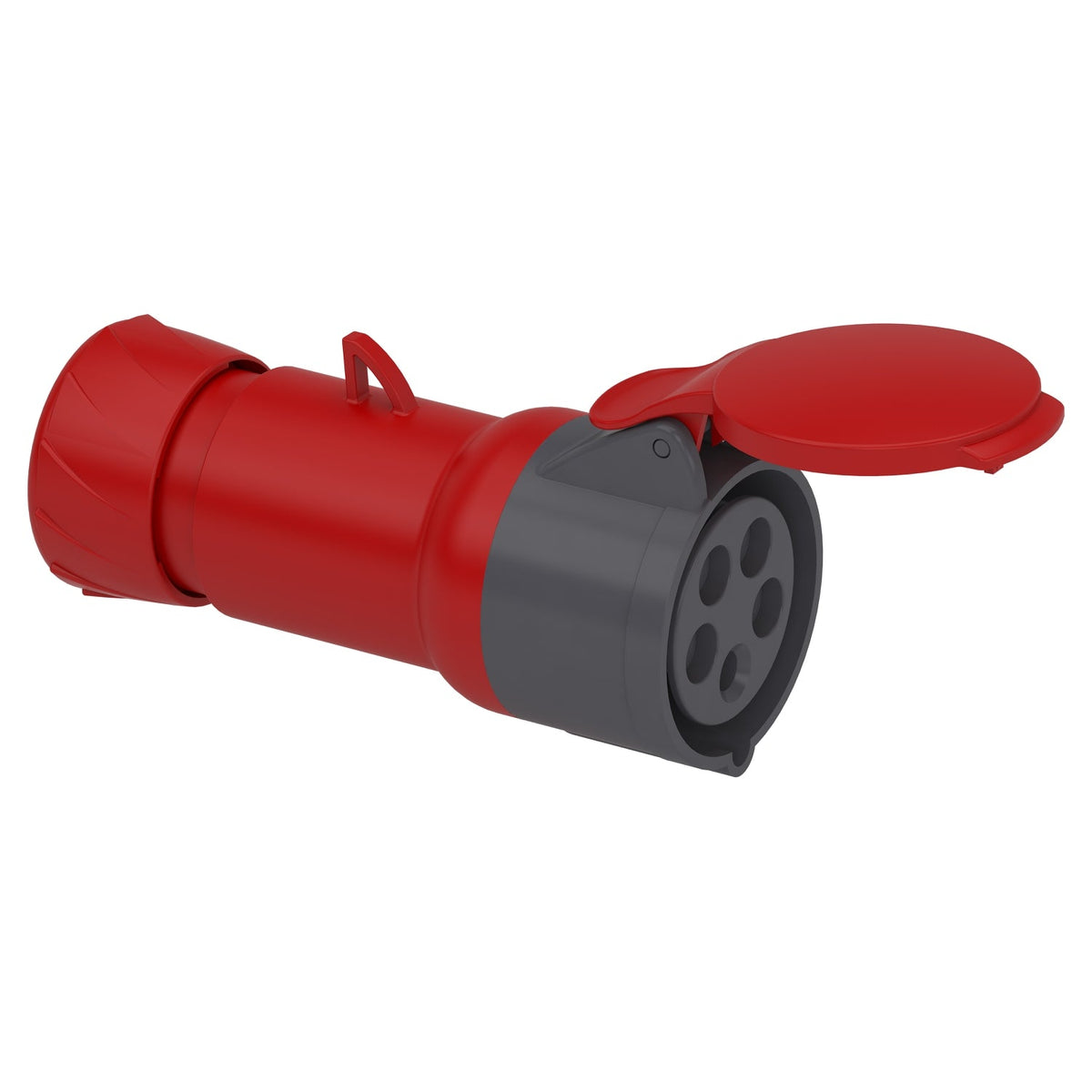

Schneider Electric PKF16M435 Mureva PK Wander 16 A 3P+N+E 380-415 V IP44 Industrial Socket

Mureva PK wander (extension) socket, 16 A, 3P+N+E, 380-415 V, IP44, captive screw terminals.

Rated current
16 A
Rated operational voltage
380–415 V AC
Description

About the Mureva socket

The Schneider Electric PKF16M435 is a Mureva PK wander (extension) socket rated 16 A, 3P+N+E, for 380-415 V AC networks. It is an in-line (wander) connector fitted to the end of a flexible extension cable (Pg 21 cable gland entry), uses captive screw terminals, and carries an IP44 degree of protection with a 6 h ground-lug clock position. The grey (RAL 7035) housing uses red voltage-identification colour coding.

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

Pick the PKF16M435 for a portable in-line connector on a flexible extension lead rather than a fixed panel or wall outlet — the Pg 21 cable gland lets it be fitted to the supply cable on site. At IP44 it tolerates damp or outdoor handling; the IP44 wander variant in the same 3P+N+E, 380-415 V configuration is for dry indoor extension leads.

Specification

Full specification

61 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Wander socket
Device short name Mureva socket
Plug, socket category Low voltage
Poles description 3P + N + E
Network type AC
Outlet standard Industrial

Complementary 18

Plug, socket, control station shape Straight
[In] rated current 16 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug, socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: brass
Connections - terminals Captive screws
Cable cross section 1…4 mm²
Cable outer diameter 8…15 mm
cable entry Fair lead, Cable gland
Thread type Pg 21
Net weight 0.21 kg
Height 97 mm
Width 97 mm
Depth 153 mm
Colour Grey (RAL 7035)
Voltage colour Red

Environment 6

Standards IEC 60309-1, IEC 60309-2
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-1
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Ambient air temperature for operation 35 °C ( 86400 s ), -25…40 °C
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number PKF16M435
Type designation Mureva socket
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 22

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.500 cm
Package 1 Width 9.500 cm
Package 1 Length 16.500 cm
Package 1 Weight 205.000 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 17.000 cm
Package 2 Width 27.000 cm
Package 2 Length 27.000 cm
Package 2 Weight 2.206 kg
Unit Type of Package 3 S03
Number of Units in Package 3 20
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.800 kg
Shipping weight 0.21 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for PKF16M435

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60309-1
  • IEC 60309-2
Quick answers

Questions about the Mureva socket

What is the rated current of Mureva socket?

The rated current of Mureva socket is 16 A.

Which supply voltage is Mureva socket rated for?

The rated operational voltage of Mureva socket is 380–415 V AC.

What is the HS code of Mureva socket for customs?

The tariff (HS) code on file for Mureva socket is 853669.

Where does Mureva socket ship from, and how fast?

Mureva socket ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
