- Part number
- PKF16M434
- Model no
- Mureva screw
Description
About the Mureva screw
About the Mureva screw

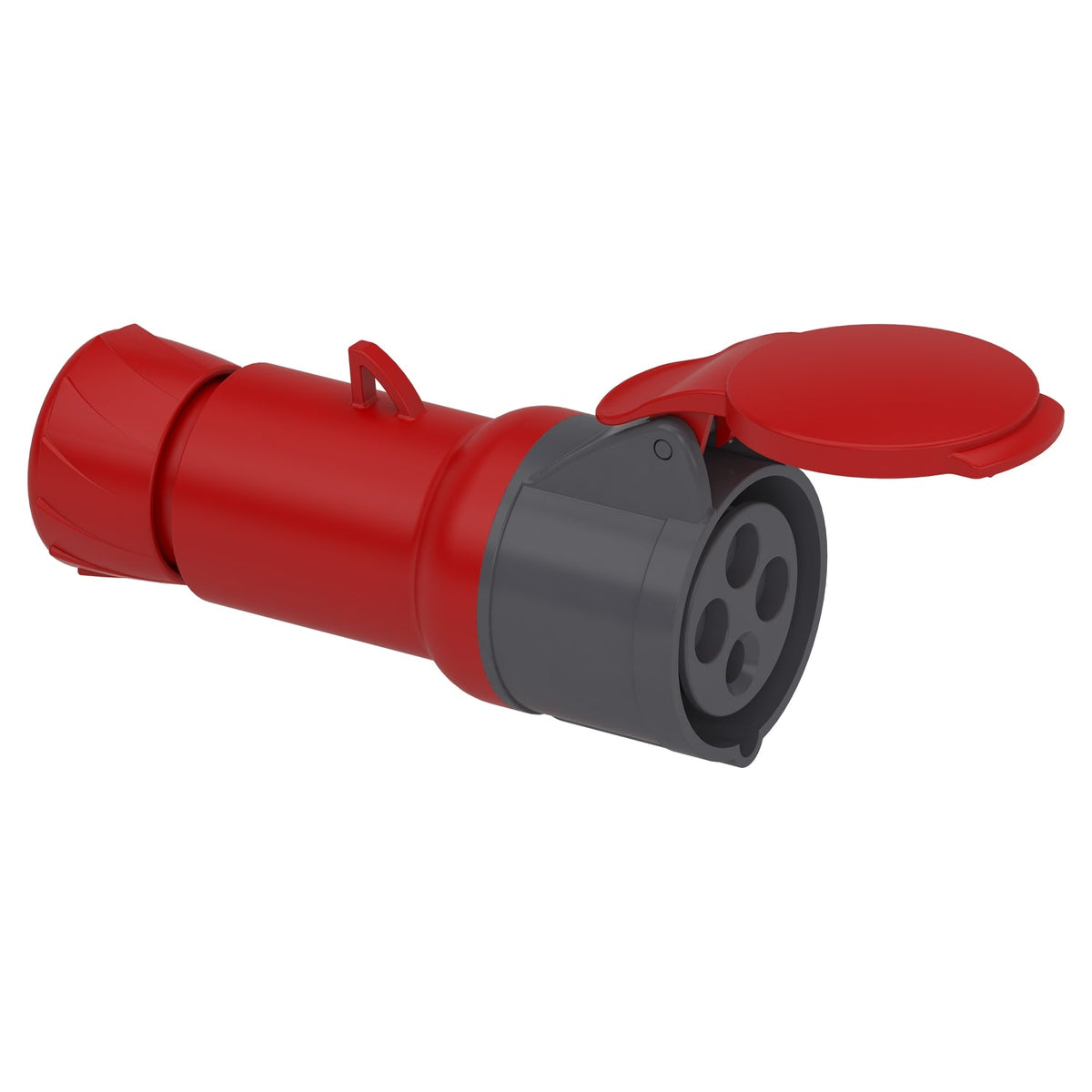

The Schneider Electric PKF16M434 is a Mureva PK wander (extension) socket rated 16 A, 3P+E, for 380-415 V AC networks. It is an in-line (wander) connector fitted to the end of a flexible extension cable (Pg 21 cable gland entry), uses captive screw terminals, and carries an IP44 degree of protection with a 6 h ground-lug clock position. The grey (RAL 7035) housing uses red voltage-identification colour coding.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
Pick the PKF16M434 for a portable in-line connector on a flexible extension lead rather than a fixed panel or wall outlet — the Pg 21 cable gland lets it be fitted to the supply cable on site. At IP44 it tolerates damp or outdoor handling; the IP44 wander variant in the same 3P+E, 380-415 V configuration is for dry indoor extension leads.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander socket |
| Device short name | Mureva screw |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 8…15 mm |
| cable entry | Cable gland, Fair lead |
| Thread type | Pg 21 |
| Net weight | 0.184 kg |
| Height | 88 mm |
| Width | 88 mm |
| Depth | 150 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 6
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKF16M434 |
|---|---|
| Type designation | Mureva screw |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 8.500 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 167.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 12.400 cm |
| Package 2 Width | 26.600 cm |
| Package 2 Length | 26.600 cm |
| Package 2 Weight | 1.832 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 30 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.983 kg |
| Shipping weight | 0.184 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKF16M434
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the Mureva screw
What is the rated current of Mureva screw?
The rated current of Mureva screw is 16 A.
Which supply voltage is Mureva screw rated for?
The rated operational voltage of Mureva screw is 380–415 V AC.
What is the HS code of Mureva screw for customs?
The tariff (HS) code on file for Mureva screw is 853669.
Where does Mureva screw ship from, and how fast?
Mureva screw ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
