Schneider Electric PKF16F434 PratiKa angled panel mounted socket 16A 3P+E IP44

Schneider Electric PKF16F434 PratiKa Socket Panel Mounted Angled 16A 3P+E 380-415V IP44 Industrial Socket

Name: Schneider Electric PKF16F434 PratiKa Socket Panel Mounted Angled 16A 3P+E 380-415V IP44 Industrial Socket
Brand: Schneider Electric
SKU: PKF16F434
Price: 10.08 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Schneider Electric

Reference No: PKF16F434

Catalog No: PKF16F434

Tariff Code (HS): 853669

Rated Current: 16 A

Rated Voltage: 380-415 V

Stock: 0

Delivery time: 30 business day(s)

Shipping Origin: Türkiye EXW

$10.08

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

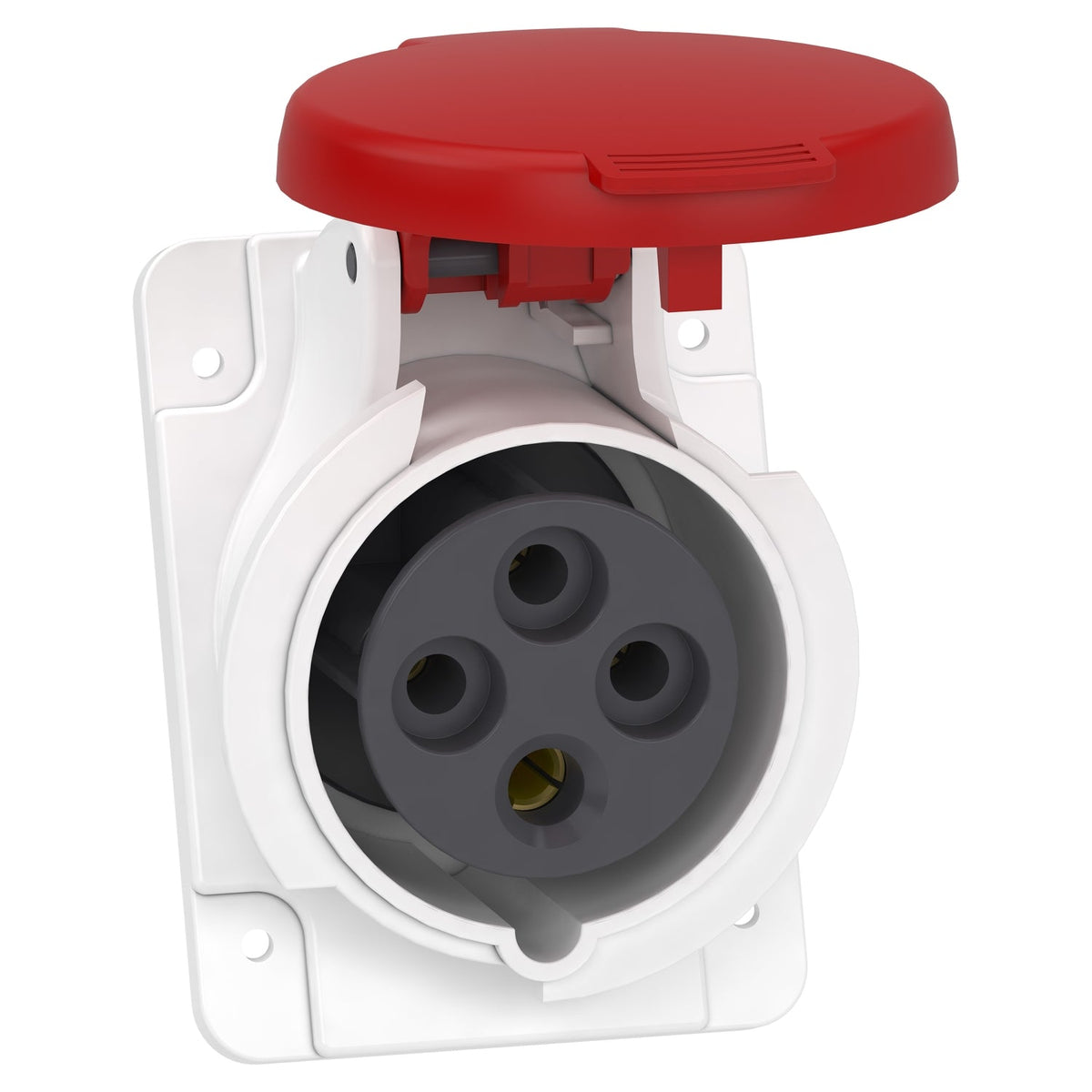

The Schneider Electric PKF16F434 is a PratiKa angled industrial socket rated 16 A, 3P+E, for a 380-415 V AC network at 50/60 Hz. It is panel-mounted with captive-screw terminal connections for 1-4 mm² cable and reaches IP44/IK08 protection, built to withstand an 850 degC glow-wire fire-resistance test.

Technical Specifications

Reference	PKF16F434
Brand	Schneider Electric
Range	Mureva
Product Type	Socket
Rated Current (In)	16 A
Rated Voltage (Ue)	380-415 V
Number of Poles	3P + E
Network Frequency	50/60 Hz
Shape	Angled
Mounting	Panel-mounted
Ground Lug Clock Position	6 h
Connection	Captive screws
Material	Self-extinguishing engineering polymer housing; brass sleeves
Cable Cross Section	1-4 mm²
Colour	Grey (RAL 7035), red voltage identification
IP Rating	IP44 (IEC 60529)
IK Rating	IK08 (EN 62262)
Fire Resistance	850 degC (IEC 60695-2-1)
Operating Temperature	35 degC continuous
Dimensions (W x H x D)	65 x 85 x 105 mm
Weight	0.16 kg

Certifications & Standards

IEC 60309-1
IEC 60309-2

Selection Notes

The PKF16F434 is the three-phase, no-neutral (3P+E) panel-mounted angled socket at 16 A, matched to the PKE16M434 wander plug for a fixed-to-portable connection on three-phase equipment. Choose the PKF16F435 if a neutral pole is also needed, or the PKF16F734 for the same 3P+E configuration at IP67.

Technical Details

Short Description

PratiKa socket, panel-mounted, angled, 16A, 3P+E, 380-415V, IP44/IK08, screw terminals, red voltage colour.

Rated Current (Ampere)

16 A

Rated Voltage (VAC)

380-415 V

Mounting Type

Panel-mounted

Protection Type

IP44

Catalog No

PKF16F434

Delivery Date (Days)

30 days

Model Number

PratiKa

Tariff Code

853669
