- Part number
- PKE32M7C4
- Model no
- Mureva plug
Description
About the Mureva plug
About the Mureva plug

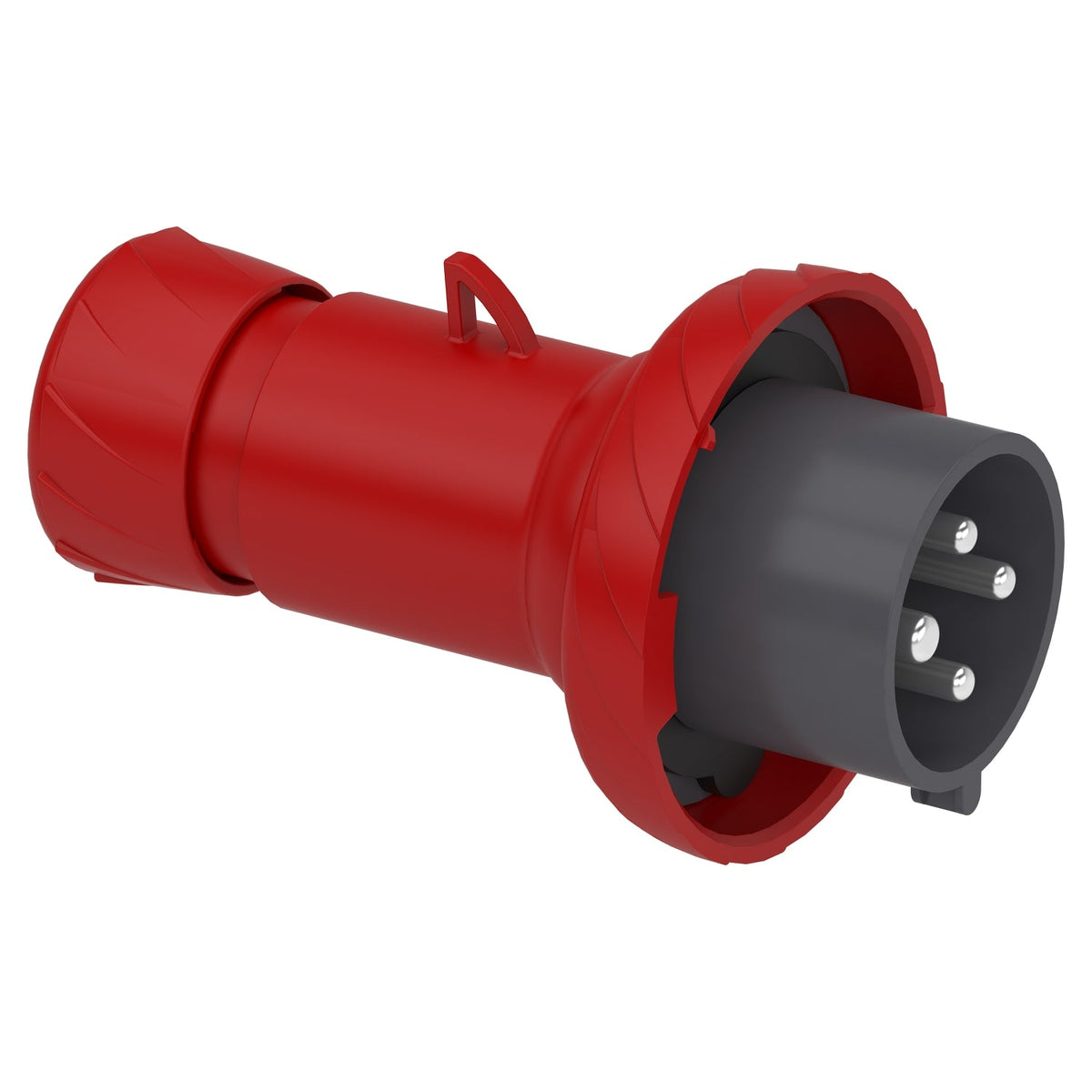

The Schneider Electric PKE32M7C4 is a Mureva PK straight wander plug rated 32 A, 3P+E, for a 380-440 V AC network at 50/60 Hz. It has captive-screw terminal connections for 2.5-6 mm² cable and reaches IP67/IK08 protection, built to withstand an 850 degC glow-wire fire-resistance test.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
The PKE32M7C4 shares the 32 A, 3P+E, IP67 rating of the PKE32M734 but is wired for the wider 380-440 V band and uses a 3 h rather than 6 h ground-pin clock position, so it is the correct match only for networks or installed sockets built to that 3 h key coding - typically where this clock position is used to prevent cross-plugging into a different voltage socket on site. Match the ground-lug clock position to the installed socket before specifying this plug over the standard 6 h PKE32M734.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 17
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 380...440 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 3 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 2.5…6 mm² |
| cable entry | Fair lead, Cable gland |
| Thread type | Pg 21 |
| Net weight | 0.22 kg |
| Height | 95 mm |
| Width | 95 mm |
| Depth | 152 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 7
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 61 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKE32M7C4 |
|---|---|
| Type designation | Mureva plug |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 9.000 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 264.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 21.000 cm |
| Package 2 Width | 27.000 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 1.765 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 12 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.970 kg |
| Shipping weight | 0.22 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKE32M7C4
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the Mureva plug
What is the rated current of Mureva plug?
The rated current of Mureva plug is 32 A.
Which supply voltage is Mureva plug rated for?
The rated operational voltage of Mureva plug is 380–440 V AC.
What is the HS code of Mureva plug for customs?
The tariff (HS) code on file for Mureva plug is 853669.
Where does Mureva plug ship from, and how fast?
Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
