- Part number
- PKE16M734
- Model no
- Mureva plug
Description
About the Mureva plug
About the Mureva plug

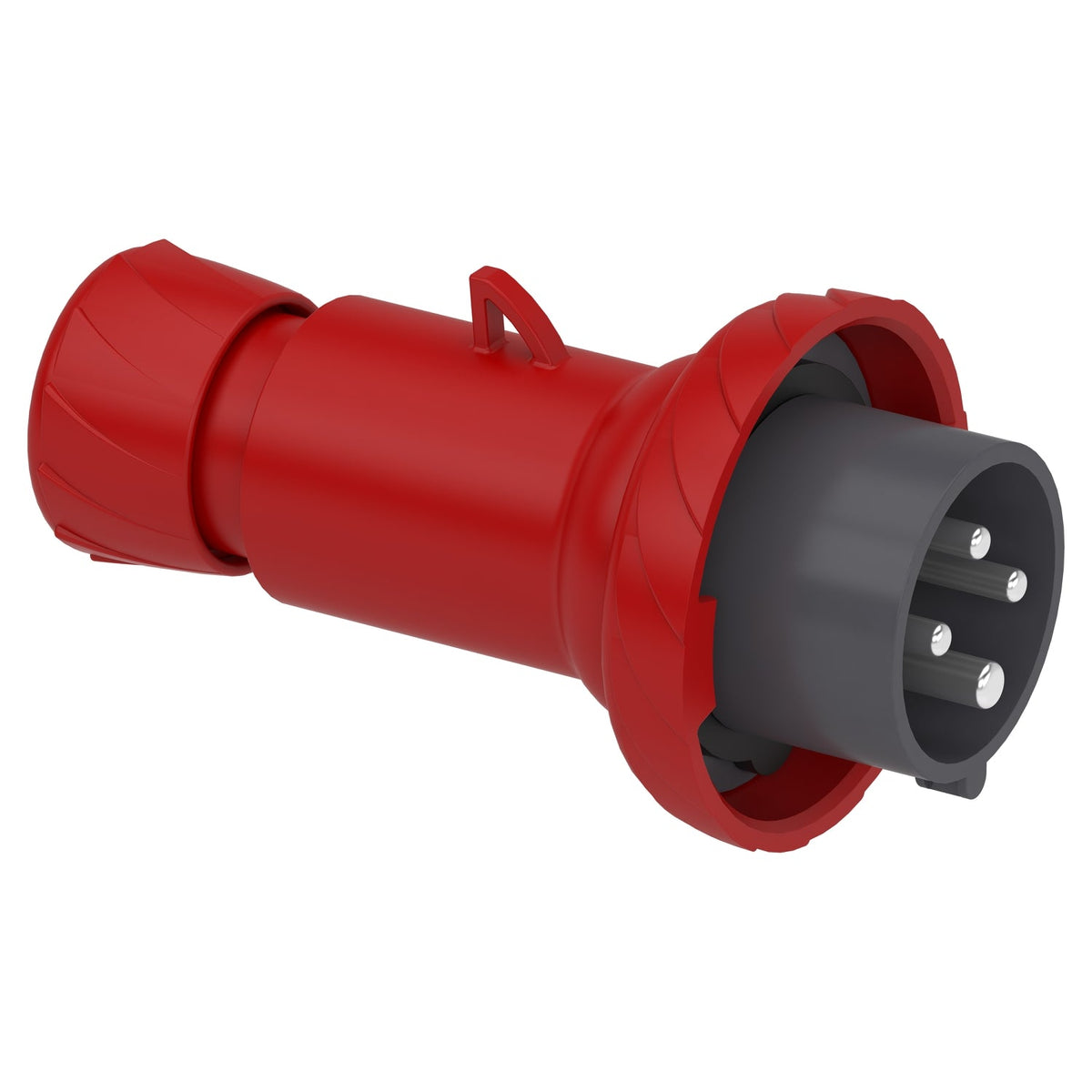

The Schneider Electric PKE16M734 is a PratiKa straight wander plug rated 16 A, 3P+E, for a 380-415 V AC network at 50/60 Hz. It has captive-screw terminal connections for 1-4 mm² cable and reaches IP67/IK08 protection, built to withstand an 850 degC glow-wire fire-resistance test.
Certifications & Standards
- IEC 60309-1
- IEC 60309-2
Selection Notes
The PKE16M734 is the IP67 counterpart to the IP44 PKE16M434, keeping the same 16 A, 3P+E, 380-415 V three-phase rating but sealed for washdown and outdoor exposure. Choose it for sites where the IP44 variant's splash protection is not enough; choose the PKE16M735 instead if the load additionally needs a neutral pole.
Specification
Full specification
Main 7
| Range | Mureva |
|---|---|
| Product or component type | Wander plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + E |
| Network type | AC |
| Outlet standard | Industrial |
Complementary 18
| Plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Sleeves: brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| Cable outer diameter | 8…15 mm |
| cable entry | Fair lead, Cable gland |
| Thread type | Pg 16 |
| Net weight | 0.17 kg |
| Height | 139 mm |
| Width | 81 mm |
| Depth | 81 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
Environment 7
| Standards | IEC 60309-1, IEC 60309-2 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ), -25…40 °C |
Show all 62 specifications ↓ Show less ↑30 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | PKE16M734 |
|---|---|
| Type designation | Mureva plug |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 22
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 175.600 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 18.000 cm |
| Package 2 Width | 26.600 cm |
| Package 2 Length | 26.800 cm |
| Package 2 Weight | 1.890 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 3.912 kg |
| Shipping weight | 0.17 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for PKE16M734
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- IEC 60309-1
- IEC 60309-2
Quick answers
Questions about the Mureva plug
What is the rated current of Mureva plug?
The rated current of Mureva plug is 16 A.
Which supply voltage is Mureva plug rated for?
The rated operational voltage of Mureva plug is 380–415 V AC.
What is the HS code of Mureva plug for customs?
The tariff (HS) code on file for Mureva plug is 853669.
Where does Mureva plug ship from, and how fast?
Mureva plug ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
