Part number
PKB63P535
Model no
Mureva socket
$378.87 On request Dispatch — · From TürkiyeGet a Quote

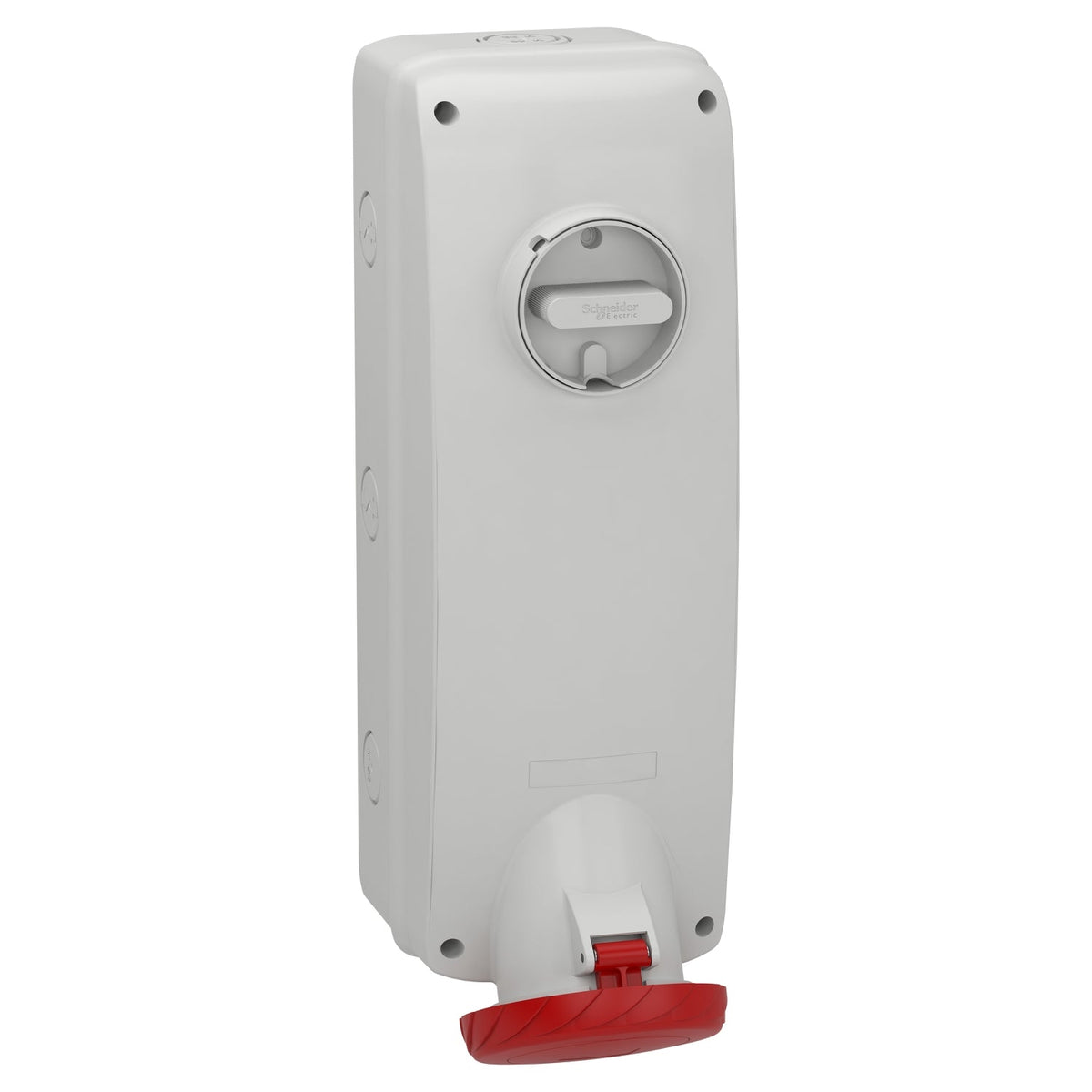

Schneider Electric PKB63P535 Mureva PK Interlocked Socket Wall Mounted 63A 3P+N+E 380-415V Industrial Socket

Mureva PK interlocked industrial socket, wall-mounted, 63A, 3P+N+E, 380-415V, IP65/IK09, screw terminals.

Rated current
63 A
Rated operational voltage
380–415 V AC
Description

About the Mureva socket

The Schneider Electric PKB63P535 is a Mureva PK interlocked industrial socket rated 63 A, 3P+N+E, for a 380-415 V AC network at 50/60 Hz. It is wall-mounted with captive-screw terminal connections and reaches IP65/IK09 protection, built to withstand a 750 degC glow-wire fire-resistance test.

Certifications & Standards

  • IEC 60309-1
  • IEC 60309-2

Selection Notes

The PKB63P535 adds a neutral pole (3P+N+E) to the PKB63P534's 3P+E configuration at the same 63 A, IP65 rating and wall-mounted format, so it is the choice whenever the downstream load needs a neutral reference - single-phase sub-circuits fed from a three-phase supply, for example. Its mechanical interlock blocks plug withdrawal while energized and prevents re-energizing until the plug is fully seated, the same safety behaviour as the rest of the PKB63 interlocked range.

Specification

Full specification

57 values · Last verified 30 Oct 2026

Main 7

Range Mureva
Product or component type Interlocked socket
Device short name Mureva socket
Plug, socket category Low voltage
Poles description 3P + N + E
Network type AC
Outlet standard Industrial

Complementary 20

Mounting mode Wall-mounted
[In] rated current 63 A
[Ue] rated operational voltage 380...415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Protection type Without protection
Plug, socket material Housing: self-extinguishing polymer
Contacts material Pins: stainless steel, Screws: stainless steel
Connections - terminals Captive screws
Maximum cable cross section 35 mm²
Maximum cable outer diameter 25 mm
cable entry Cable gland
Thread type Pg 21
Net weight 3 kg
Base dimension 140 x 430 mm
Height 430 mm
Width 140 mm
Depth 190 mm
Colour Grey (RAL 7035)
Voltage colour Red

Environment 6

Standards IEC 60309-2, IEC 60309-1
IP degree of protection IP65 conforming to IEC 60529
IK degree of protection IK09 conforming to EN 62262
Fire resistance 750 °C conforming to IEC 60695-2-11
Relative humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Ambient air temperature for operation 35 °C ( 86400 s ), -25…40 °C
Show all 57 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number PKB63P535
Type designation Mureva socket
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production

Contractual warranty 1

Warranty (in months) 18

Logistics 16

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 21.000 cm
Package 1 Width 19.200 cm
Package 1 Length 44.400 cm
Package 1 Weight 2.858 kg
Unit Type of Package 2 P12
Number of Units in Package 2 9
Package 2 Height 34.000 cm
Package 2 Width 80.000 cm
Package 2 Length 120.000 cm
Package 2 Weight 37.722 kg
Shipping weight 3.0 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for PKB63P535

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • IEC 60309-2
  • IEC 60309-1
Quick answers

Questions about the Mureva socket

What is the rated current of Mureva socket?

The rated current of Mureva socket is 63 A.

Which supply voltage is Mureva socket rated for?

The rated operational voltage of Mureva socket is 380–415 V AC.

What is the HS code of Mureva socket for customs?

The tariff (HS) code on file for Mureva socket is 853669.

Where does Mureva socket ship from, and how fast?

Mureva socket ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
