- Part number
- MCSESR043F23F0
Description
About the MCSESR043F23F0
About the MCSESR043F23F0

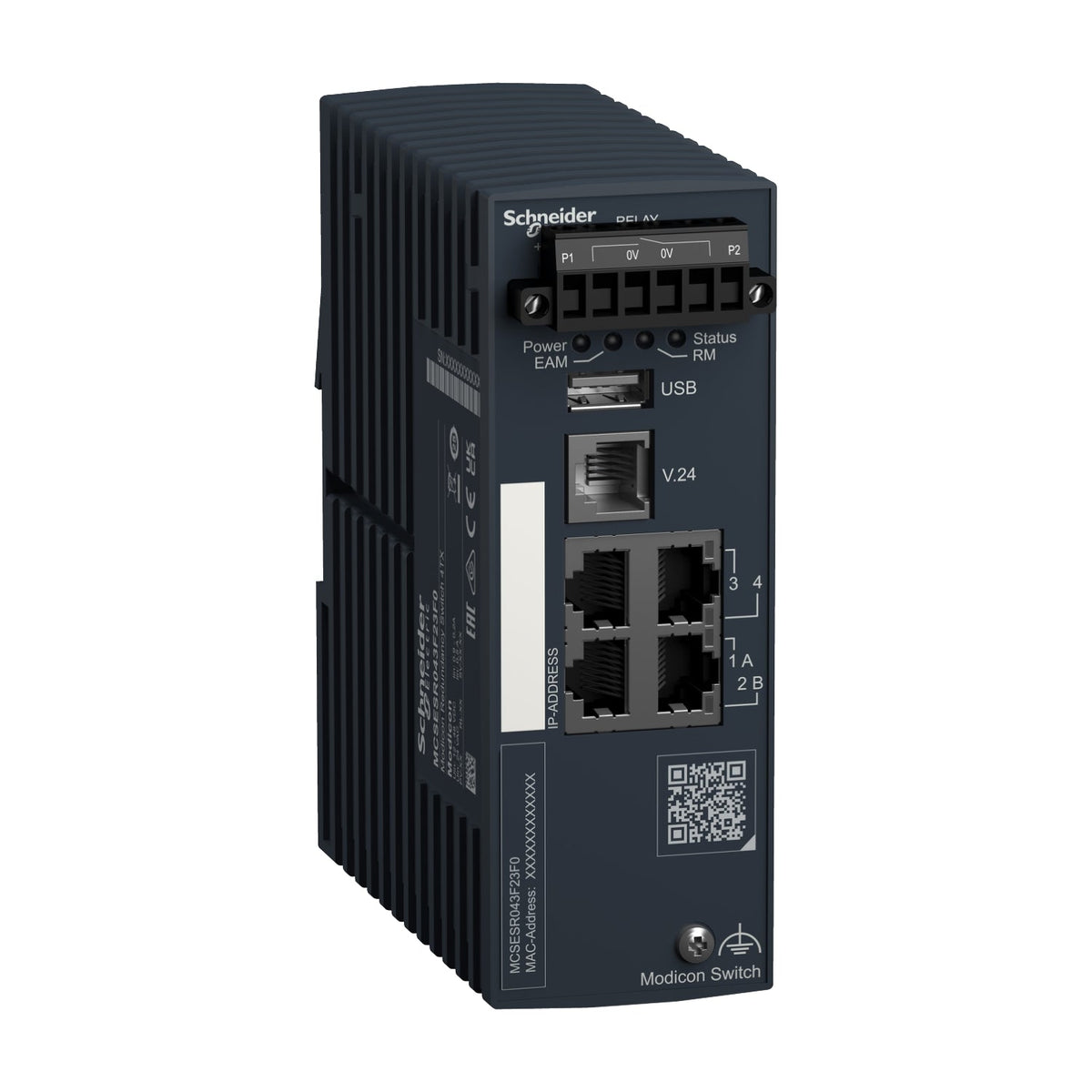

The Schneider Electric MCSESR043F23F0 is a Modicon Networking redundancy switch with 4 copper 10/100BASE-TX ports, built for RSTP, MRP and PRP redundant-network links. It runs Ethernet TCP/IP with SNMP, HTTPS and VLAN-based access control, accepts a 12...48 V DC or 24 V AC supply, and draws 7 W on a 35 mm DIN rail mount.
Certifications & Standards
- CE
- UL
- RCM
- EAC
- UKCA
- UL 61010-2-201
- EN/IEC 61131-2
Applications
The MCSESR043F23F0's shielded RJ45 connectors suit medium-complexity, isolated network segments carrying medium traffic loads — a motor control center or process-area ring rather than a full plant backbone. PRP fits process-control or SCADA links where a failed path must hand over with no detectable interruption, a tighter guarantee than the ring-recovery time of RSTP or MRP on the standard Modicon Networking managed switches.
Selection Notes
The MCSESR043F23F0 is Modicon's dedicated Redundancy Switch, supporting PRP (Parallel Redundancy Protocol) alongside RSTP and MRP — pick it over a standard managed switch when the application needs PRP's zero-recovery-time dual-network redundancy rather than the ring-recovery time of RSTP or MRP. Its dual supply rating (12...48 V DC or 24 V AC) suits installations where the standard switches' 12...24 V DC-only input does not match the available control voltage.
Specification
Full specification
Main 6
| Range of Product | Modicon Networking |
|---|---|
| Product or Component Type | Ethernet TCP/IP managed switch |
| Communication Port Protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP |
| Port Ethernet | 10/100BASE-TX - 4 copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | IP-based port security, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging |
Complementary 22
| Integrated connection type | Shielded RJ45 copper cable |
|---|---|
| Transmission support medium | Twisted shielded pairs cable CAT 5E copper cable |
| Maximum cable distance between devices | 328.08 ft (100 m) copper cable |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication Service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification |
| Redundancy | RSTP, Link aggregation, Link backup, MRP, PRP |
| [Us] rated supply voltage | 12...48 V, 24 V |
| Supply voltage limits | 9.6…60 V DC SELV, 18…30 V AC SELV |
| Power Consumption in W | 7 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function Available | System information, Alarms (Traps) |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for ring manager, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1000 mA |
| Alarm function | Power supply fault, Data link status, Redundancy ring fault, Switch fault, Temperature threshold, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| Width | 1.8 in (46 mm) |
| Height | 5.1 in (130 mm) |
| Depth | 4.1 in (105 mm) |
| Net Weight | 0.64 lb(US) (0.29 kg) |
Environment 6
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 10…95 % non-condensing |
| IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2 |
| Product certifications | CE, UL, RCM, EAC, UKCA |
Show all 47 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | MCSESR043F23F0 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606486351543 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 0.29 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
