- Part number
- MCSESP083F23G0T
Description
About the MCSESP083F23G0T
About the MCSESP083F23G0T

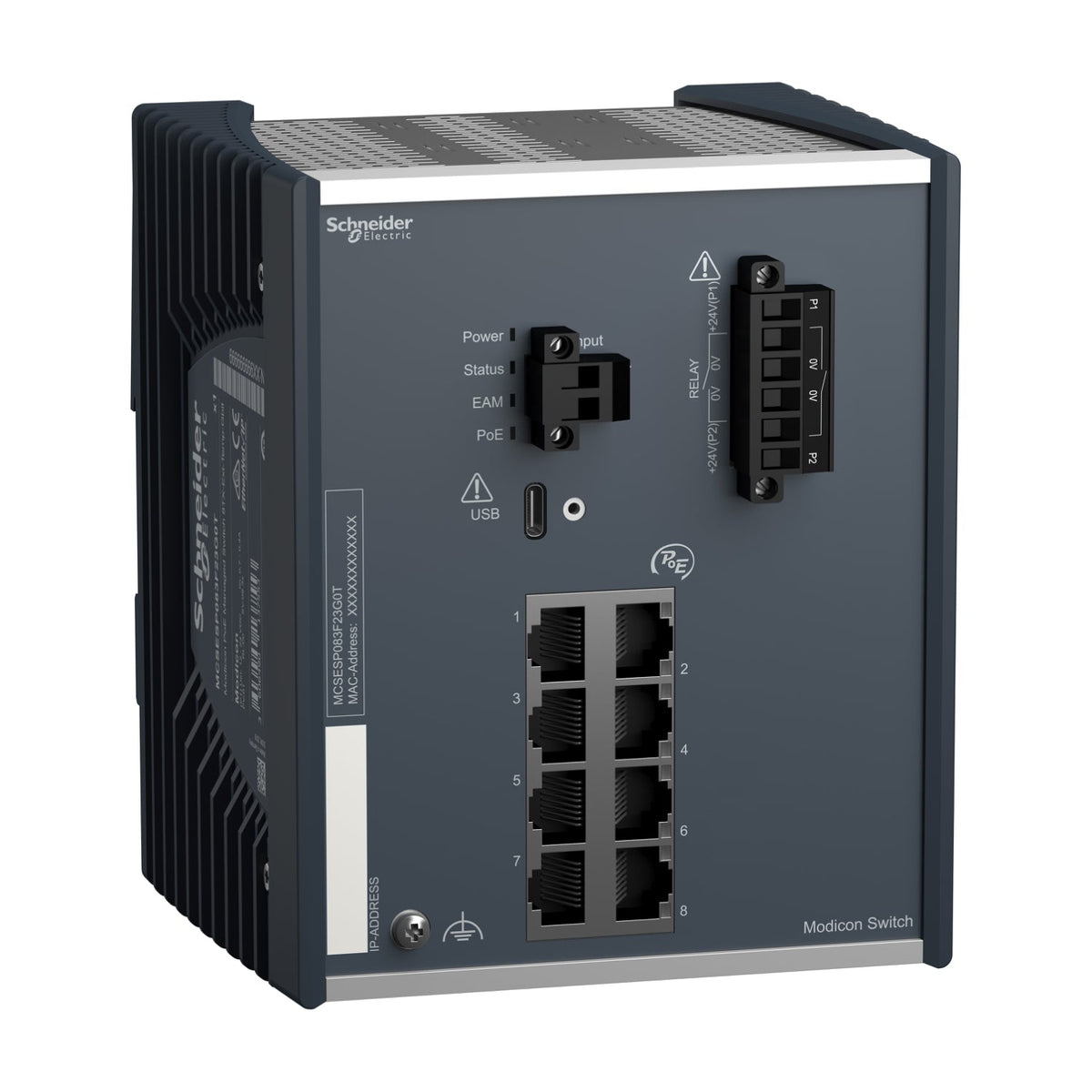

The Schneider Electric MCSESP083F23G0T is a Modicon Networking PoE managed switch with 8 Gigabit copper ports (10/100/1000BASE-TX) that power connected devices such as IP cameras over the same cable. It runs Ethernet TCP/IP with SNMP, HTTPS and Modbus TCP management, draws up to 106 W from a 24 V DC supply, and mounts on a 35 mm DIN rail with a -40...70°C extended temperature rating.
Certifications & Standards
- CE
- UL
- RCM
- DNV
- ATEX
- EAC
- UKCA
- UKEX
- CSA C22.2 No. 213
- FCC Part 15 Class A
- CCC Ex
- UL 61010-2-201
- EN/IEC 61131-2
- IEC 62443-4-2
- EN 50121-4
Selection Notes
The MCSESP083F23G0T is the PoE variant of the Modicon managed switch line, delivering power and data over the same 8 Gigabit copper ports (10/100/1000BASE-TX) — choose it when IP cameras, wireless access points or other powered devices need to run on a single cable without a separate power supply. Its 106 W power budget across 8 ports and extended -40...70°C rating come at a fixed 24 V DC supply (not the 12...24 V range of the standard switches) and 1.4 kg weight, the heaviest unit in the family.
Specification
Full specification
Main 6
| Range of Product | Modicon Networking |
|---|---|
| Product or Component Type | Ethernet TCP/IP managed switch |
| Communication Port Protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server |
| Port Ethernet | 10/100/1000 BASE-TX - 8 copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner, TACACS+ |
Complementary 23
| Integrated connection type | Shielded RJ45 copper (Gbit) |
|---|---|
| Transmission support medium | Twisted shielded pairs cable CAT 5E copper (Gbit) |
| Maximum cable distance between devices | 328.08 ft (100 m) copper (Gbit) |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication Service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification, RSPAN, SFLOW |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP, Redundant coupling protocol, MSTP |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 18…30 V DC SELV |
| Power Consumption in W | 106 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function Available | Security status, Alarms (Traps), System information, Report |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for PoE power supply, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| Width | 4.8 in (122.4 mm) |
| Height | 5.7 in (144.2 mm) |
| Depth | 4.61 in (117.15 mm) |
| Net Weight | 3.09 lb(US) (1.4 kg) |
Environment 6
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
|---|---|
| Relative Humidity | 1…95 % non-condensing |
| IP Degree of Protection | IP30 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2, IEC 62443-4-2, EN 50121-4 |
| Product certifications | CE, UL, RCM, DNV, ATEX, EAC, UKCA, UKEX, CSA C22-2 No 213, FCC part 15 class A, CCC Ex |
Show all 48 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | MCSESP083F23G0T |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481813817 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 1.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for MCSESP083F23G0T
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- UKCA
- CCC
- EAC
- UL 61010-2-201
- EN/IEC 61131-2
- IEC 62443-4-2
- EN 50121-4
Quick answers
Questions about the MCSESP083F23G0T
What is the HS code of MCSESP083F23G0T for customs?
The tariff (HS) code on file for MCSESP083F23G0T is 851762.
What is the EAN of MCSESP083F23G0T?
The EAN (GTIN) of MCSESP083F23G0T is 3606481813817.
Where does MCSESP083F23G0T ship from, and how fast?
MCSESP083F23G0T ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
