Part number
MCSESP083F23G0
$3,986.02 On request Dispatch — · From TürkiyeGet a Quote
Modicon Networking

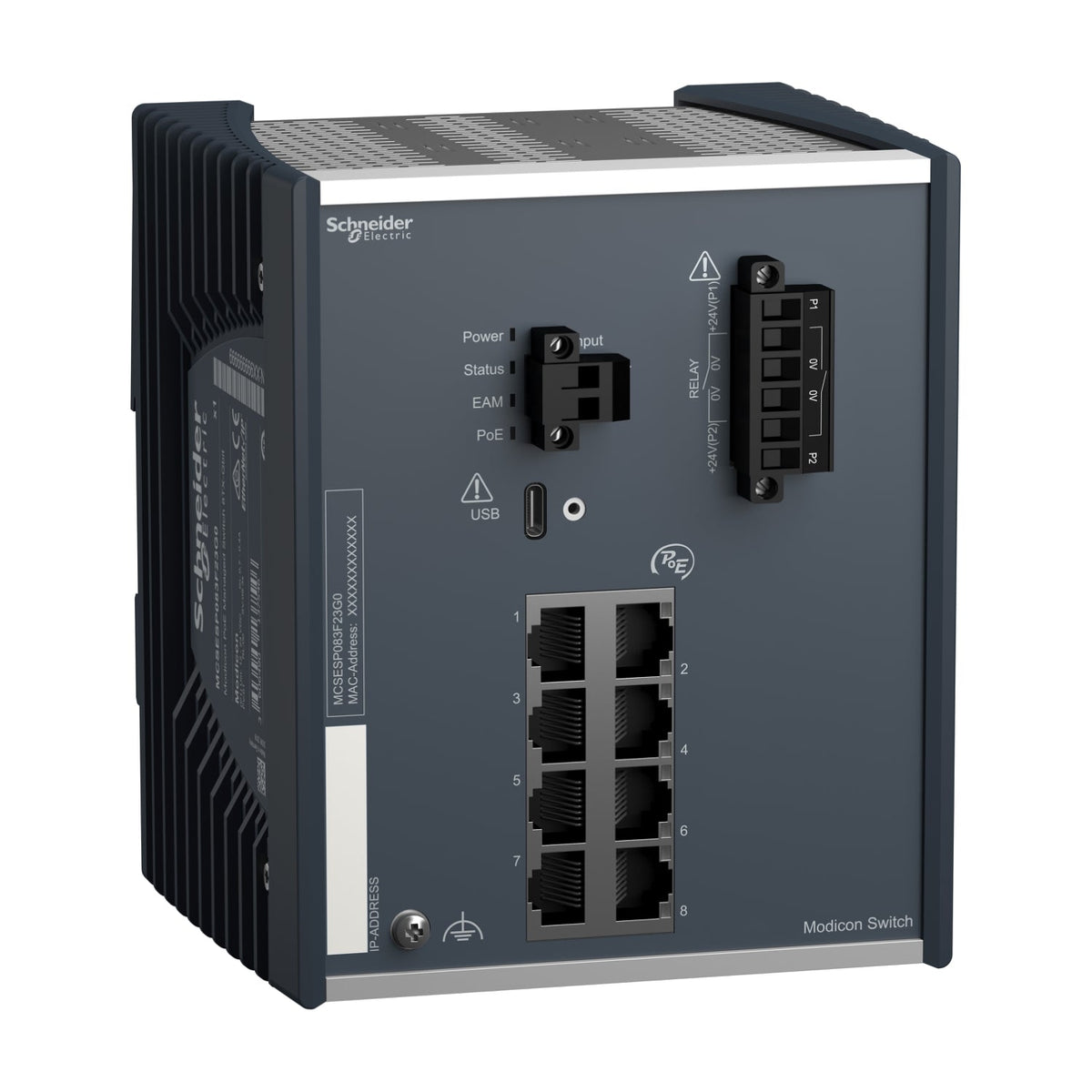

Schneider Electric MCSESP083F23G0 Modicon 8-Port Gigabit PoE Managed Switch Industrial Ethernet Switch

Modicon PoE managed switch, 8 Gigabit copper ports, 106 W budget, DIN rail.

Communication
Ethernet TCP/IP, Modbus TCP, OPC UA, IEC 61850 MMS, SNMP, HTTPS, PoE
EAN
3606481813800
Description

About the MCSESP083F23G0

The Schneider Electric MCSESP083F23G0 is a Modicon Networking PoE managed switch with 8 Gigabit copper ports (10/100/1000BASE-TX) that power connected devices such as IP cameras over the same cable. It runs Ethernet TCP/IP with SNMP, HTTPS and Modbus TCP management, draws up to 106 W from a 24 V DC supply, and mounts on a 35 mm DIN rail with a 0...60 °C rating.

Certifications & Standards

  • CE
  • UL
  • RCM
  • DNV
  • ATEX
  • EAC
  • UKCA
  • UKEX
  • CSA C22.2 No. 213
  • FCC Part 15 Class A
  • CCC Ex
  • UL 61010-2-201
  • EN/IEC 61131-2
  • IEC 62443-4-2
  • EN 50121-4

Selection Notes

The MCSESP083F23G0 is the standard-temperature PoE variant of the Modicon managed switch line, delivering power and Gigabit data over the same 8 copper ports — choose it when IP cameras, wireless access points or other powered devices need to run on a single cable without a separate supply. It runs on a fixed 24 V DC input (not the 12...24 V range of the standard managed switches) because the 106 W PoE budget requires the higher rail, and at 1.4 kg it is heavier than the non-PoE 8-port switches in the family.

Specification

Full specification

48 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon Networking
Product or Component Type Ethernet TCP/IP managed switch
Communication Port Protocol Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server
Port Ethernet 10/100/1000 BASE-TX - 8 copper cable
Maximum number of switches in cascade Unlimited
Cybersecurity Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner, TACACS+

Complementary 23

Integrated connection type Shielded RJ45 copper (Gbit)
Transmission support medium Twisted shielded pairs cable CAT 5E copper (Gbit)
Maximum cable distance between devices 328.08 ft (100 m) copper (Gbit)
Ethernet service Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Communication Service TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection
Diagnostics run time Signal contact, Self test, MAC notification, RSPAN, SFLOW
Maximum number of switches in a ring 50
Redundancy HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP, Redundant coupling protocol, MSTP
[Us] rated supply voltage 24 V
Supply voltage limits 18…30 V DC SELV
Power Consumption in W 106 W
Electrical connection Removable connector 6 ways power supply
Mounting Support 35 mm symmetrical DIN rail
Marking CE, CULus, RCM
Function Available Security status, Alarms (Traps), System information, Report
Local signalling 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for PoE power supply, 1 dual colour LED (green/yellow) for channel diagnostic
Alarm output 1 voltfree contact 1 A
Alarm function Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed
Ethernet cabling system TF switches
Width 4.8 in (122.4 mm)
Height 5.7 in (144.2 mm)
Depth 4.61 in (117.15 mm)
Net Weight 3.09 lb(US) (1.4 kg)

Environment 6

Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative Humidity 1…95 % non-condensing
IP Degree of Protection IP30
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Standards UL 61010-2-201, EN/IEC 61131-2, IEC 62443-4-2, EN 50121-4
Product certifications CE, UL, RCM, DNV, ATEX, EAC, UKCA, UKEX, CSA C22-2 No 213, FCC part 15 class A, CCC Ex
Show all 48 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number MCSESP083F23G0
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481813800

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 1.4 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for MCSESP083F23G0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • UKCA
  • CCC
  • EAC
  • UL 61010-2-201
  • EN/IEC 61131-2
  • IEC 62443-4-2
  • EN 50121-4
Quick answers

Questions about the MCSESP083F23G0

What is the HS code of MCSESP083F23G0 for customs?

The tariff (HS) code on file for MCSESP083F23G0 is 851762.

What is the EAN of MCSESP083F23G0?

The EAN (GTIN) of MCSESP083F23G0 is 3606481813800.

Where does MCSESP083F23G0 ship from, and how fast?

MCSESP083F23G0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
