Part number
MCSESM093F1CS0
$2,113.18 On request Dispatch — · From TürkiyeGet a Quote
Modicon Networking

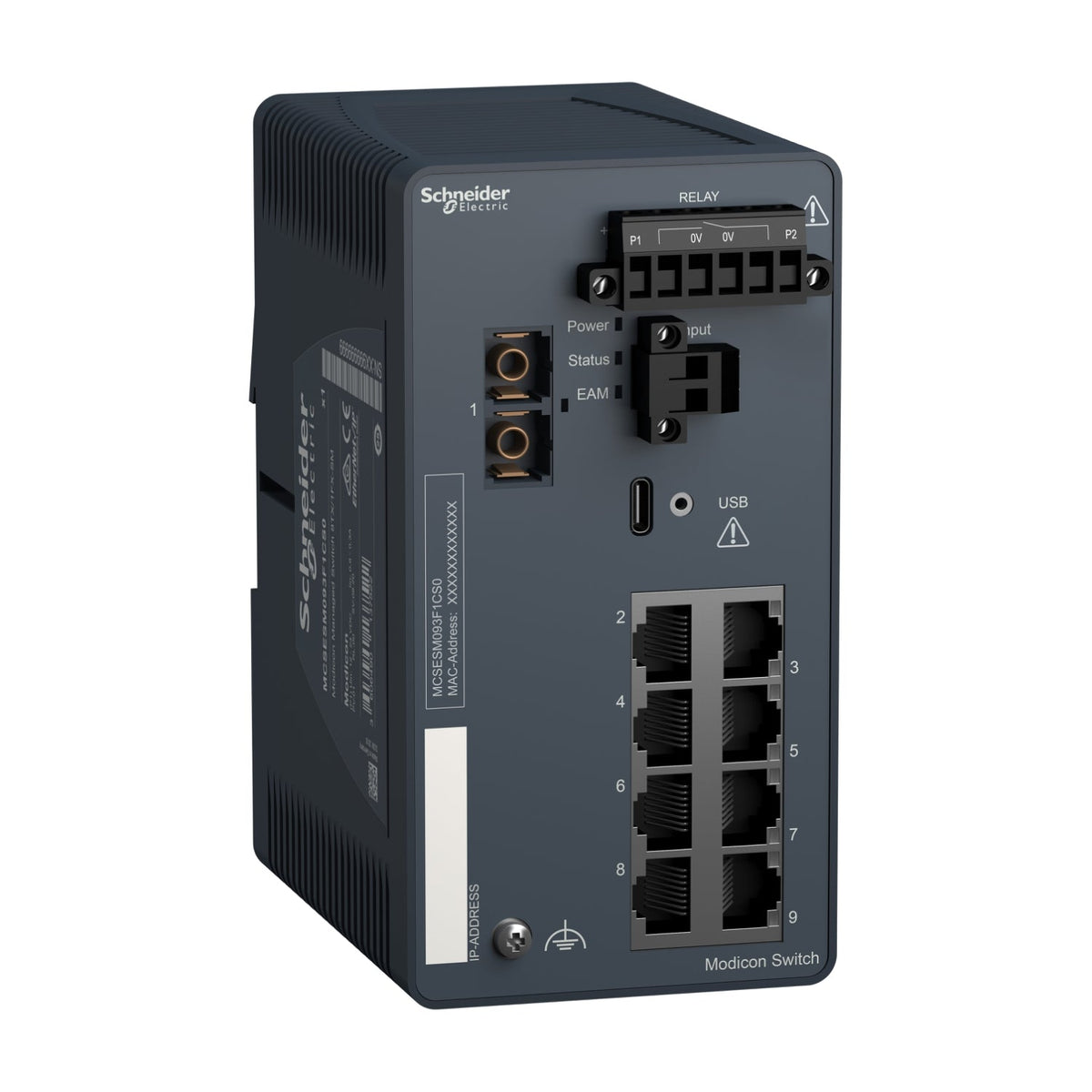

Schneider Electric MCSESM093F1CS0 Modicon 8-Port 1 Fiber SC SM Managed Switch Industrial Ethernet Switch

Modicon managed switch, 8 copper + 1 single-mode fiber port, RSTP/HiPER Ring, DIN rail.

Communication
Ethernet TCP/IP, Modbus TCP, OPC UA, IEC 61850 MMS, SNMP, HTTPS
EAN
3606481463333
Description

About the MCSESM093F1CS0

The Schneider Electric MCSESM093F1CS0 is a Modicon Networking managed Ethernet switch combining 8 copper 10/100BASE-TX ports with 1 single-mode 100BASE-FX fiber port for fiber uplinks up to 30 km. It runs Ethernet TCP/IP with SNMP, HTTPS, Modbus TCP and OPC UA management, supports RSTP, MRP and HiPER Ring redundancy, and draws 7 W from a 12...24 V DC supply on a 35 mm DIN rail.

Certifications & Standards

  • CE
  • UL
  • RCM
  • DNV
  • ATEX
  • EAC
  • UKCA
  • CSA C22.2 No. 213
  • UKEX
  • FCC Part 15 Class A
  • CCC Ex
  • UL 61010-2-201
  • EN/IEC 61131-2
  • IEC 61850-3
  • IEC 62443-4-2
  • EN 50121-4

Selection Notes

The MCSESM093F1CS0 steps up to 8 copper ports while keeping a single single-mode fiber uplink reaching up to 30 km (9/125 µm) — choose it over the 4-port 053 family when more field devices need to connect locally, and over the CU0 multimode version when the fiber run is too long for multimode. It fits larger cell-level switch counts under the same 50-switch ring and unlimited-cascade limits as the rest of the Modicon Networking managed line.

Specification

Full specification

51 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon Networking
Product or Component Type Ethernet TCP/IP managed switch
Communication Port Protocol Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, IEC 61850 MMS Server, OPC UA
Port Ethernet 100BASE-FX - 1 fiber optic, 10/100BASE-TX - 8 copper cable
Maximum number of switches in cascade Unlimited
Cybersecurity Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner, TACACS+

Complementary 26

Integrated connection type Duplex SC fiber optic, Shielded RJ45 copper cable
Transmission support medium Single mode optical fiber fiber optic, Twisted shielded pairs cable CAT 5E copper cable
Maximum cable distance between devices 328.08 ft (100 m) copper cable
Optic fiber length 18.6 mile (30 km) 9/125 µm
Attenuation 0…16 dB 9/125 µm)
Ethernet service Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Communication Service TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection
Diagnostics run time Signal contact, Self test, MAC notification, RSPAN, SFLOW
Maximum number of switches in a ring 50
Redundancy HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP, Redundant coupling protocol, MSTP
[Us] rated supply voltage 12...24 V
Supply voltage limits 9.6…32 V DC SELV
Power Consumption in W 7 W
Electrical connection Removable connector 6 ways power supply
Mounting Support 35 mm symmetrical DIN rail
Marking CE, CULus, RCM
Function Available Security status, Alarms (Traps), System information, Report
Local signalling 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
Alarm output 1 voltfree contact 1 A
Alarm function Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed
Ethernet cabling system TF switches
MTBF reliability 2957173 H
Width 2.9 in (73 mm)
Height 5.6 in (142.8 mm)
Depth 4.6 in (117.6 mm)
Net Weight 1.10 lb(US) (0.50 kg)

Environment 6

Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative Humidity 1…95 % non-condensing
IP Degree of Protection IP30
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Standards UL 61010-2-201, EN/IEC 61131-2, IEC 61850-3, IEC 62443-4-2, EN 50121-4
Product certifications CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex
Show all 51 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number MCSESM093F1CS0
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481463333

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.5 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for MCSESM093F1CS0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • UKCA
  • CCC
  • EAC
  • UL 61010-2-201
  • EN/IEC 61131-2
  • IEC 61850-3
  • IEC 62443-4-2
  • EN 50121-4
Quick answers

Questions about the MCSESM093F1CS0

What is the HS code of MCSESM093F1CS0 for customs?

The tariff (HS) code on file for MCSESM093F1CS0 is 851762.

What is the EAN of MCSESM093F1CS0?

The EAN (GTIN) of MCSESM093F1CS0 is 3606481463333.

Where does MCSESM093F1CS0 ship from, and how fast?

MCSESM093F1CS0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
