- Part number
- MCSESM083F23F0H
Description
About the MCSESM083F23F0H
About the MCSESM083F23F0H

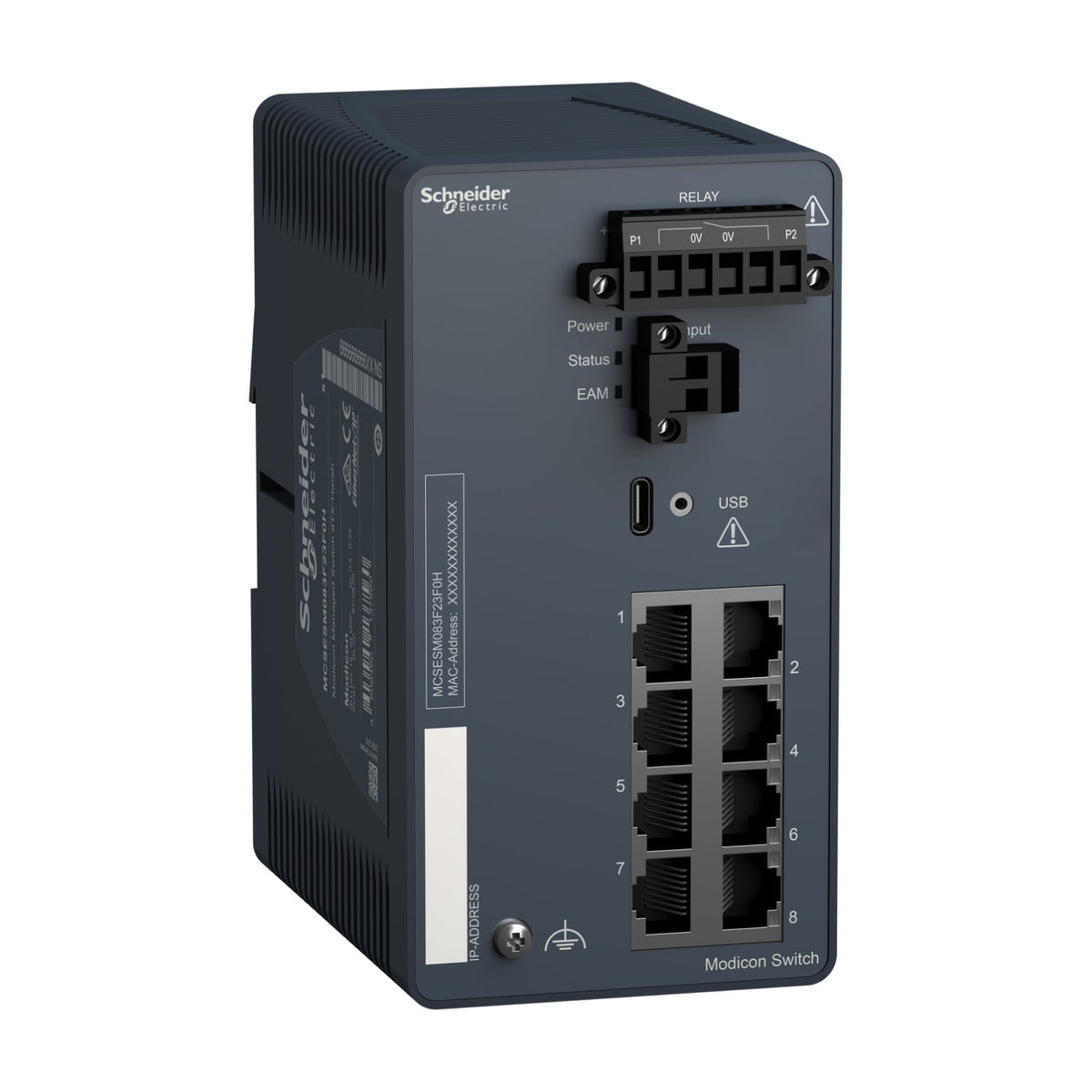

The Schneider Electric MCSESM083F23F0H is the harsh-environment version of the Modicon Networking 8-port managed switch, with 8 copper 10/100BASE-TX ports and the same Ethernet TCP/IP, SNMP and Modbus TCP management set. Conformal coating and a -40...70°C operating range extend it beyond the standard switch, while it still draws 6 W from a 12...24 V DC supply on a 35 mm DIN rail.
Certifications & Standards
- CE
- UL
- RCM
- DNV
- ATEX
- EAC
- UKCA
- CSA C22.2 No. 213
- UKEX
- FCC Part 15 Class A
- CCC Ex
- UL 61010-2-201
- EN/IEC 61131-2
- IEC 61850-3
- IEC 62443-4-2
- EN 50121-4
Selection Notes
The MCSESM083F23F0H is the harsh-environment version of the 8-copper-port switch, rated -40...70°C with a conformal-coated board for condensation and contaminant resistance — choose it over the standard-temperature 8-port variant for outdoor enclosures, unheated panels or ambient extremes outside the 0...60°C standard range. Port count, protocol set and redundancy options are otherwise identical to the standard-temperature unit.
Specification
Full specification
Main 7
| Range of Product | Modicon Networking |
|---|---|
| Product or Component Type | Ethernet TCP/IP managed switch |
| Product Specific Application | For severe environments |
| Communication Port Protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server |
| Port Ethernet | 10/100BASE-TX - 8 copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner, TACACS+ |
Complementary 24
| Integrated connection type | Shielded RJ45 copper cable |
|---|---|
| Transmission support medium | Twisted shielded pairs cable CAT 5E copper cable |
| Maximum cable distance between devices | 328.08 ft (100 m) copper cable |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication Service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification, RSPAN, SFLOW |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP, Redundant coupling protocol, MSTP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power Consumption in W | 6 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function Available | Security status, Alarms (Traps), System information, Report |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| MTBF reliability | 4467842 H |
| Width | 2.9 in (73 mm) |
| Height | 5.6 in (142.8 mm) |
| Depth | 4.6 in (117.6 mm) |
| Net Weight | 1.10 lb(US) (0.50 kg) |
Environment 7
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
|---|---|
| Relative Humidity | 1…95 % non-condensing |
| IP Degree of Protection | IP30 |
| Protective treatment | Conformal coating |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2, IEC 61850-3, IEC 62443-4-2, EN 50121-4 |
| Product certifications | CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex |
Show all 51 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | MCSESM083F23F0H |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481813824 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 0.5 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for MCSESM083F23F0H
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- UKCA
- CCC
- EAC
- UL 61010-2-201
- EN/IEC 61131-2
- IEC 61850-3
- IEC 62443-4-2
- EN 50121-4
Quick answers
Questions about the MCSESM083F23F0H
What is the HS code of MCSESM083F23F0H for customs?
The tariff (HS) code on file for MCSESM083F23F0H is 851762.
What is the EAN of MCSESM083F23F0H?
The EAN (GTIN) of MCSESM083F23F0H is 3606481813824.
Where does MCSESM083F23F0H ship from, and how fast?
MCSESM083F23F0H ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
