- Part number
- MCSESM063F2CU0
Description
About the MCSESM063F2CU0
About the MCSESM063F2CU0

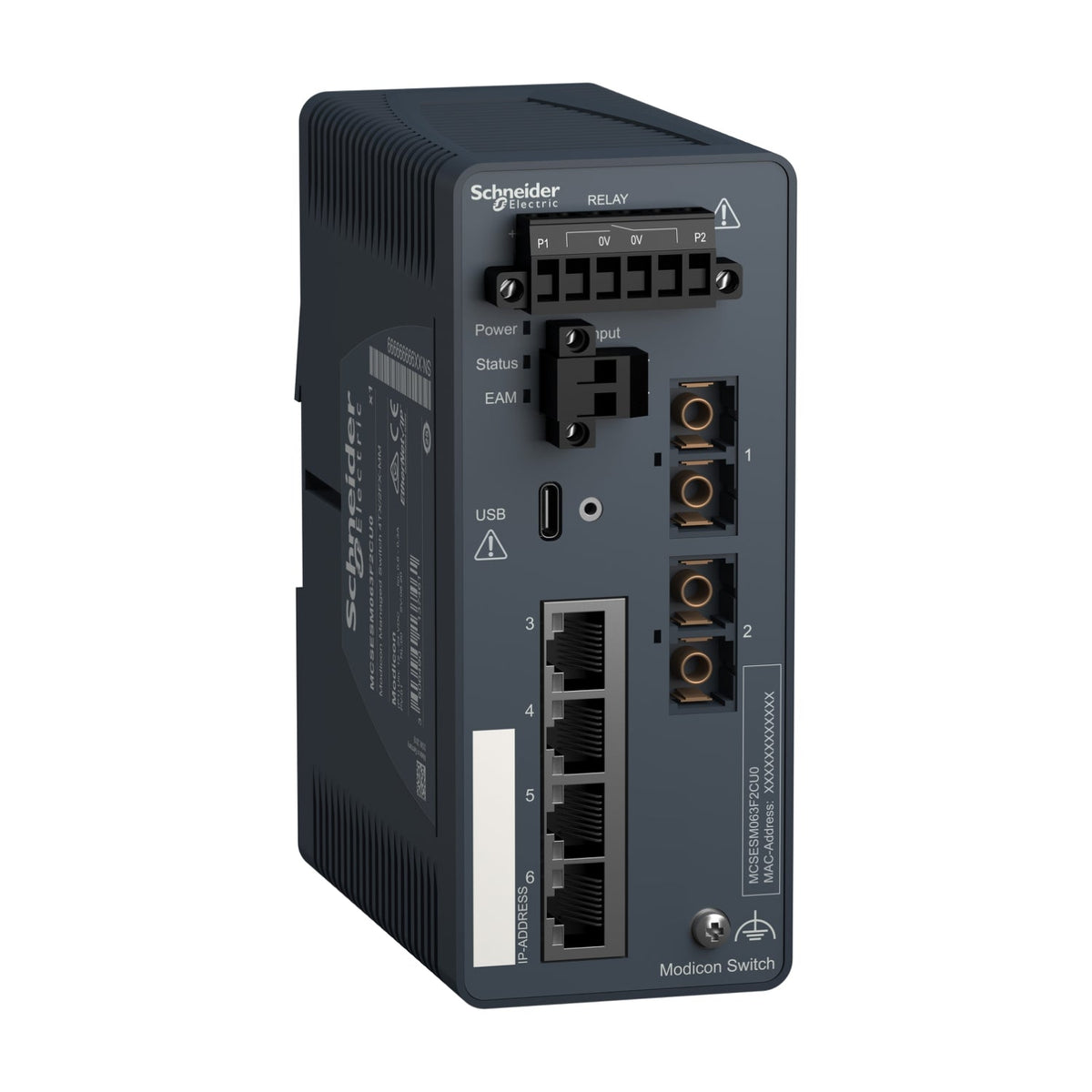

The Schneider Electric MCSESM063F2CU0 is a Modicon Networking managed Ethernet switch combining 4 copper 10/100BASE-TX ports with 2 multimode 100BASE-FX fiber ports for a redundant fiber uplink path. It supports Ethernet TCP/IP with SNMP, HTTPS, Modbus TCP and OPC UA management, RSTP/MRP/HiPER Ring redundancy, and draws 7 W from a 12...24 V DC supply on a 35 mm DIN rail.
Certifications & Standards
- CE
- UL
- RCM
- DNV
- ATEX
- EAC
- UKCA
- CSA C22.2 No. 213
- UKEX
- FCC Part 15 Class A
- CCC Ex
- UL 61010-2-201
- EN/IEC 61131-2
- IEC 61850-3
- IEC 62443-4-2
- EN 50121-4
Selection Notes
The MCSESM063F2CU0 doubles the fiber side of the 4-copper switch to 2 multimode ports instead of 1, enabling a fiber ring or a dedicated redundant uplink — choose it over the single-fiber 053 variant when a second fiber path is needed for HiPER Ring or MRP redundancy. Multimode reach tops out at 5 km (50/125 µm) or 4 km (62.5/125 µm); pick the single-mode CS0 family instead for longer runs. It is UL 916 listed (Open Class Energy Management Equipment, file E80146) for severe-environment installations in the US and Canada.
Specification
Full specification
Main 6
| Range of Product | Modicon Networking |
|---|---|
| Product or Component Type | Ethernet TCP/IP managed switch |
| Communication Port Protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server |
| Port Ethernet | 100BASE-FX - 2 fiber optic, 10/100BASE-TX - 4 copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner, TACACS+ |
Complementary 26
| Integrated connection type | Duplex SC fiber optic, Shielded RJ45 copper cable |
|---|---|
| Transmission support medium | Multimode optical fiber fiber optic, Twisted shielded pairs cable CAT 5E copper cable |
| Maximum cable distance between devices | 328.08 ft (100 m) copper cable |
| Optic fiber length | 2.5 mile (4 km) 62.5/125 µm, 3.1 mile (5 km) 50/125 µm |
| Attenuation | 0…11 dB 62.2/125 µm), 0…8 dB 50/125 µm) |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication Service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification, RSPAN, SFLOW |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP, Redundant coupling protocol, MSTP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power Consumption in W | 7 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function Available | Security status, Alarms (Traps), System information, Report |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| MTBF reliability | 2638177 H |
| Width | 2.2 in (57 mm) |
| Height | 5.6 in (142.8 mm) |
| Depth | 4.6 in (117.6 mm) |
| Net Weight | 0.93 lb(US) (0.42 kg) |
Environment 6
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 1…95 % non-condensing |
| IP Degree of Protection | IP30 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2, IEC 61850-3, IEC 62443-4-2, EN 50121-4 |
| Product certifications | CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex |
Show all 51 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | MCSESM063F2CU0 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481463289 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 0.42 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
