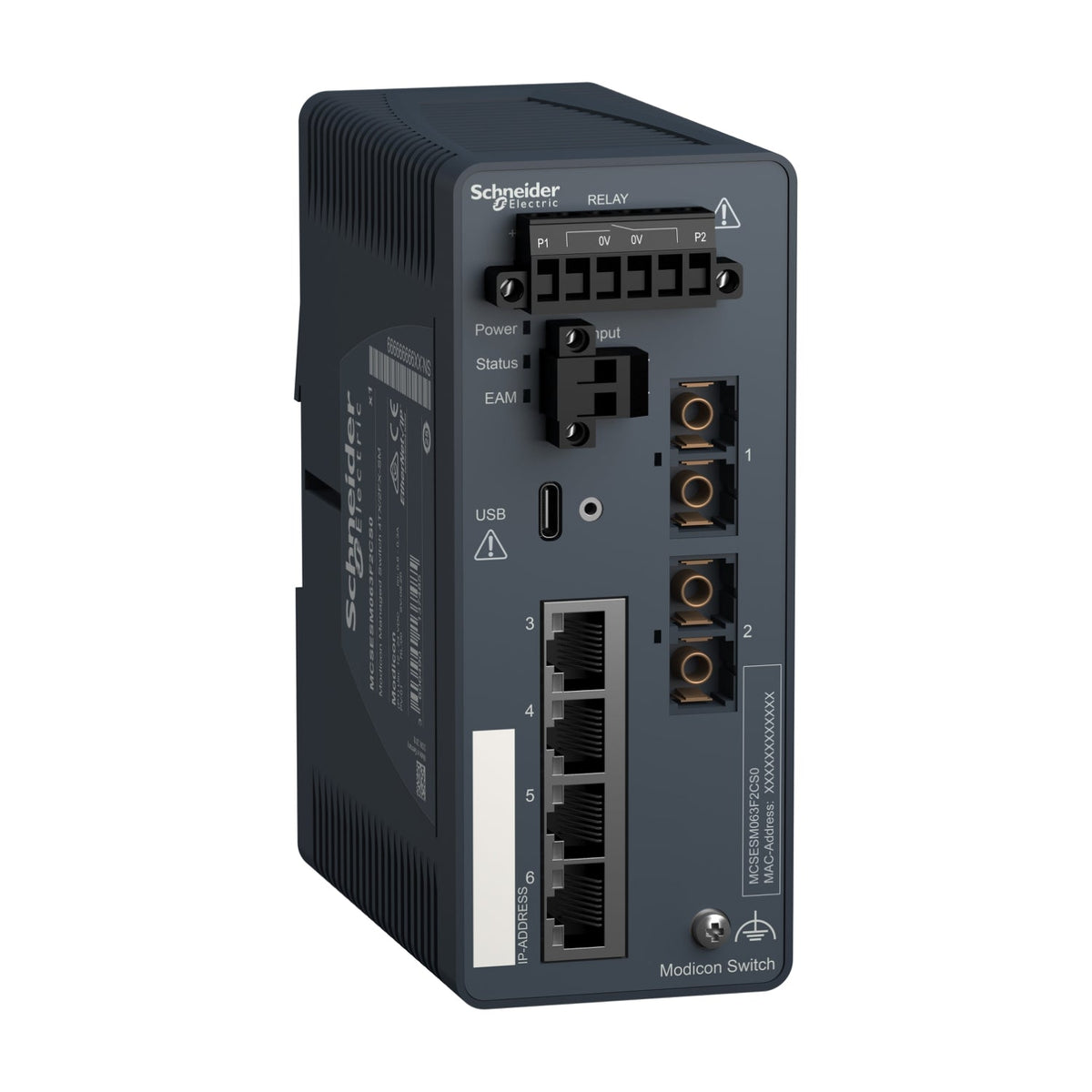

Modicon NetworkingSchneider Electric MCSESM063F2CS0 Modicon 4-Port 2 Fiber SFP Managed Switch Industrial Ethernet Switch
Modicon managed switch, 4 copper + 2 single-mode fiber ports, 32.5 km reach, DIN rail.
Description
About the MCSESM063F2CS0
About the MCSESM063F2CS0
The Schneider Electric MCSESM063F2CS0 is a Modicon Networking managed Ethernet switch with 4 copper 10/100BASE-TX ports and 2 single-mode 100BASE-FX fiber ports reaching up to 32.5 km. It manages traffic over Ethernet TCP/IP, SNMP, HTTPS and Modbus TCP, supports RSTP, MRP and HiPER Ring redundancy, draws 7 W from a 12...24 V DC supply, and mounts on a 35 mm DIN rail.
Certifications & Standards
- CE
- UL
- RCM
- DNV
- ATEX
- EAC
- UKCA
- CSA C22.2 No. 213
- UKEX
- FCC Part 15 Class A
- CCC Ex
- UL 61010-2-201
- EN/IEC 61131-2
- IEC 61850-3
- IEC 62443-4-2
- EN 50121-4
Selection Notes
The MCSESM063F2CS0 pairs 4 copper ports with 2 single-mode fiber ports, extending reach to 32.5 km (9/125 µm) — choose it over a multimode-fiber variant when the fiber run crosses a longer distance between buildings or remote panels. The second fiber port also allows a redundant point-to-point link or a two-node ring segment without consuming a copper port for the uplink.
Specification
Full specification
Main 6
| Range of Product | Modicon Networking |
|---|---|
| Product or Component Type | Ethernet TCP/IP managed switch |
| Communication Port Protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server |
| Port Ethernet | 100BASE-FX - 2 fiber optic, 10/100BASE-TX - 4 copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner, TACACS+ |
Complementary 26
| Integrated connection type | Duplex SC fiber optic, Shielded RJ45 copper cable |
|---|---|
| Transmission support medium | Single mode optical fiber fiber optic, Twisted shielded pairs cable CAT 5E copper cable |
| Maximum cable distance between devices | 328.08 ft (100 m) copper cable |
| Optic fiber length | 20.2 mile (32.5 km) 9/125 µm |
| Attenuation | 0…16 dB 9/125 µm) |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication Service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification, RSPAN, SFLOW |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP, Redundant coupling protocol, MSTP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power Consumption in W | 7 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting Support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function Available | Security status, Alarms (Traps), System information, Report |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| MTBF reliability | 2638177 H |
| Width | 2.2 in (57 mm) |
| Height | 5.6 in (142.8 mm) |
| Depth | 4.6 in (117.6 mm) |
| Net Weight | 0.93 lb(US) (0.42 kg) |
Environment 6
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
|---|---|
| Relative Humidity | 1…95 % non-condensing |
| IP Degree of Protection | IP30 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2, IEC 61850-3, IEC 62443-4-2, EN 50121-4 |
| Product certifications | CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex |
Show all 51 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | MCSESM063F2CS0 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606481463272 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | DE |
|---|---|
| Shipping weight | 0.42 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for MCSESM063F2CS0
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CSA
- CE
- UKCA
- CCC
- EAC
- UL 61010-2-201
- EN/IEC 61131-2
- IEC 61850-3
- IEC 62443-4-2
- EN 50121-4
Quick answers
Questions about the MCSESM063F2CS0
What is the HS code of MCSESM063F2CS0 for customs?
The tariff (HS) code on file for MCSESM063F2CS0 is 851762.
What is the EAN of MCSESM063F2CS0?
The EAN (GTIN) of MCSESM063F2CS0 is 3606481463272.
Where does MCSESM063F2CS0 ship from, and how fast?
MCSESM063F2CS0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
