Part number
MCSESM053F1CU0
$1,082.21 On request Dispatch — · From TürkiyeGet a Quote
Modicon Networking

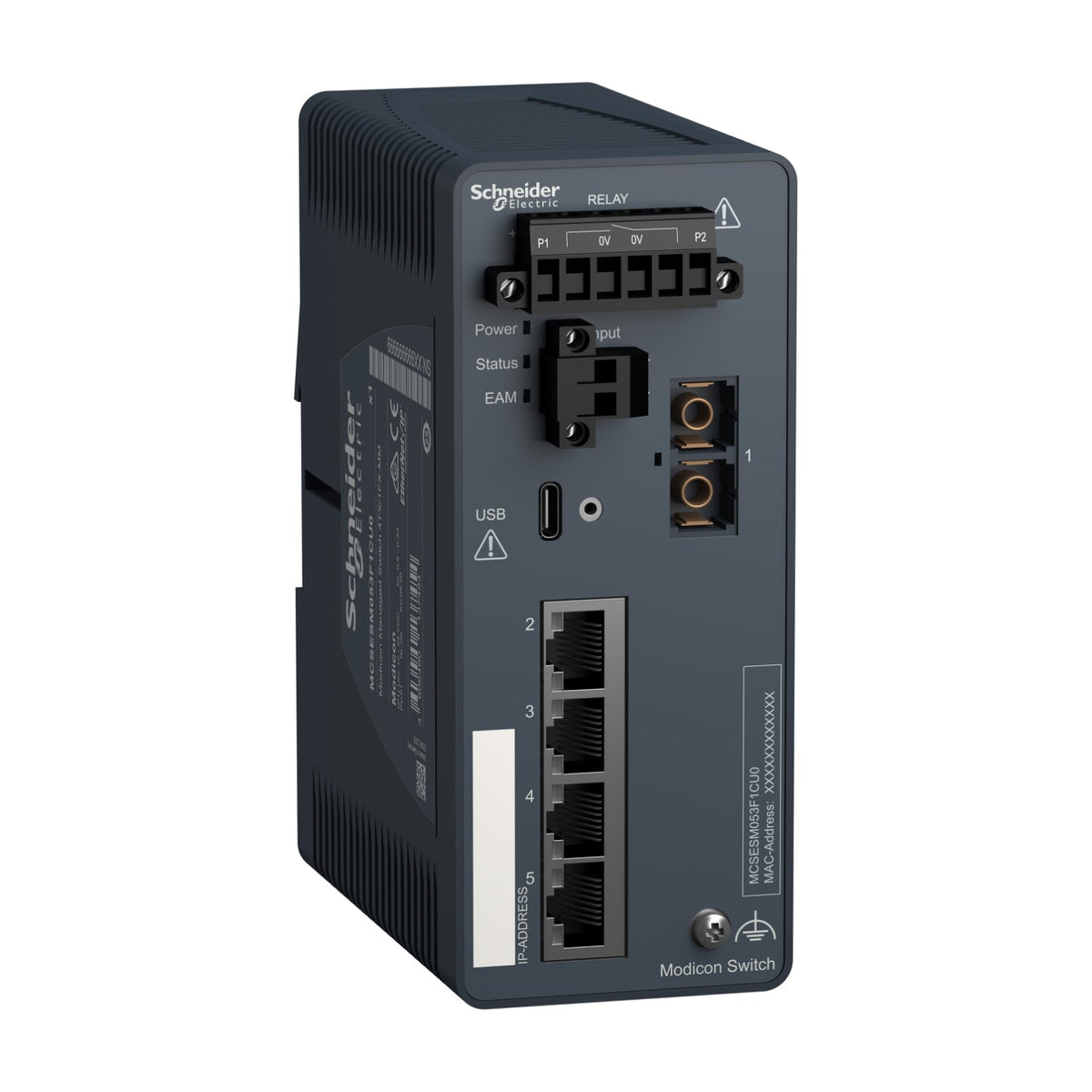

Schneider Electric MCSESM053F1CU0 Modicon 4-Port 1 Fiber SFP Managed Switch Industrial Ethernet Switch

Modicon managed switch, 4 copper + 1 multimode fiber port, RSTP/HiPER Ring, DIN rail.

Communication
Ethernet TCP/IP, Modbus TCP, OPC UA, IEC 61850 MMS, SNMP, HTTPS
EAN
3606481463265
Description

About the MCSESM053F1CU0

The Schneider Electric MCSESM053F1CU0 is a Modicon Networking managed Ethernet switch combining 4 copper 10/100BASE-TX ports with 1 multimode 100BASE-FX fiber port for longer-distance uplinks. It runs Ethernet TCP/IP with SNMP, HTTPS, Modbus TCP and OPC UA management, supports RSTP, MRP and HiPER Ring redundancy, and draws 6 W from a 12...24 V DC supply on a 35 mm DIN rail mount.

Certifications & Standards

  • CE
  • UL
  • RCM
  • DNV
  • ATEX
  • EAC
  • UKCA
  • CSA C22.2 No. 213
  • UKEX
  • FCC Part 15 Class A
  • CCC Ex
  • UL 61010-2-201
  • EN/IEC 61131-2
  • IEC 61850-3
  • IEC 62443-4-2
  • EN 50121-4

Selection Notes

The MCSESM053F1CU0 adds a single 100BASE-FX multimode fiber port to 4 copper ports, making it the choice when one segment needs to run beyond the 100 m copper limit — multimode fiber reaches up to 5 km (50/125 µm) or 4 km (62.5/125 µm). Use it as a fiber uplink from a machine cell toward a line-level ring built on other switches in the Modicon Networking range. It carries UL 916 listing (file E80146) for US/Canada panel installations alongside the shared CE/UL/EAC certification set.

Specification

Full specification

51 values · Last verified 30 Oct 2026

Main 6

Range of Product Modicon Networking
Product or Component Type Ethernet TCP/IP managed switch
Communication Port Protocol Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, OPC UA, IEC 61850 MMS Server
Port Ethernet 100BASE-FX - 1 fiber optic, 10/100BASE-TX - 4 copper cable
Maximum number of switches in cascade Unlimited
Cybersecurity Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner, TACACS+

Complementary 26

Integrated connection type Duplex SC fiber optic, Shielded RJ45 copper cable
Transmission support medium Multimode optical fiber fiber optic, Twisted shielded pairs cable CAT 5E copper cable
Maximum cable distance between devices 328.08 ft (100 m) copper cable
Optic fiber length 2.5 mile (4 km) 62.5/125 µm, 3.1 mile (5 km) 50/125 µm
Attenuation 0…11 dB 62.2/125 µm), 0…8 dB 50/125 µm)
Ethernet service Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Communication Service TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection
Diagnostics run time Signal contact, Self test, MAC notification, RSPAN, SFLOW
Maximum number of switches in a ring 50
Redundancy HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP, Redundant coupling protocol, MSTP
[Us] rated supply voltage 12...24 V
Supply voltage limits 9.6…32 V DC SELV
Power Consumption in W 6 W
Electrical connection Removable connector 6 ways power supply
Mounting Support 35 mm symmetrical DIN rail
Marking CE, CULus, RCM
Function Available Security status, Alarms (Traps), System information, Report
Local signalling 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
Alarm output 1 voltfree contact 1 A
Alarm function Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed
Ethernet cabling system TF switches
MTBF reliability 3577779 H
Width 2.2 in (57 mm)
Height 5.6 in (142.8 mm)
Depth 4.6 in (117.6 mm)
Net Weight 0.93 lb(US) (0.42 kg)

Environment 6

Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Relative Humidity 1…95 % non-condensing
IP Degree of Protection IP30
Directives 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Standards UL 61010-2-201, EN/IEC 61131-2, IEC 61850-3, IEC 62443-4-2, EN 50121-4
Product certifications CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex
Show all 51 specifications ↓ Show less ↑13 more values in Identification, Contractual warranty, Logistics.

Identification 7

Part number MCSESM053F1CU0
Brand Schneider Electric
Condition New, factory sealed
Source Schneider Electric and its authorised distributors
Warranty Manufacturer warranty
Lifecycle status Active, in production
EAN 3606481463265

Contractual warranty 1

Warranty (in months) 18

Logistics 5

Country of origin DE
Shipping weight 0.42 kg
Ships from Türkiye
Dispatch —
Stock On request

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for MCSESM053F1CU0

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • UL
  • CSA
  • CE
  • UKCA
  • CCC
  • EAC
  • UL 61010-2-201
  • EN/IEC 61131-2
  • IEC 61850-3
  • IEC 62443-4-2
  • EN 50121-4
Quick answers

Questions about the MCSESM053F1CU0

What is the HS code of MCSESM053F1CU0 for customs?

The tariff (HS) code on file for MCSESM053F1CU0 is 851762.

What is the EAN of MCSESM053F1CU0?

The EAN (GTIN) of MCSESM053F1CU0 is 3606481463265.

Where does MCSESM053F1CU0 ship from, and how fast?

MCSESM053F1CU0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
